| Categories | Thermal Graphite Sheet |
|---|---|
| Brand Name: | Ziitek |
| Model Number: | TIRTM606-10 |
| Certification: | RoHs |
| Place of Origin: | China |
| MOQ: | 1000PCS |
| Delivery Time: | 2-3 work days |
| Packaging Details: | 1000pcs/bag |
| Materials: | Natural graphite |
| Color: | Black |
| Hardness: | 2.2 g/cc |
| Thermal conductivity (Z Axis Direction): | 10.0W/m-K |
| Thermal conductivity (X-Y Axis Direction): | 150W/m-K |
| Operating Temperature: | -200℃ ～300℃ |
| Company Info. |
| Dongguan Ziitek Electronic Materials & Technology Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

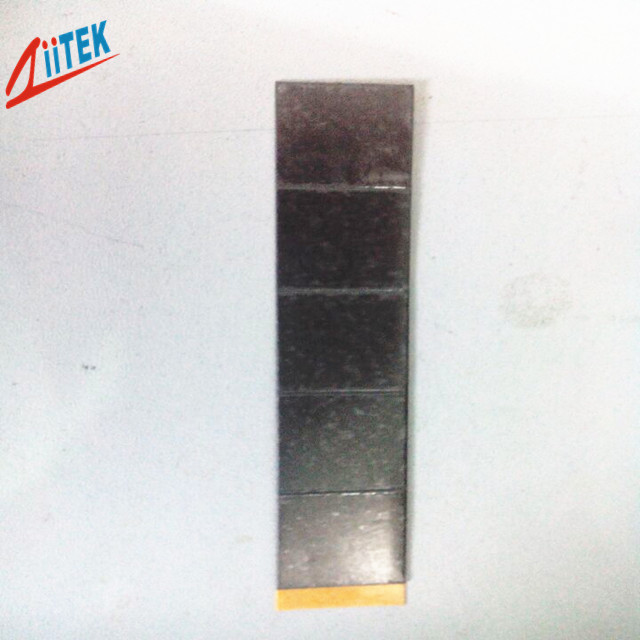

High Heat Insulation Materials Thermal Graphite Sheet 2.2 g/cc Hardness
The TIRTM606-10 Series products are high-performance and heat-conductive interface materials with the reasonable prices. They can be used in applications where no requirement for electric insulation is specified. The unique grain orientation and plate structure enable these products to adapt to different contact surfaces closely, and thus the maximized heat conduction function is attained.
Features
> High thermal conductive of 10 W/mK
> Low thermal resistance
Applications
> Power conversion equipment
> Power supplies
> Large telecommunications switching hardware
> Notebook computers
| Typical Properties of TIR™606-10 Series | |||||
| Product Name | TIRTM606-10 | Test Method | |||
| Materials | Natural graphite | ||||
| Color | Black | Visual | |||
| Composite Thickness (in/mm) | 0.006"(0.152mm) | ||||
| Thickness Tolerance | +/- 10% | ||||
| Density | 2.2 g/cc | ||||
| Hardness | 85 Shore A | ASTM D2240 | |||
| Thermal conductivity (Z Axis Direction) | 10.0W/m-K | ASTM D5470 | |||
| Thermal conductivity (X-Y Axis Direction) | 150W/m-K | ASTM D5470 | |||
| Tensile Strength | 715psi (4900kpa) | ASTM D5470 | |||
| Thermal Impedance ( @100psi) | 0.042 in²℃/W | ASTM D5470 | |||
| Operating Temperature | -200℃ ～300℃ | ||||
Standard Thicknesses
0.004"(0.102mm) 0.005"(0.127mm) 0.006"(0.152mm)
0.008"(0.203mm) 0.010"(0.254mm) 0.012"(0.304mm)
0.020"(0.508mm)
Consult the factory alternate thickness.
Standard Sizes
18" x 18"(457mm x 457mm) 18" x 300'(457mm x 91.4M)
Individual die cut shapes can be supplied.
Peressure Sensitive Adhesive
Request adhesive on one side with "A1" suffix.
Request adhesive on doule side with "A2" suffix.
Insulation
Request plastic on one side with "P1" suffix
