| Categories | LED Street Lighting |
|---|---|
| Brand Name: | LEDYOND |
| Model Number: | LY-ST20150-XX |
| Certification: | CE RoHS |
| Place of Origin: | Shenzhen, China |
| MOQ: | 2 |
| Price: | Negotiable |
| Payment Terms: | T/T, Paypal |
| Supply Ability: | 30,000 pcs/month |
| Delivery Time: | 7-15 work days |
| Packaging Details: | Standard export carton package |
| Item: | LED Street Light 150W |
| LED source: | Lumileds 5050 Chips |
| Watt: | 150W (100,120 available) |
| Luminous: | 24000lm |
| Driver: | Meanwell driver |
| Beam angle: | 150*70 degree |
| CCT: | 2700-6500K |
| Lifetime: | >50000 hours |

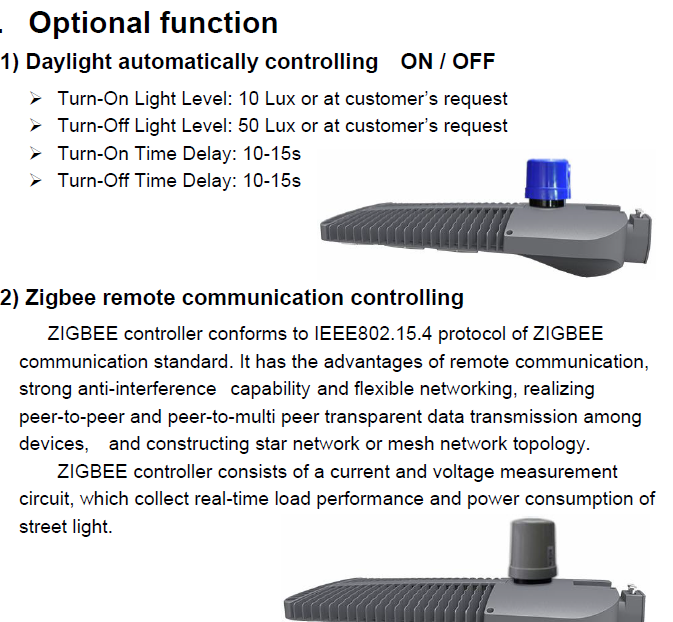

| Functions: | Dimmable,Daylight control,motion sensor |
| IP Rated: | IP66 |

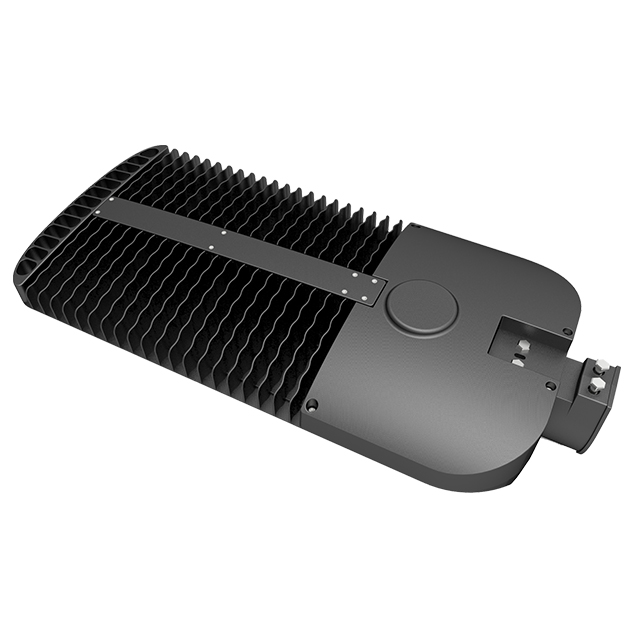

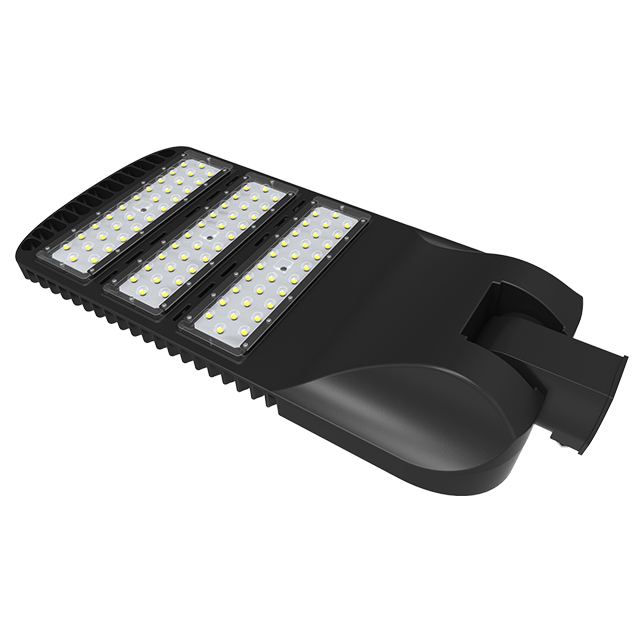

Factory Supply Led Modular Street Light 150w High Lumens available for Photocell Sensor
1. Use famous Lumileds chip inside, high efficiency.
2. Use integrated shell optic lens, high transmittance and perfect lighting distribution.
3. Easy to installation and maintance.
4. No UV or RF interference, No mercury or lead.
5.Light body is made of good quality aluminum alloy with painting or anodic treatment on surface, exiguity and unique design, excellent heat dissipation
6. High quality, high efficiency, high CRI & luminous flux.
7. long life span>50000hrs.
8. High brightness, low consumption, green for environment.
9. Save 80% more energy compared with traditional lighting fixtures.
Part Number | LY-ST20150-XX |
Power | 150W |
Luminous flux | 24000-25000lm |
Light efficiency | 160lm/W |
Light source | Lumileds 5050 |
Material | High quality die-casting aluminum alloy |
Light degradation rate | 25000h ≤ 30% |
Color rendering index | Ra≥80 |
Power Factor | PF≥0.98 |
Brand Of Driver | Meanwell Driver |
Life time | ≥50000hours |
Color temperature | 2700K-6500K |
Working temperature | -30~+50°C |
Input Voltage | AC90-260V |
Beam angle | 150*65 degree |
IP grade | IP66 waterproof |
Product Brand | LEYOND(OEM.ODM available) |
Warranty | 5 years |
Certificate | ROHS, EMC, LVD,CB |
Application | Parking lot, garden, courtyard, road, outdoor, etc. |
Operation and Storage Condition:
• Operation Ambient Temperature -30 to +60°C, Relative Humidity 20~90%
• Input Voltage 90-305V AC, 50/60Hz
• Storage Ambient Temperature -40 to +85°C, Relative Humidity 5~95%
• Mounting Height : Suitable for 3-8 M height
For More Information, Pls Feel Free To Contact Us
FAQ:
1. How to choose LED light source?
A: Lumens(LM), light efficiency (LM/W), Life span (hrs) are very
important factors when
choosing LED light source. The higher, the better. Besides, brand
of LED chip, LED base and
other materials will influence the product reliability.
2. Why choose Leyond Lighting?
A: Client-oriented, technology first, hornest operation is our
business philosophy. Leyond always treat the clients benefit as the
most important thing. So, we use the top brand material to produce
high quality product.
3. How to place an order with your company?
A: Contact our sales representatives by email, skype or making a
call, we will soon send you confirm with you for your detailed
requirements. Then we send you PI for your approval and payment.
You can choose wire transfer, PayPal, west union to send us
payment.
4. How long will the warranty period last?
A: We usually offer 5 years free warranty. More detailed warranty
policy, please contact our sales representatives.
|
