| Categories | Vibration Testing Machine |
|---|---|
| Brand Name: | LABTONE |
| Model Number: | EV203 |
| Certification: | CE / ISO |
| Place of Origin: | Guangdong, China |
| MOQ: | 1 Set |
| Price: | Negotiable |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 15 Sets / Month |
| Delivery Time: | 45 Working Days |
| Packaging Details: | Plywood Case with Vacuum Packing |
| Rated Sine Force: | 300 kg |
| Max. Poyload: | 120 kg |
| Max. Displacement: | 38 mm |
| Power Supply: | 3-phase AC 380V / 50Hz |
| Shaker Model: | VG300/40 |
| Shaker Diameter: | Dia 150mm |
| Company Info. |
| Labtone Test Equipment Co., Ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
Computer controlled Sinusoidal Vibration Test Machine With Standard of IEC 60068
Specifications: EV103-EV220
| Model | EV103 | EV203 | EV106 | EV206 | EV210 | EV220 |
| Vibration Generator | VG300/25 | VG300/40 | VG600/25 | VG300/50 | VG1000/50 | VG2000/50 |
| Frequency(Hz) | 2-4000 | 2-2500 | 2-3000 | 2-3000 | 2-3000 | 2-2500 |
| Max Exiting Force(kg.f) | 300 | 300 | 600 | 600 | 1000 | 2000 |
| Max. Displacement (mmp-p) | 25 | 38 | 25 | 50 | 50 | 50 |
| Max. Acceleration(g) | 100 | 100 | 100 | 100 | 100 | 100 |
| Max. Velocity(cm/s) | 200 | 120 | 180 | 200 | 200 | 200 |
| Payload(kg) | 110 | 120 | 200 | 200 | 300 | 400 |
| Armature Mass(kg) | 3 | 3 | 6 | 6 | 10 | 20 |
| Armature Diameter(mm) | φ150 | φ150 | φ200 | φ200 | φ240 | φ320 |
| Cooling Method | Forced Air Cooling | |||||
| Vibration Generator Weight(kg) | 460 | 460 | 720 | 920 | 1100 | 1600 |
| Vibration Generator Dimension L*W*H(MM) | 750*560*670 | 750*555*670 | 800*600*710 | 800*600*710 | 845*685*840 | 1200*870*1100 |
| Power Amplifier | Amp3k | Amp3k | Amp6k | Amp6k | Amp12k | Amp22k |
| Cooling Method | Forced Air Cooling | |||||
| Power Amplifier Weight(kg) | 250 | 250 | 320 | 320 | 350 | 500 |
| Power Amplifier Dimension L*W*H(MM) | 800*550*1250 | 800*550*1250 | 800*550*1250 | 800*550*1250 | 800*550*1520 | 800*550*1520 |
| Utility Requirements | 3-phase AC380V ±10% 50Hz | |||||
| Aggregate Capacity(KW) | 8 | 9 | 18 | 20 | 25 | 35 |
Features:
Product Application
Vibration test is a process of exciting or shocking some part or device to observe its reaction in real environment. Vibration test is widely applied in many fields, ranging from circuit board, airplane, ship, rocket, missile, automobile, household appliance and other industrial products.Labtone can offer you the whole vibration and testing proposal, and provide you with the quality certificates of products according to national and international standards, including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM standards.

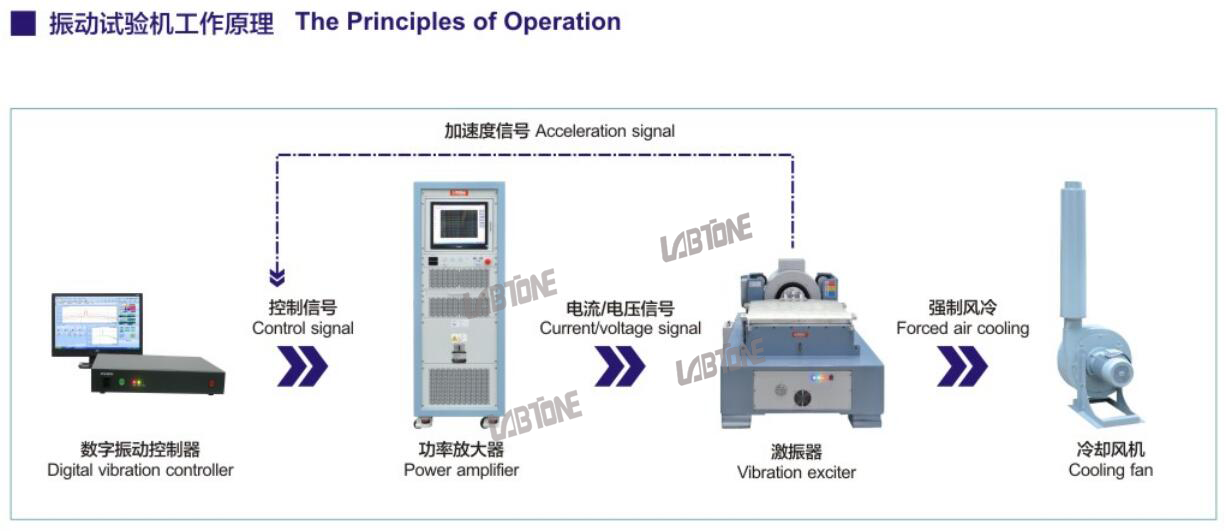

Working Principle:
Presales:
a.Technical consultation: test method, laboratory planning and suggestion.
b.Equipment selection: selection scheme, FAQ.
c.Product testing scheme.
In-Sales:
a.Customer communication and progress report.
b.Guidance for pre-installation preparation, equipment commissioning and test run
c.Calibration (when Third Party’s verification is required)
After-Sales:
a.Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
b.Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
c.Technical support: special paid services are provided according to customer’s needs.
Company Profile:
Labtone Test Equipment Co., Ltd. is a +15 year China manufacture of reliable, cost-effective equipments. Our superior products mainly include: Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.
Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument and industrial machinery applications. Our experience and commitment to new product development has resulted in products that are easy to use, accurate and designed for decades of service.
Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literatures, manuals and guides as well as having qualified staffs and experts to solve your problems.
We sincerely invite you to visit our factory.

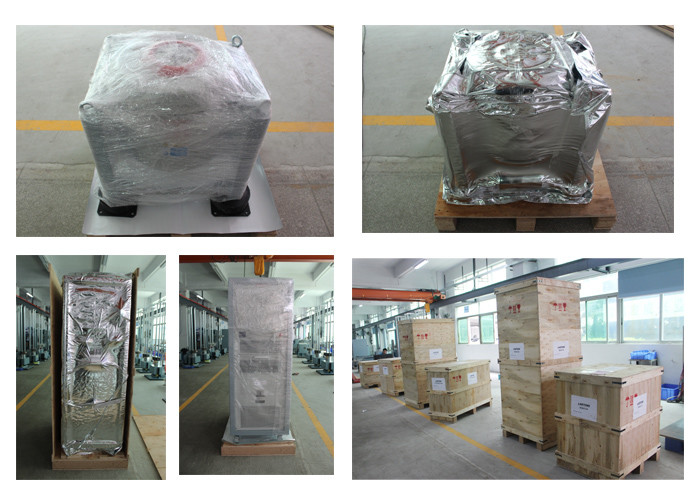

Packaging:

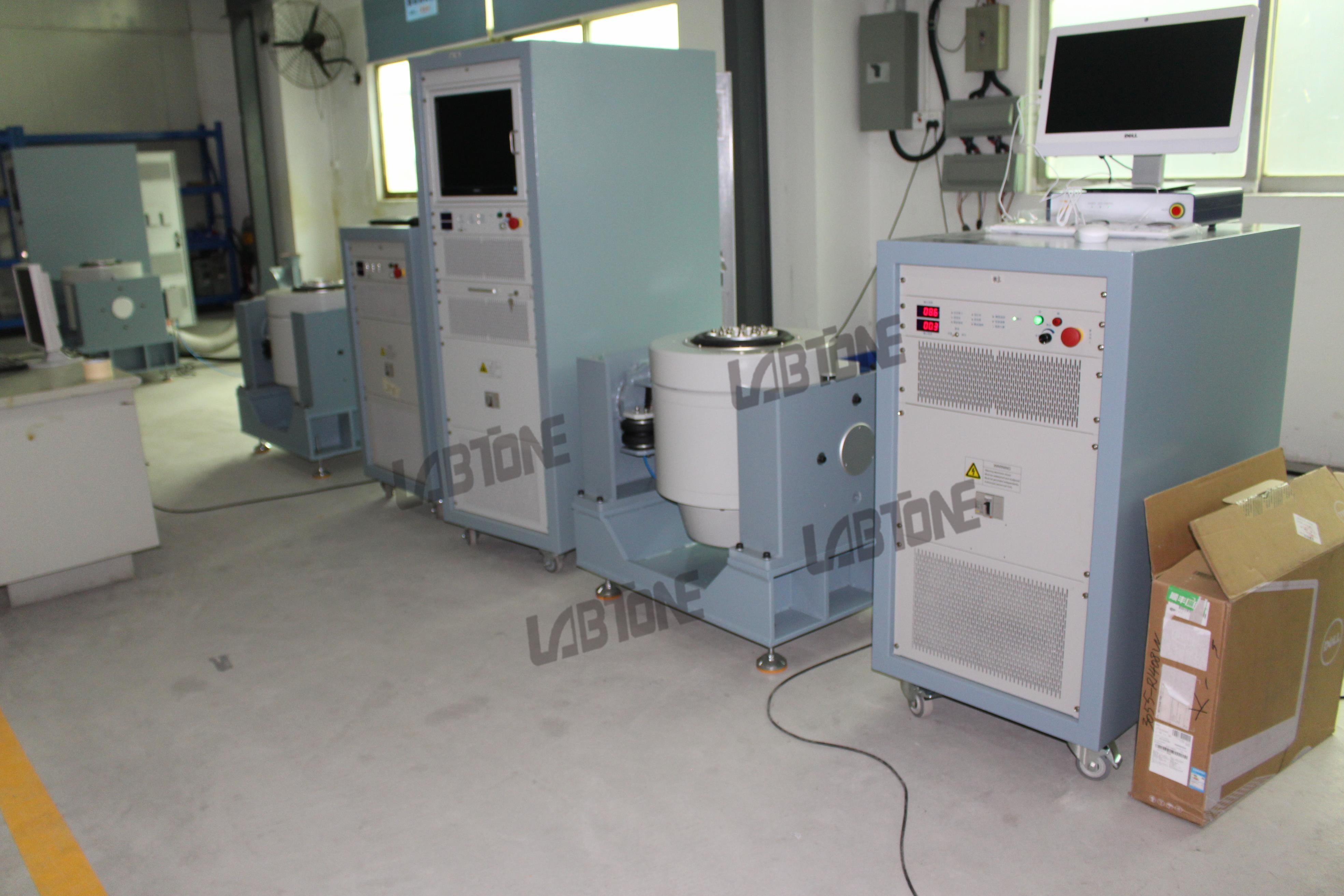

Workshop:
|
