Brand Name: | CNSME |
Model Number: | SG/100D |
Certification: | ISO/CE |
Place of Origin: | CHINA |
MOQ: | 1 Set |
Price: | Negotiable |
Payment Terms: | T/T, Western Union |
Supply Ability: | 30 Sets per Month |
Delivery Time: | 20 Working Days |
Packaging Details: | Plywood Crate |
Material: | Ni_Hard and High Chromium |
Theory: | Centrifugal |
Use: | Sand & Gravel |
Structure: | Single Casing |
Hardness: | HRC 58-62 |
Model: | SG/100D |
Gravel Pumps Type SG With Single Casing And Ni Hard Materials
Introduction:
SME Type SG pump is centrifugal, horizontal, solid body, designed
for pumping gravel, sand material has the characteristics of high
pressure. Running part is made of highly wear-resistant alloy of
chrome. The outlet may be set at any angle. The pump is easy to
install, has a good performance, a good suction head, and has a
wear-resistant characteristics.
This pump is designed for pumping gravel and water and highly
abrasive mixes with more pollution, which can not be pumped by
conventional pumps.
Designed for continuous operation. They are suitable for pumping
sludge with mining explosives with impurities, etc.
Specifications:
Model | SG-100D |
Outlet | 4-inch |
Capacity | 36-252m3/h |
TDH | 10-50m |
Rated Motor Power | 60Kw |
Speed | 600-1400r/min |
NPSH | 2.5-3.5m |
>

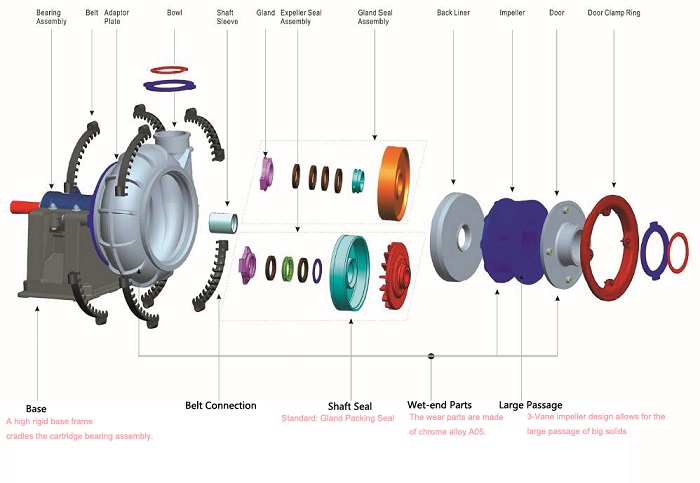

Explosive View of SG Gravel Pumps:
Standard Material of Wet-end Parts: Hi-Chrome Alloy A05
Typical Applications:
Sand and Gravel
Sand Excavation
Hydraulic Mining
Cyclone Feeds
Slag Granulation
Tunnelling

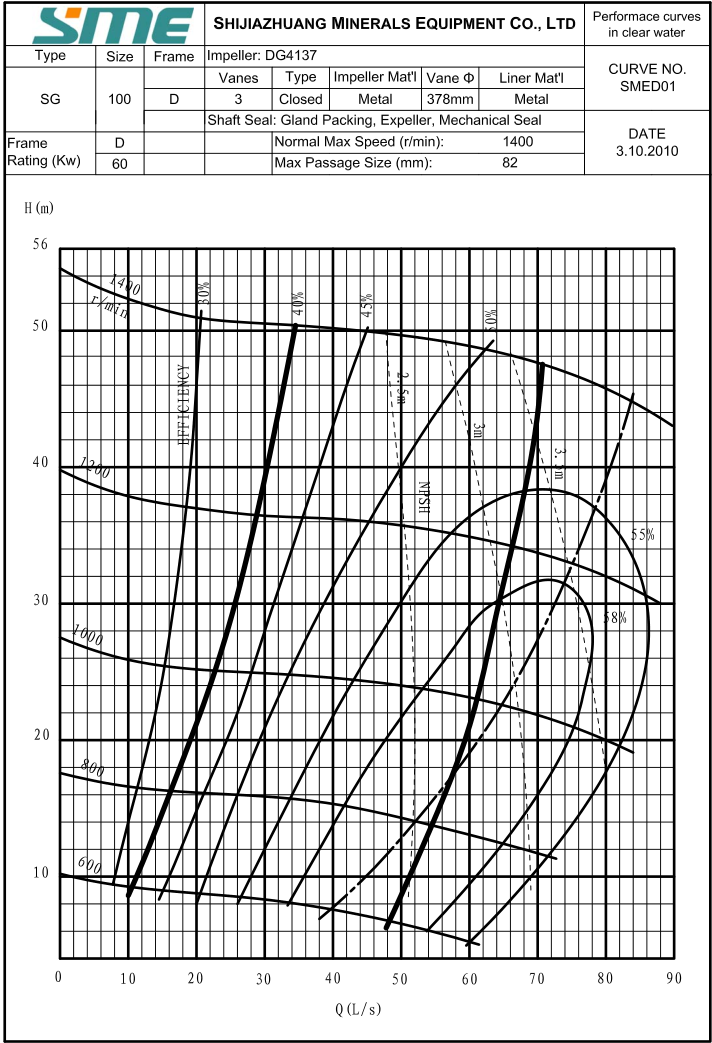

Performance Curve:
![]() |
