High Precision M8X30 Hex Head Bolt , Anti Rust DIN 933 Hex Bolts And Nuts

Categories Hex Head Bolt
Brand Name: Summery
Model Number: DIN933
Certification: ISO4017
Place of Origin: Shanghai
MOQ: Negotiable
Price: Negotiation
Payment Terms: D/A, L/C, T/T, Western Union
Supply Ability: 10000000
Delivery Time: 7-10 Days
Packaging Details: Poly bags
Product Name: DIN933 hex head bolt
Material: alloy steel
Size: M8x30
Tolerance: 6g
Surface: Dacrome
Product Grade: A
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

High Precision M8X30 Hex Head Bolt , Anti Rust DIN 933 Hex Bolts And Nuts

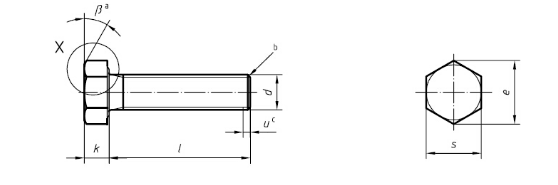

Hexagon head screws — Product grades A

ISO4017 DIN933 bolts


This International Standard specifies the characteristics of hexagon head screws with threads from M1,6


up to and including M64, of product grade A for threads M1,6 to M24 and nominal lengths up to and


including 10 d or 150 mm,whichever is shorter, and product grade B for threads over M24 or nominal


lengths over 10 d or 150 mm, whichever is shorter.


NOTE: This type of product is the same as that covered by ISO 4014 DIN931 with the exception of threading up to head and nominal length up to and including 200 mm as popular lengths.


We have good sense of customer priority.Our experience and expertise allows our team to fully assess the technical and commercial viability of products.We place great on quality and reliability,and it has earned us enormous respect and admiration within automobile,railtransit,new energy,electronics,mechanical,industrial robot and high-speed rail,etc.





Mechanical and physical peroperties of bolts,screws and studs
Mechanical and physical peropertiesProperty class
8.810.912.9
d≦16 mmd﹥16 mm
Minimum tensile strength (N/mm2)min80083010401220
Vickers hardness (HV)min250255320385
max320335380435
Brinell hardness (HB)min238242304366
max304318361414
Rockwell hardness (HRC)min22233239
max32343944
