| Categories | LED Underwater Spot Light |
|---|---|
| Brand Name: | COMI LIGHTING |
| Model Number: | B5A0158, B5A0106 (RGB) |
| Certification: | CE, ROHS |
| Place of Origin: | Guangdong China |
| MOQ: | 20pcs |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 100000pcs per month |
| Delivery Time: | 3 ~ 18days |
| Packaging Details: | Inner box and outer carton |
| Item Type: | 3W LED underwater Spotlight |
| Input Voltage: | 24VDC |
| Power (W): | 3W~3.5W |
| LED brand: | Osram, Cree |
| LED quantity: | 1piece 3W LED |
| Luminous Flux: | 180LM |
| Material: | 316 Stainless Steel |
| Color: | Single Color or RGB 3-in-1 Full color |
| IP Rating and IK class: | IP68 and IK06 |
| Warranty: | 2 Years |
| Company Info. |
| COMI LIGHTING LIMITED |
| Verified Supplier |
| View Contact Details |
| Product List |
B5A0158, B5A0106 (RGB) 24VDC 1piece 3W Single or RGB Color IP68 Small Type Underwater LED Spot Light with bracket/support made of 316 Stainless Steel
Features and Benefits:
1. 1pcs 2W Osram or Cree LED as light source.
2. The SUS 316 stainless steel Bracket can be adjustable in vertical direction.
3. The fitting made of stainless steel with slow heat conducting must be installed underwater, and less than 1meter in depth.
4. Dimming options include 0-10 V , PWM protocols, DALI and etc.
5. Suitable as underwater Flood spot light for fountains, pools, ponds, water gardens etc. for atmospheric or underwater lighting.
Material Specification:
| Front cover&Housing | Molding shaped sus 316# stainless steel |
| Bracket | sus 316# stainless steel |
| Glass | Clear tempered glass. T=7mm |

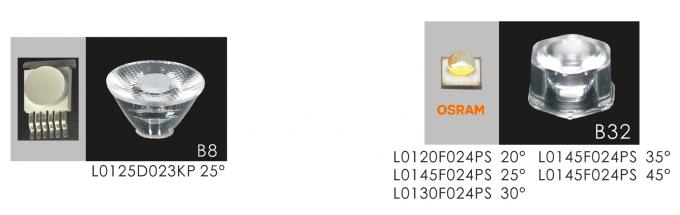

| Optics Lens | One-unit optical lens, efficiency≥85% |
| Cable gland | IP-68 PG-11 copper and nickel coated |
| LED | TO type power LED |
| PCB | Excellent heat conductivity aluminum, coefficient of heat Conductivity≥3.0w/mk |
| Driver | Constant current output |
| Application environment | Temperature of water between -20℃~40℃ less than 1 meter depth. |
| Power cable | H07RN-F 2X1.0mm² L=3m (for Single color) H07RN-F 4X0.75mm² L=3m (for RGB) |
Technical Information:
| Item No. | Light Source | Lens | Beam Angle | Input Voltage (V) | Typical Operating Current(mA) | Typical Power (W) | Typical Luminance (lm) | IK Rate |
| B5A0158 | 1×2W | B32 | 30° | 24VDC | 125 | 3 | Cool white=174 Warm white=139 | 06 |
| B5A0106 | 1×3W 3-in-1 RGB | B32 | 25° | 24VDC | R=38 G=53 B=54 | 3.5 | R=17 G=30 B=9 | 06 |
Applications:
LED Underwater light is the perfect solution for decorative illumination water landscapes and illumination. With an IP68 waterproof grade, it is perfect for Swimming pool, ponds, fountain, aquariums, recreational facilities, decoration underwater, park lake, water stage and other outdoor place for atmosphere decoration.
Warning:
This high-power LED housing is all stainless steel, must be
installed underwater
staying cold to prevent from burning too hot.

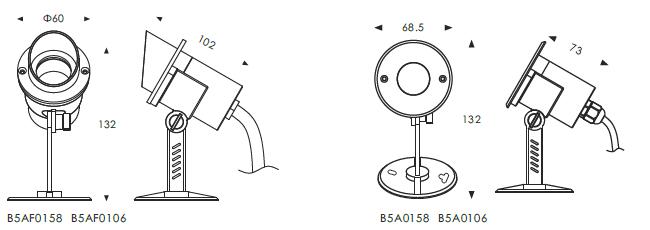

Dimensional Drawing(Unit:mm)
Warning:
This high-power LED housing is all stainless steel, must be
installed underwater
staying cold to prevent from burning too hot.
|
