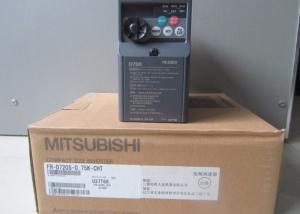

Mitsubishi Electric FR-D720S-1.5K-CHT Variable Frequency Inverter 1.5kw 220V
Sepecifications
| Model: | FR-D720S-1.5K-CHT |
| Power: | 1.5KW |
| Voltage: | 220V |
| Brand | Mitsubishi Electric |
| Country of Origin | CN |
FR-D700 General Specifications
| Control Specifications | Control Method | Soft-PWM control/high carrier frequency PWM control (V/F control, General-purpose magnetic flux vector control, Optimum excitation control can be selected) | ||
| Output Frequency Range | 0.2 to 400Hz | |||
| Frequency Setting Resolution | Analog Input | 0.06Hz/60Hz (terminal2, 4: 0 to 10V/10bit) 0.12Hz/60Hz (terminal2, 4: 0 to 5V/9bit) 0.06Hz/60Hz (terminal4: 0 to 20mA/10bit) | ||
| Digital Input | 0.01Hz | |||
| Frequency Accuracy | Analog Input | Within ±1% of the max. output frequency (25°C ±10°C) | ||
| Digital Input | Within 0.01% of the set output frequency | |||
| Voltage/Frequency Characteristics | Base frequency can be set from 0 to 400Hz. Constant torque/variable torque pattern can be selected | |||
| Starting Torque | 150% or more (at 1Hz) when General-purpose magnetic flux vector control and slip compensation is set | |||
| Torque Boost | Manual torque boost | |||
| Accel. /Decel. Time Setting | 0.01 to 3600s (acceleration and deceleration can be set individually), linear or S-pattern acceleration/deceleration mode can be selected. | |||
| Braking Torque | Regeneration (*1) | FR-D720-008 and 014, FR-D720S-008 and 014, FR-D710W-008 and 014 ... 150%, FR-D720-025 and 042, FR-D740-012 and 022, FR-D720S-025 and 042, FR-D710W-025 and 042 ... 100%, FR-D720-070, FR-D740-036, FR-D720S-070 ... 50%, FR-D720-100 or more, FR-D740-050 or more, FR-D720S-100 ... 20% | ||
| DC Injection Brake | Operation frequency (0 to 120Hz), operation time (0 to 10s), operation voltage (0 to 30%) variable | |||
| Stall Prevention Operation Level | Operation current level can be set (0 to 200% adjustable), whether to use the function or not can be selected | |||
Other Similar Models:
FR-D740-0.4K-CHT
FR-D740-0.75K-CHT
FR-D740-2.2K-CHT
FR-D740-1.5K-CHT
FR-D740-3.7K-CHT
FR-D740-5.5K-CHT
FR-D740-7.5K-CHT
Liability:
WTL is not liable for any personal injury or property damage
resulting from the use of this equipment. It is
buyer's responsibility as to the safe handling & operation of this
equipment and to verify equipment is
compliance to their machinery.
