Digital Laptop Ultrasound Scan Machine Convex Array Probe 10.4 Inch Screen

Categories	Ultrasound Scanner (Human)
Brand Name:	RONSEDA
Model Number:	RSD B500
Certification:	CE and ISO
Place of Origin:	China
MOQ:	1 Set
Price:	Usd 3000 / Set
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	1000 Set / Month
Delivery Time:	5-10 Working Days
Packaging Details:	Box
Parameter:	Ultrasound
Weight:	2 KG
Dimension:	440mm220mm430mm
Color:	Grey
Display:	10.4 Inch

Contact Now

Add to Cart

Company Info.

XINMEI MEDITECH （HUIZHOU) CO LTD

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

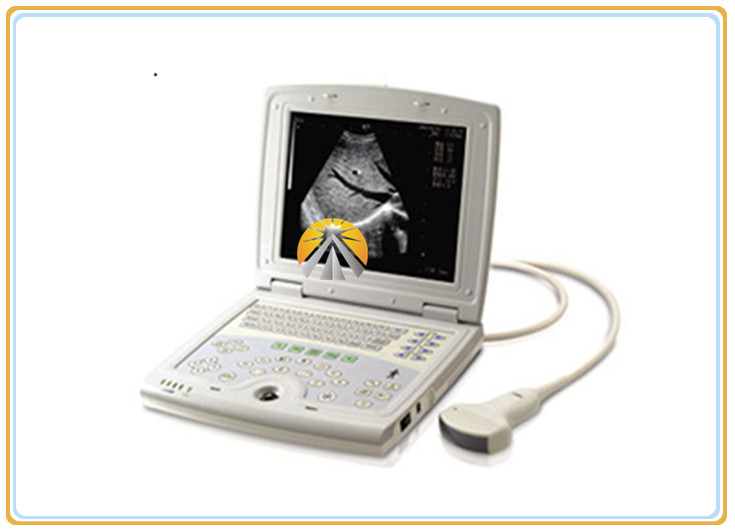

Digital Laptop Ultrasound Scan Machine Convex Array Probe 10.4 Inch Screen

10.4 Inch Digital Laptop Ultrasound Scanner Convex Array Probe

SPECIFICATIONS:

1. Probe: Electronic convex array, linear array, transvaginal and microconvex probe.

2. Gray Scale:256

3. LCD Display: 10.4" crystal

4. Power Supply:100-240V 50-60Hz, 70VA

5. Rating 12V 3.0A

6. Main Unit Size: approx. 290*245*50mm(L*W*H)

P/N:

RSD B500

FEATURES:

1. Display Mode: B, B/B, 4B,B/M, M

2. M scanning speed: 1s,2s,3s,4s,5s,6s,7s,8s

3. Zoom: *0.8,*1.0,*1.2,*1.5,*1.6,*2.0,*2.4,*3.0

4. Depth Enhancement/ Pan Function

5. Local Zooming

6. Adjustment and display of near field,far field,total gain and dynamic range

7. Single-point, multi-point focusing

8. Frequency conversion

9. Angle Change

10. Frame Correlation

11. Gamma Correction, edge enhancement for image post-processing

12. Image Freeze/unfreeze

13. Vertical, horizontal flip and Black/white conversion

14. Psuedo Color Display

15. Patient information, image annotation and auto time display

16. Body Marks: 64

17. Measurement of distance, circumstance, area,volume,slope,heart rate, and cycle

18. Obstetric Package including 10 tables, automatic calculation of EDD and Fetus Weight

19. Puncture Guide

20. Engery Saving

21. 100 frames image storage

22. 256 frames cine loop

23. OB Report

24. PAL-NTSC Conversion

FUNCTION:

1) Main unit 1pc

2) 2.5/3.5/5.0Mhz Convex Array Probe 1pc

3) Probe Connector 1pc

4) Pseudo Color System 1set

5) Internal Rechargeable Battery 2pc

6) Power Adapter 1pc

7) Operation Manual (English) 1pc

OPTIONAL PROBES:

1) 2.0/2.5/3.5/5.0Mhz Convex Array Probe
2) 5.0/6.5/7.5/9.0Mhz Linear Array Probe
3) 4.0/5.0/6.5/7.5Mhz Micro-convex Array Probe
4) 4.0/5.0/6.5/7.5Mhz Transvaginal Probe

PACKING:

Carton Size:440mm*220mm*430mm

Volume:0.042CBM

Net Weight:2.25kg/5lbs

Gross Weight:6.75kg/15lbs

Volumetric Weight:8.5kg/18.7lbs

WARRANTY:

One years after receiving item.

PICTURES:
