Switch Components Textured Powder Coat RAL 1007 Color ROHS CE Approval

Categories Textured Powder Coat
Brand Name: TOPO
Model Number: TPC-RAL1007
Certification: CE, BV, ROHS
Place of Origin: Ukraine
MOQ: Negotiable
Price: Negotiable
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 400 T/Month
Delivery Time: 7 days
Packaging Details: Two-ply PVC bag inside with carton box, net weight 20/25kg
Color: daffodil yellow
Substrat: Metal
Feature: Green
Type: thermosetting
Brand: TOPO
CAS No.: None
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Switch Components Textured Powder Coat RAL 1007 Color ROHS CE Approval

RAL1007 daffodil yellow antique Textured Powder Coating for switch components

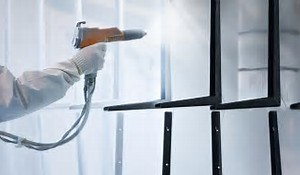

One of the other really cool things about powder coating is the variety of texture finishes that can be applied to the object being treated by our specialists. You’ll be pleasantly surprised at the different textured options available to you including a sand finish or perhaps you would rather put a non-slip texture on your item.


Moreover, there are several kinds of art textured finishes to choose from including hammer tone, wrinkle grain, sand grain, wood grain, orange-peel grain, and others. If you have something else in mind, consult with one of our specialists to see if we can put together a custom order to your liking.


All these finishes are offered in both weather resistant and non-weather resistant grades providing some added functionality for your part or object.


Features and Benefits:

  • Formulated to create a very unique look in one step
  • Deep orange peel texture that is used to overcome surface defects and welded areas
  • Consumers can apply at a broad film range, using multiple style guns with a variety of gun settings
  • Can be successfully used for large parts and small parts
  • Reclamation friendly

Ideal Applications:

  • Fitness equipment
  • Lawn mower decks
  • Shelving
  • Cabinets
  • Switch gears
  • Outdoor furniture
  • Playground equipment
ItemIndex
ColorPer standard panel &within the range negotiated by custom/supplier
Appearance(visual)Smooth, slight orange peeled
Gloss(60°gauge head)

High gloss type≥85% Semi gloss type:51-84%

Low gloss type:50-15% Matt type:<14%

Cured film thickness60-80μm
Impact resistance(drop hammer)High gloss 50kg.cm pass ( both direct and reverse). Semi-, low gloss and matt: pass (direct), per custom’s request(reverse).
Pencil hardness2H without scratch
Adhesion(cross cut test)1mm 6x6 0 grade
Bending test(tapering spindle)3mm pass
Salt spray test500h <1 grade
Humid heat resistance500h <1 grade
Cupping test≥6mm

Inspection Item


Test Standard or Method


Test Indicator
Type AType B,C
Impact resistanceISO6272GB/T1732-199340cm50cm
Cupping testISO1520GB/T9753-19885mm8mm
Adhesion(Planning grid method)ISO2409GB/T9286-1998Grade 0
CrookISO1519GB/T6742-19863mm2mm
Pencil hardnessASTMD3363GB/T6739-19961H-2H
Salt testISO7253GB/T1771-1991> 500 hours
Heat testISO6270GB/T1740-1979> 1000 hours
Heat resistance100°C/24 hours (white)Paul Light character (best)

Remark

Stainless steel with film thickness 6mm as sample
