Ear Nose Tthroat ENT Examination Unit , Clinic Modern Medical Instruments

Categories ENT Treatment Unit
Brand Name: STATEMED
Model Number: STT9-ETU3
Certification: CE, ISO
Place of Origin: CHINA
MOQ: 1 SET
Price: Competitive
Payment Terms: T/T, L/C, Western Union
Delivery Time: 10 working days after payment received
Packaging Details: standard export wooden case
Product Name: Ear Nose Tthroat ENT Examination Unit
LED projection lamp: ≥8 W ; illuminate≥1×104
Sprayer: Pressure: 0.1MPa~0.15MPa (adjustable)
Suction device: ≥0.07MPa (adjustable)
Desk top: Marble
Usage: Ear Nose Tthroat Examination
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

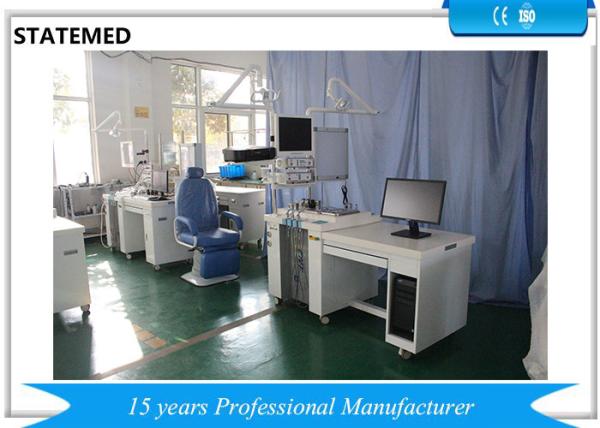

Ear Nose Tthroat ENT Examination Unit , Clinic Modern Medical Instruments

Ear Nose Tthroat ENT Examination Unit , Clinic Modern Medical Instruments


Standard Equipment
Desk top1pc
Compressor pump1pc
Suction vacuum pump1pc
Main suction apparatus2pcs
Larynhoscope preheater2pcs(Time is adjustable)
projection lamp (LED)2pcs
Computer1pc
Image processing system software1pc
Printer1pc
Cold light source (LED)1pc
Monitor (LED)1pc
CCD camera1pc
X-ray viewer (LED)1pc(optional LED)
Endoscope3pcs
Sprayer6pcs(curved 2pcs,straight 4 pcs)
Suction device2pcs
Tray2pcs
Cotton can2pcs
Liquid medicine bottle6pcs
Control panel1pc
Technical Parameter
Desk topMarble
Positive pressure2.5kg/cm2 (Optional imported parts)
Negative pressure740mmHg(max) (Optional imported parts)
Main suction apparatus2500CC
Larynhoscope preheater450W(adaptive control system,adjustable time)
LED projection lamp≥8 W ; illuminate≥1×104
SprayerPressure: 0.1MPa~0.15MPa (adjustable)
Suction device≥0.07MPa (adjustable)
Temperature10℃~35℃
Voltage220V
Frequency50/60HZ
Optional:
Endoscope
Endoscope imaging system
Imaging management system
ENT operating chair
Doctor chair
Cold light source
Dimension
1655mm*730mm*885mm

Regular problems solving chart


ProblemsProblems causeSolving methods
1. Indicator light off; The system doesn’t work.Power is cut off

1. Check the power supply

2. Check the electrical wire

3. Check the fuse

4. According situation to repair or replacement

2. Power supply works well; positive pressure and negative pressure can’t work.

1. Pump doesn’t work

2. Gas is leak

1. Check the positive pressure, negative pressure and gas pump

2. Check the pipe

3. Check the pressure adjuster

4. According situation to repair or replacement
