PLC Control Perforated Metal Mesh Machine For Round / Square / Triangle Hole

Categories Perforated Metal Mesh Machine
Brand Name: DIAOZHUO
Model Number: DZ-CKW250 DZ-CKW2000 DZ-CKW1500
Certification: CE ISO9001
Place of Origin: HEBEI, CHINA
MOQ: 1set
Payment Terms: L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 10 sets per month
Delivery Time: 20-30 days
Packaging Details: with water-proof film covered or at customer's request
Price: variable
engineer: available to service machinery overseas
speed: 220 mesh/min
material: steel cast
the precision of hole-punching: 0.1mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

PLC Control Perforated Metal Mesh Machine For Round / Square / Triangle Hole

PLC control perforated metal mesh punching press sheet machine


Packaging Details

1. The bracket and auxiliary equipments will be with plastic package, spare parts in carton box.

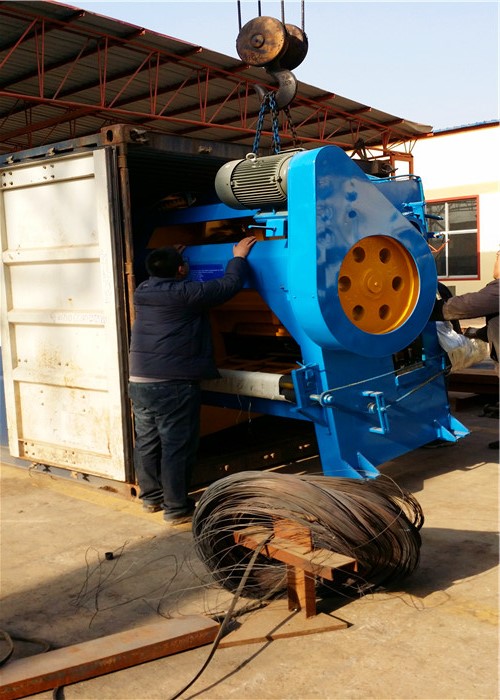

2. The main machine will be fixed in the container by steel wire rope to make it stable.
3. It needs one 40 OT' container for shipment.


The raw material of sheet including steel plate, iron plate, stainless steel plate, copper plate, aluminum plate, galvanized plate etc.

It can make round hole, long round hole, square hole, triangle hole, diamond hole, hexagonal hole, crossed hole etc.


Specifications of Punching Press:


ModelDZ31G-80DZ31G-125DZ31G-160DZ31G-200
Nominal Force(KN)800125016002000
Nominal Stroke(MM)2333
Slide Stroke(MM)30303030
SPM(MIN)160-280160-240160-220150-200
Max Die Height(MM)360400400420
Die Height Adjustment(MM)50505050
Boster(F.B*L.R*T)(MM)550*980600*1180700*1380800*1550
Boster Opening(F.B*L.R)(MM)500*950550*1050600*1250650*1450
Between Columns(MM)1000120014001600
Motor Power(KW)1118.52230
Air Pressure(MM)0.50.50.50.5
Net Weight(KG)9000115001500019000
