Brand Name: | DIAOZHUO |
Model Number: | DZ1300 DZ1600 DZ2000 |
Certification: | CE ISO9001 |
Place of Origin: | HEBEI, CHINA |
MOQ: | 1set |
Payment Terms: | L/C, D/P, T/T |
Supply Ability: | 30 sets per month |
Delivery Time: | 20-30 days |
Packaging Details: | woodencase and plastic bags |
Price: | variable |
material: | steel welding and steel cast |
selvage: | without or with |
control: | PLC or normal option |
feeding material: | ss wire and nylon wire and black wire |

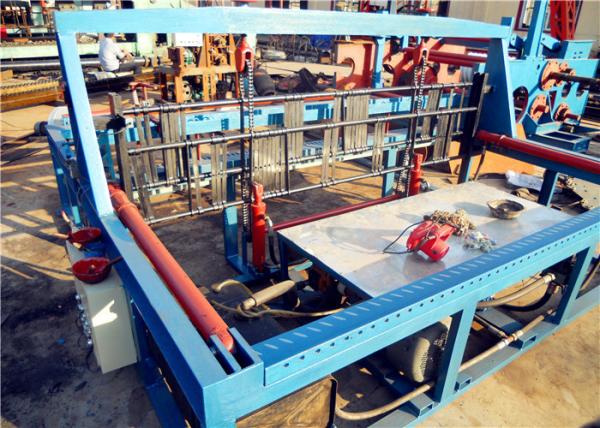

Fully automatic hydraulic control type crimped wire mesh weaving machine
machine details:
1. Control method:electric cabinet, foot switch controlliing
2. weaving wire dial:2mm-14mm
3. weaving mesh size:2.5mm-150mm
4. crimped wire speed:45m-60m/min
5. weaving width:2500mm
6. weaving speed:15-30times/min
7. power:7.5kw
Width | Measurement | Power | Weight |
1.0m(44) | 2.5×2×1.5 | 0.75 | 800(kg) |
1.2m(52) | 2.8×2×1.5 | 1.1 | 1000(kg) |
1.3m(56) | 3.2×2×1.5 | 1.1 | 1100(kg) |
1.5m(63) | 3.5×2.5×1.7 | 1.5 | 1250(kg) |
1.8m(75) | 4×2.5×1.7 | 1.5 | 1500(kg) |
2.0m(83) | 4.2×3×1.8 | 2.2 | 1800(kg) |
2.3m(101) | 4.5×3×1.8 | 2.2 | 2000(kg) |
![]() |
