Red Heavy Duty Semi Trailers / 25 Tons Van 3 Axle Trailer With 12.00R20 Triangle Tyre

Categories Heavy Duty Semi Trailers
Brand Name: SINOTRUK HOWO
Certification: CCC,ISO
Place of Origin: SHANDONG
MOQ: 1 unit
Payment Terms: LC,TT
Supply Ability: 300 Units Per Month
Delivery Time: 30-45 Days
Packaging Details: nude
Material: Q345
Axle: FUWA, BPW
Tire: 12.00R20, 315/80.22.5
Room: 2rooms, 3 rooms
DIMENSION: 12450mm*2490mm*1557mm,
TIRE: 12R22.5-22.5 13 PCS
TRACTOR HOOK: DN50
TOOL BOX: ONE
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

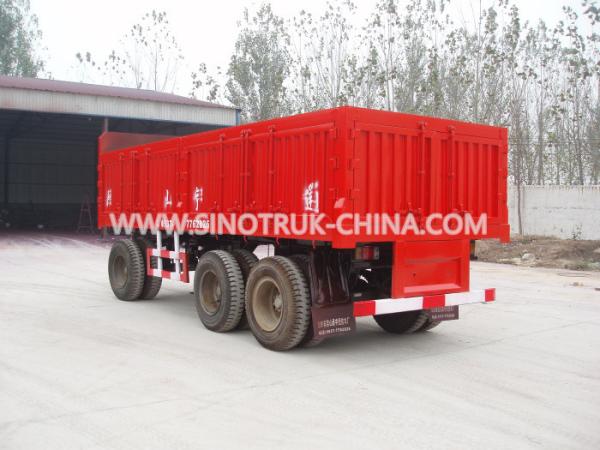

Red Heavy Duty Semi Trailers / 25 Tons Van 3 Axle Trailer With 12.00R20 Triangle Tyre

25 Tons 3 BPW axles van Full Trailer 12.00R20 Triangel tyre ABS Optional


Specification:


Chassis and main parts
DIMENSION12450mm*2490mm*1557mm,Size can be design depends on customers' request
AXLES13 T/PER axle, FUWA /BPW/HJ brands for choose
RIM9.00-22.5 13PCS or other sizes
TIRE12R22.5-22.5 13 PCS or other sizes ,Triangle/Double Coin/Linglong
SUSPENSIONMechanical suspension or Airbag suspension
LEAF SPRING90(W)mm*13(Thickness)mm*10 Layer or 100mm*12mm*12 Layer
KINGPINJOST brand 2.0 or 3.5inch bolts type or turntable (diameter is 1.1m)
DRAW BAR4*4 or 4*6mm square tube (lengthis 1.4m ) or design and make depends on request
TRACTOR HOOKDN50
MAIN BEAMHeight: 450mm-520mm, upper plate is 14mm-16mm, middle plate is 8mm-12mm,
down plate is 16mm-20mm ; Material is Q345B standard steel .
SIDE BEAM16mm -25mm channel steel (Material is Q235B standard steel ).
PLATFORMStandard 3 mm thickness checkered plate
SIDE WALLCan be fixed with 600mm-1200mm side door
BRAKING SYSTEMWABCO brand emergency valve, T30/30+T30 Spring brake chamber,one piece of 45L air tank , ABS is optional
TWIST LOCKSCan be fixed with 4 or 8 or 12PCS (lift and screw type for choose)
ELECTRIC SYSTEMVoltage is 24V / 7 ways (7 wire harness) / LED light
TOOL BOXOne piece ,equipped with 1 unit Tire spanner,1 piece sleeve and 1 piececranking bar)
PAINTINGComplete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint
OTHERSDesign and make the right trailer depends on customers' request

Advantages:

Van trailers is available with curtain Side, Open Top Van, Wing Type Van, Reefer Van per custormer operational requirement. It is widely used for valuable goods such as electronic product,Wine, tobacoo and items which need to be well protected.
