Virtual Bumpers Face Recognition Camera , Forward Vision Face Detection Camera

ADAS Recognition Camera Forward Vision Early Warning System Virtual Bumpers

Product Introduction

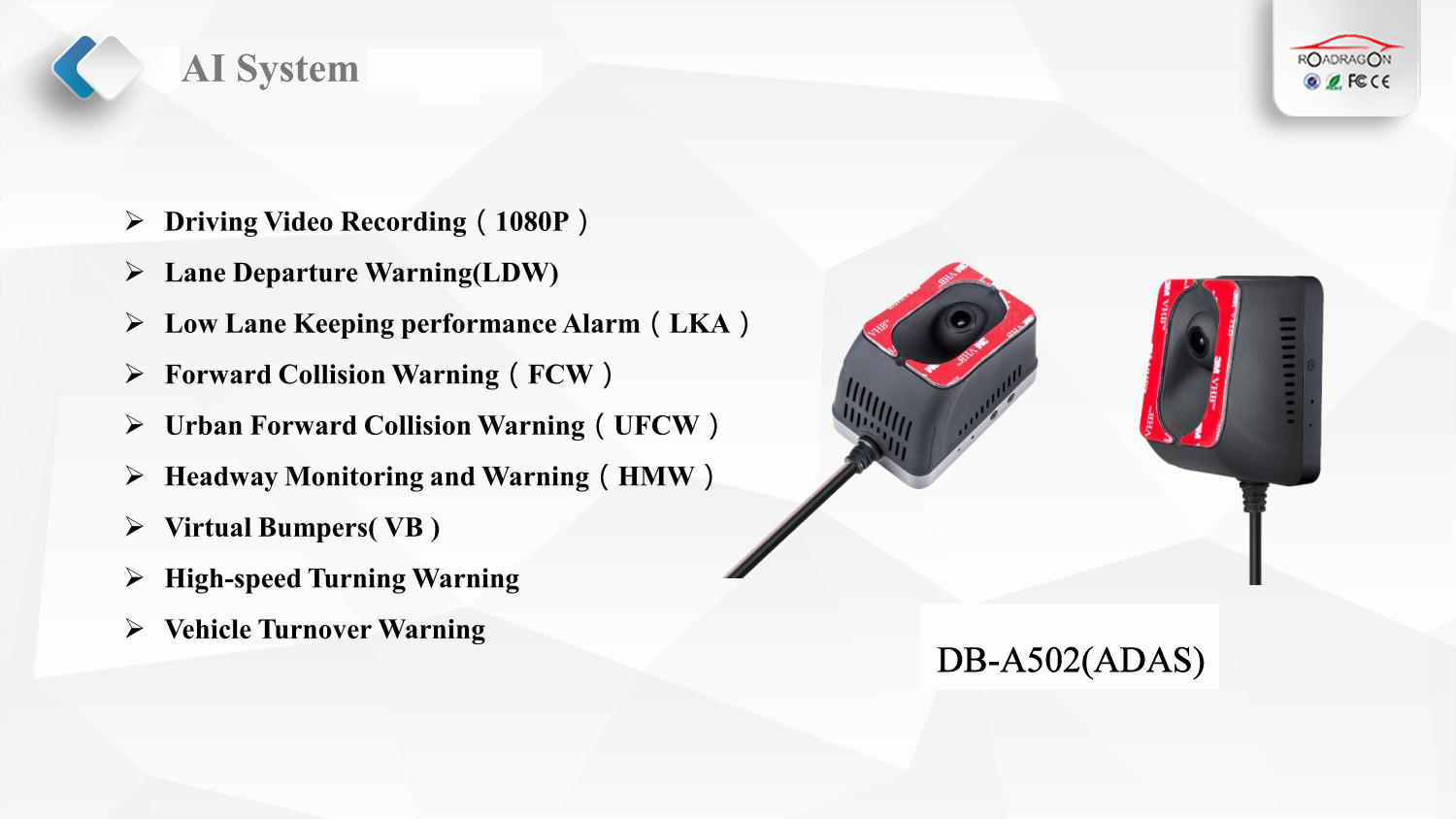

Forward vision early warning system based on machine vision, which can provide a driver with Forward Collision Warning (FCW), Urban Forward Collision Warning (UFCW), Virtual Bumpers (VB), Headway Monitoring and Warning (HMW), Lane Departure Warning (LDW), and other driving security alerting functions. This product performs real-time monitoring of the vehicle traveling state by means of a front-facing camera and an image processor and gives an alarm or alert in time in case of a dangerous state, so as to avoid the occurrence of traffic accidents.

Electrical Properties

Function Description

1. Driving Video Recording

DB-A502 can record 1080P HD videos and perform automatic cyclic recording every 3 minutes and store data into the high-speed class 10 SD card.

2. Emergency Lockout

When the vehicle encounters severe turbulence or collision during traveling,DB-A502 can immediately lock the current video and will not delete it from cyclic recording.

3. Driving Behavior Detection

The DB-A502 can detect the Rapidly Speeding-up, Hard Braking, and High-speed Turning of the vehicle through built-in sensors.

4. Video Output

DB-A502 supports video output in CVBS format, or support the PAL (default) or NTSC system for video recording by DVR.

5. Volume Adjustment

The volume can be lowered or increased by repeatedly pressing the button (-) or (+) on the side of the product, respectively; and the volume is at five levels of from 1 to 5.

6. Serial Port Communications

DB-A502 can support RS232 and can communicate with other devices to transmit vehicle information and various alarm information.

7. Signal Input and Output

DB-A502 has 3-way signal inputs which can be connected to the turn signal and brake signal.

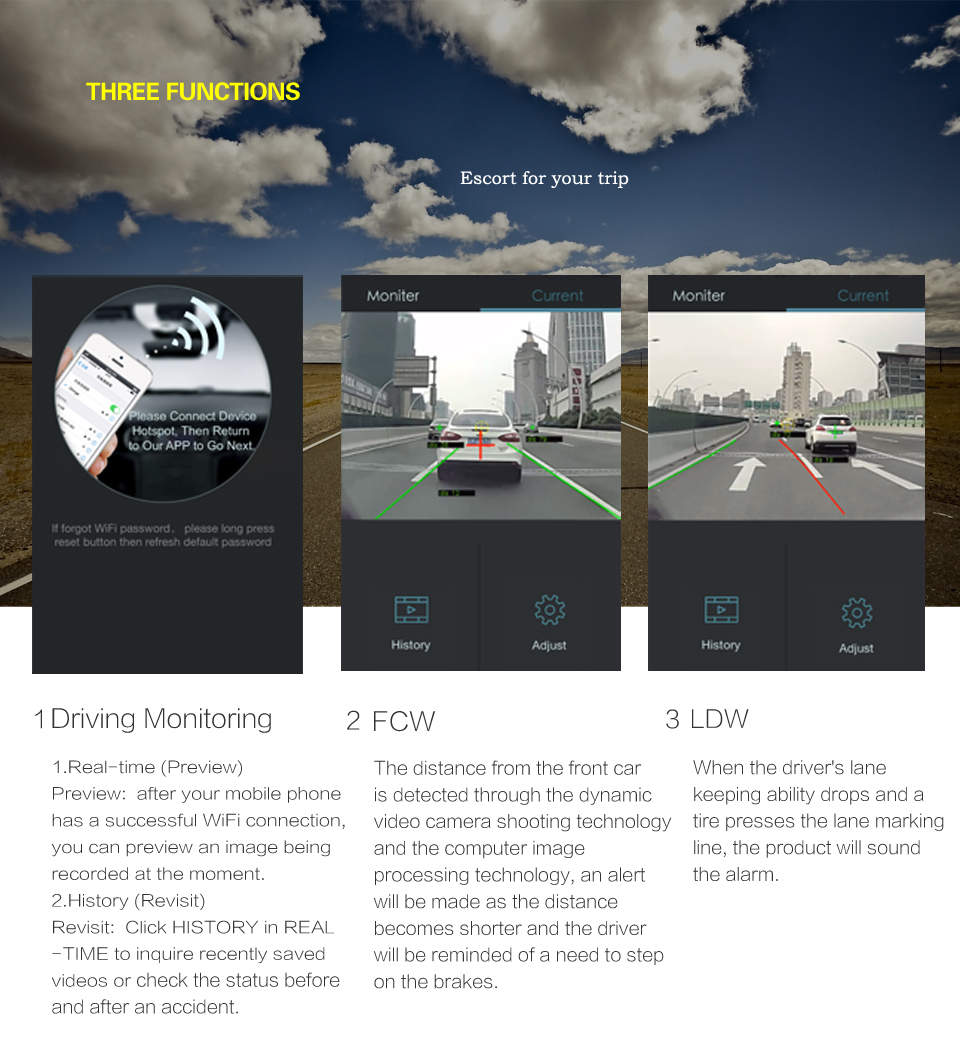

8. Mobile APP Linkage

An Android Phone may install ROADRAGON APP in “Road-Defend” and may be connected to the WiFi hotspot of the device, and the
