CNC Vision Measuring Machine Auto Touch 652 High-Speed , High-Accuracy Measurement

CNC Video Measuring Systems AutoTouch 652 High-speed, High-accuracy Measurement

2D/3D size, flatness, height difference, position degree etc.optical and laser integrated composite measurement.

The optical measurement part is equipped with surface light, bottom light, coaxial light, automatic zoom lens and video imaging module to achieve all size measurement;

Contact measurement part is equipped Renishaw MCP-K probe and professional software to achieve flatness, height difference and other rapid measurement;(Optional)

Features:

• Moving gantry structure, measurement workpiece is fixed;
• Four-axis CNC fully auto close loop control, auto measurement;
• “00” grade “JINANQING”marble base and pillar, stable and reliable;
• Imported open type linear scale, resolution is 0.1um, high accuracy, great stability;

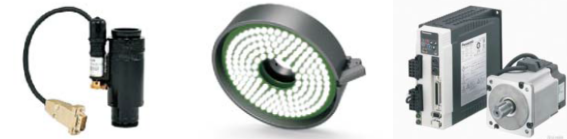

• Imported P grade linear guide, precision grinding ball screw and AC servo motor, ensure accuracy stability of system position;
• Imported high definition color industry camera, ensure clear observation and stable measurement requirement;
• 6.5X continue auto zoom lens, precision auto zoom, only need to make pixel calibration once time;
• Programmable 5-ring 8-division LED surface illumination, contour parallel LED illumination, can realize 256 grade brightness adjustment intelligently;
• Equipped with imported touch probe, realize 3D measurement;
• With proprietary fully auto measuring software iMeasuring 4.2, powerful function, simple operation;
• Optional laser probe, it can also be customized according to customer request;

Specification:
