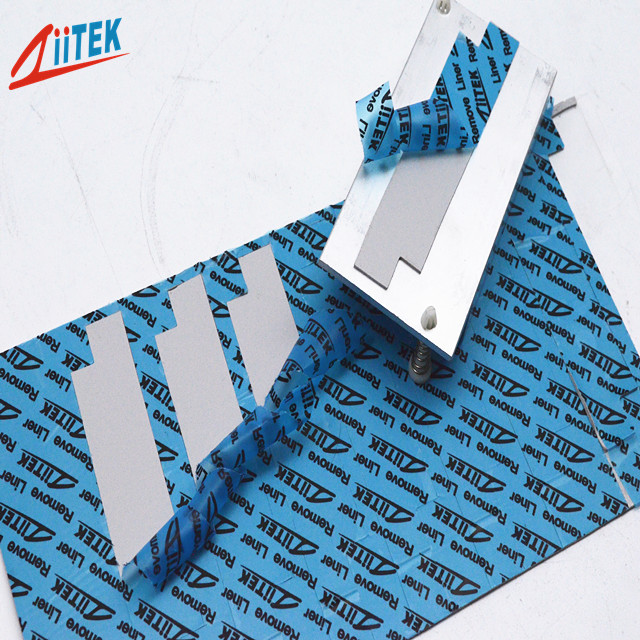

High performance 3W white V-0 Recognized Pad For Car Video Recorder DVR 45shore00 1 mmT Thermally Conductive Pad

High performance 3W V-0 Recognized Pad For Car Video Recorder DVR Gray 45shore00 Thermally Conductive Pad

The TIF140-30-06S Series thermally conductive interface materials are applied to fill the air gaps between the heating elements and the heat dissipation fins or the metal base. Their flexibility and elasticity make them suited to the coating of the very uneven surfaces. Heat can transmit to the metal housing or dissipation plate from the separate elements or even the entire PCB, which in effect enhances the efficiency and life-time of the heat-generating electronic components.

Features:

> Good thermal conductive: 3 W/mK
> Moldability for complex parts
> Soft and compressible for low stress applications
> Naturally tacky needing no further adhesive coating

Applications:

TV and LED-lit lamps

RDRAM memory modules

Micro heat pipe

Automotive engine control units

Telecommunication hardware

Cooling components to chassis frame or other mating components

Home and small office network equipment

Handheld portable electronics

Plasma supply panels

Semiconductor automated test equipment (ATE)

Heat pipe thermal solutions

Memory Modules

Mass storage devices

Automotive electronics

Radios

Typical Properties of TIF140-30-06S Series
Color	white	Visual	Composite Thickness	hermalImpedance @10psi (℃-in²/W)
Construction & Compostion	Ceramic filled silicone rubber	***	10mils / 0.254 mm	0.48
			20mils / 0.508 mm	0.56
Specific Gravity	2.32 g/cc	ASTM D297	30mils / 0.762 mm	0.71
			40mils / 1.016 mm	0.80
Heat Capacity	1 l/g-K	ASTM C351	50mils / 1.270 mm	0.91
			60mils / 1.524 mm	0.94
Hardness	45 Shore 00	ASTM 2240	70mils / 1.778 mm	1.05
			80mils / 2.032 mm	1.15
Tensile Strength	40 psi	ASTM D412	90mils / 2.286 mm	1.25
			100mils / 2.540 mm	1.34
Continuos Use Temp	-50 to 200℃	***	110mils / 2.794 mm	1.43
			120mils / 3.048 mm	1.52
Dielectric Breakdown Voltage	>10000 VAC	ASTM D149	130mils / 3.302mm	1.63
			140mils / 3.556 mm	1.71
Dielectric Constant	5.5 MHz	ASTM D150	150mils / 3.810 mm	1.81
			160mils / 4.064 mm	1.89
Volume Resistivity	7.8X10" Ohm-meter	ASTM D257	170mils / 4.318 mm	1.98
			180mils / 4.572 mm	2.07
Fire rating	94 V0	equivalent UL	190mils / 4.826 mm	2.14
			200mils / 5.080 mm	2.22
Thermal conductivity	3 W/m-K	ASTM D5470	Visua l/ ASTM D751	ASTM D5470

Standard Thicknesses:
0.010" (0.25mm) 0.020" (0.51mm) 0.030" (0.76mm) 0.040" (1.02mm) 0.050" (1.27mm) 0.060" (1.52mm) 0.070" (1.78mm) 0.080" (2.03mm) 0.090" (2.29mm) 0.100" (2.54mm) 0.110" (2.79mm) 0.120" (3.05mm) 0.130" (3.30mm) 0.140" (3.56mm) 0.150" (3.81mm) 0.160" (4.06mm) 0.170" (4.32mm) 0.180" (4.57mm) 0.190" (4.83mm) 0.200" (5.08mm)
Consult the factory alternate thickness.

Standard Sheets Sizes:
8" x 16"(203mm x 406mm) 16" x 18"(406mm x 457mm)
TIF™ series Individual die cut shapes can be supplied.

Peressure Sensitive Adhesive:
Request adhesive on one side with "A1" suffix.
Request adhesive on double side with "A2" suffix.

Reinforcement:
TIF™ series sheets type can add with fiberglass reinforced.
