EPP/EPS Carbon loaded polystyrene absorber

Categories EMC Absorbers
Brand Name: LP
Model Number: LPEPP/LPEPS
Certification: CE ROHS
Place of Origin: CHINA
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

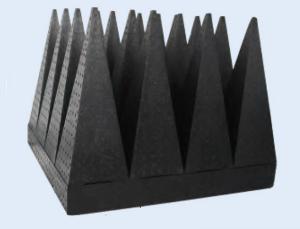

EPP/EPS Carbon loaded polystyrene absorber

LPEPS is carbon and retardant chemicals loaded solid expanded polystyrene absorbers, its designed optimized return loss performance.


Features:

  • Made by mould, perfect uniform and precise fit every time
  • Excellent anechoic performance
  • Easy to install and the ‘plug-in’ pyramids can be changed in seconds if damaged
  • No reflective edges as the bases interlock providing 100% coverage
  • Fire retardant to UL94 HBF, DIN4102-B2, EN11925
  • RoHS and REACH compliant
  • Closecell structure, more stable performance and non-hygroscopic
  • Zero shedding(clean room class ISO14644-1 class 4)
  • Re-usable without damage
  • Longer service life expectancy (25 years +)
  • High wear resistance (important doors and access panels)

LPEPS are specifically designed for use in:


  • EMC Chambers
  • Antenna measurement chambers
  • Mil Std 461 military product test chambers
  • Radar cross section RCS chambers
  • Other applications where radio wave/microwave absorbing is required

Item No.

Base size


(mm×mm)

Pyramidal Qty/


pcs

Pyramidal size H×L×h

(mm×mm×mm)


Standard Weight

(kg/㎡)

LPEPS-P300E600×60036300×100×602
LPEPS-P500E600×60016500×145×753
LPEPS-P700E600×6009500×195×1304.5

Reflection Loss under Normal Incidence(-dB)


Power Handling

kW/㎡

Item No.0.030.080.30.51361018
(GHz)(GHz)(GHz)(GHz)(GHz)(GHz)(GHz)(GHz)(GHz)
LPEPS-P300E1123171817202021251
LPEPS-P500E1426202019202125281
LPEPS-P700E1727232120202325301
