| Categories | Self Cleaning Screen Mesh |
|---|---|
| Brand Name: | huihao |
| Model Number: | Self Cleaning Anti-clogging Screen |
| Place of Origin: | China |
| MOQ: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union,paypal |
| Supply Ability: | 1000pcs per 20 days |
| Delivery Time: | 7 work days |
| Packaging Details: | 1.Inside is plastic ,outside is hessian and tie by steel strips then packing by pallet 2.wooden box 3.Special packing can be made according to the customers request |
| Certification: | ISO9001-2008 |
| Product: | Self Cleaning Anti-clogging Screen |
| Wire diamtere: | 0.8-12MM |
| Aperture: | 5mm-130mm |
| Width: | 1800MM |
| Length: | 2180mm |
| Application: | For Quarry , Mining , Aggregate Industry |
| Company Info. |
| Huihao Hardware Mesh Product Limited |
| Verified Supplier |
| View Contact Details |
| Product List |
Self Cleaning Anti-clogging Screen is manufactured from manganese steel wire, galvanized wire or stainless steel wire. The wires are
woven into square, rectangular or long slot meshes.
Self Cleaning Anti-clogging Screen has various weaving types, such as plain weave, pre-crimped weave, flat top, intermediate crimped
and lock crimped. Various weaving types can fit different vibrating screens and materials.
Specification of Self Cleaning Anti-clogging Screen For Plant Construction And Mining Machinery
| Aperture (mm) | Nominal Wire Dia (mm) | Approx. Free screening area% | Aperture (mm) | Nominal Wire Dia (mm) | Approx. Free screening area% | Aperture (mm) | Nominal Wire Dia (mm) | Approx. Free screening area% |
| 2 | 1.25 | 38 | 16 | 4 | 64 | 40 | 5.6 | 77 |
| 2.5 | 1.25 | 44 | 5 | 58 | 6.3 | 75 | ||
| 3.15 | 1.25 | 51 | 5.6 | 55 | 8 | 69 | ||
| 4 | 1.6 | 44 | 20 | 5 | 64 | 10 | 64 | |
| 1.25 | 58 | 5.6 | 61 | 45 | 5.6 | 79 | ||
| 1.6 | 51 | 6.3 | 58 | 6.3 | 77 | |||
| 5 | 1.6 | 57 | 22.4 | 5 | 66 | 8 | 72 | |
| 2 | 51 | 6.3 | 60 | 10 | 67 | |||
| 2.5 | 45 | 25 | 5 | 69 | 50 | 6.3 | 79 | |
| 6.3 | 2 | 58 | 6.3 | 64 | 12 | 65 | ||
| 2.5 | 51 | 8 | 57 | 56 | 6.3 | 81 | ||
| 3.15 | 45 | 28 | 5.6 | 69 | 8 | 77 | ||
| 8 | 2 | 64 | 6.3 | 67 | 10 | 72 | ||
| 2.5 | 58 | 8 | 61 | 12 | 68 | |||
| 3.15 | 52 | 31.5 | 5.6 | 72 | 63 | 6.3 | 83 | |
| 10 | 2.5 | 64 | 6.3 | 70 | 8 | 79 | ||
| 3.15 | 58 | 8 | 64 | 10 | 74 | |||
| 4 | 51 | 10 | 58 | 12 | 71 | |||
| 12.5 | 3.15 | 64 | 36 | 5.6 | 75 | 80 | 8 | 83 |
| 4 | 57 | 6.3 | 72 | 10 | 79 | |||
| 5 | 51 | 8 | 67 | 12 | 76 | |||
| 14 | 3.15 | 67 | 10 | 61 | 100 | 8 | 86 | |
| 4 | 61 | 10 | 83 | |||||
| 5 | 54 | 12 | 80 | |||||
| Custom Size | ||||||||
installation of Self Cleaning Anti-clogging Screen For Plant Construction And Mining Machinery
hook types of Self Cleaning Anti-clogging Screen For Plant Construction And Mining Machinery

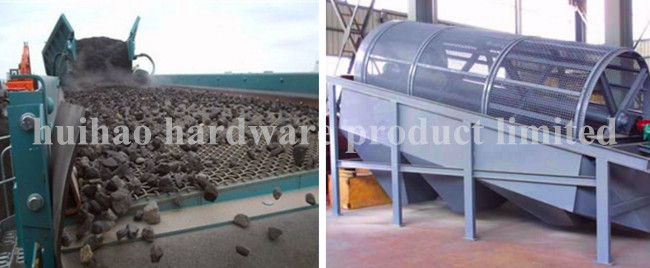

Application of Self Cleaning Anti-clogging Screen For Plant Construction And Mining Machinery
The square wire mesh is widely used in the vibrating screens,
crushers and trommel screens.
Industrial square wire mesh can be used for screening and
separating stones, coal, mining, gravel, sand and any other
materials.
|
