| Categories | Stud Welding Pins |
|---|---|
| Brand Name: | Huihao |
| Model Number: | Stud Welder Pins |
| Place of Origin: | China |
| MOQ: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union,PAYPAL |
| Supply Ability: | 500000PCS per 20 Days |
| Delivery Time: | 5-8 work days |
| Packaging Details: | Stud Welder Pins1. 500pcs per bag, 10 bags per carton. 64 cartons per pallet. 2. to be your requirements. |
| Certification: | ISO9001-2008 |
| Material: | copper plated steel or galvanized steel |
| Finished: | copper coating or galvanized |
| Diameter: | 10 Gauge / 12Gauge / 14 Gauge / 3mm |
| Length: | 20-200MM |
| Standard: | GB900-88 |
| Processing customized: | yes |
| Company Info. |
| Huihao Hardware Mesh Product Limited |
| Verified Supplier |
| View Contact Details |
| Product List |
>>> Introduction To Stud Welder Pins
Stud Welder Pins are used for attaching insulation to various metals, with the use of a CD welder. After the pin is welded in place,
the insulation is impaled on the pin and secured with a self-locking washer.
10 Ga. (0.135") Stud Welder Pins

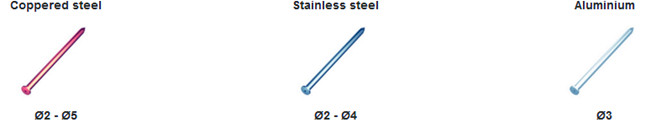

| Material | Mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order |
| Diameter | 10 Ga. (0.135") |
| Length | 1" 1-1/2" 2" 2-1/2" 3" 3-1/2" 4" 4-1/2" 5" 5-1/2" 6" 7" 8" 9" |
12 Ga. (0.105") Stud Welder Pins
| Material | Mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order |
| Diameter | 12 Ga. (0.105") |
| Length | 3/4" 1" 1-1/2" 2" 2-1/2" 3" 3-1/2" 4" 4-1/2" 5" 5-1/2" 6" 7" 8" |
14 Ga, 2mm (0.080") Stud Welder Pins
| Material | Mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order |
| Diameter | 14 Ga, 2mm (0.080") |
| Length | 3/4" 1" 1-1/2" 2" 2-1/2" 3" |
3mm Capacitor Stud Welder Pins
| Material | Mild steel with copper coating or galvanized steel are standard, stainless steel and aluminum are available in special order |
| Diameter | 3mm |
| Length | 25mm 30mm 35mm 40mm 45mm 50mm 55mm 60mm 65mm 70mm 75mm 100mm 125mm 150mm |
---> Length of this style pin should exceed the thickness of the insulation, in order to securely attach the self-locking washer.
---> Nail point is standard - available with "blunt end" as special order.
>>> Application Of Stud Welder Pins
1.The pins are primarily designed as welded fasteners to secure blanket and board insulation to metal heating and air
conditioning ducts, ovens, tanks and other hot or cold equipment.
2.CFN pins have a weld tip designed for the Capacitors Discharge welding process, but may also be welded with the
Short Cycle Drawn Arc weld process.
3.They are designed to be welded to thin gauge sheet material using tip ignition according to the capacitors discharge welding process.
Advantage of Stud Welder Pins
Good quality with beautiful outlook .
Best target price which could make you benefit more from our deal .
Severial materials for your reference , also we could make the studs according to your drawings .
|
