Bus Bar LV Current Transformers BH-0.66 100/5a 150/5a 200/5 400/5 800/5

BH-0.66 100/5a 150/5a 200/5 400/5 800/5 bus-bar current transformer

Product Description:

BH-0.66 Series Current Transformer/electrical transformer/MSQ-60

1.Current transformer is a very useful device because it converts high AC current to small easily manageable value.

2.Current transformers consist of primary winding, secondary winding, magnetic core and insulated body.

3.If current transformers have no bus bar, they are manufactured without primary winding. Instead of this, it is possible to constitute primary winding by passing conductor or busbar inside toroidal core of transformer.

4.Current transformers are produced according to IEC185-

5. Furthermore, the secondary terminals are under a transparent seable cover.

6.Low voltage current transformers are manufactured as of two types for measuring and protection.

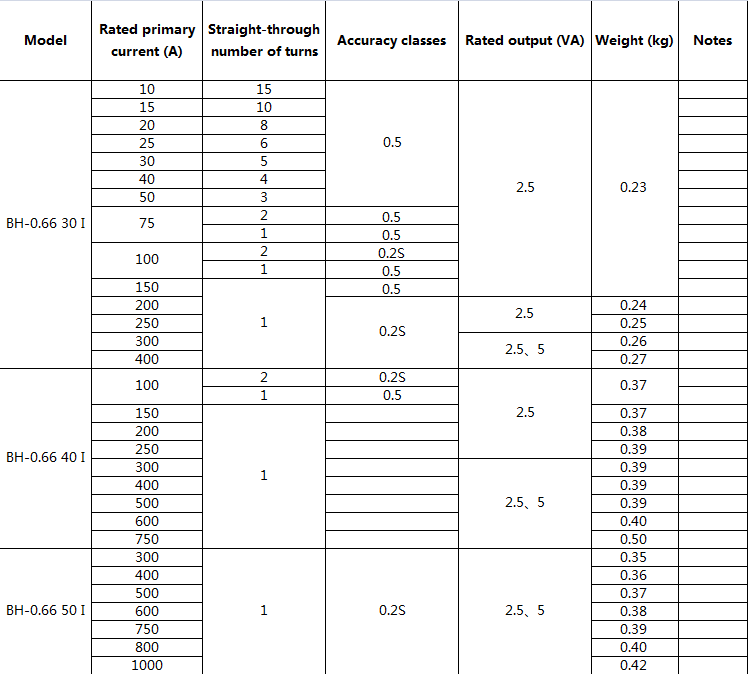

Specification:

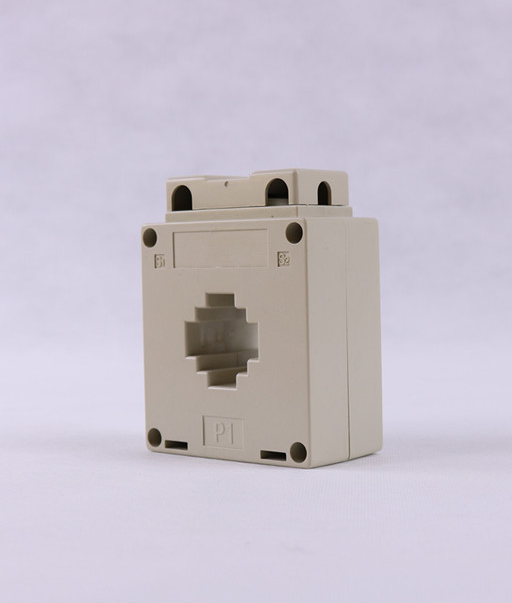

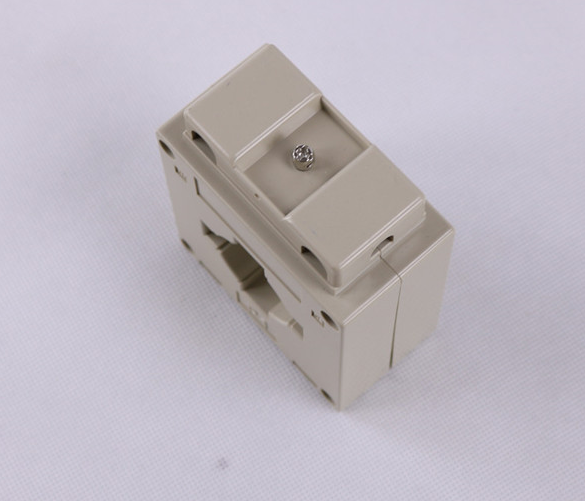

Picture:

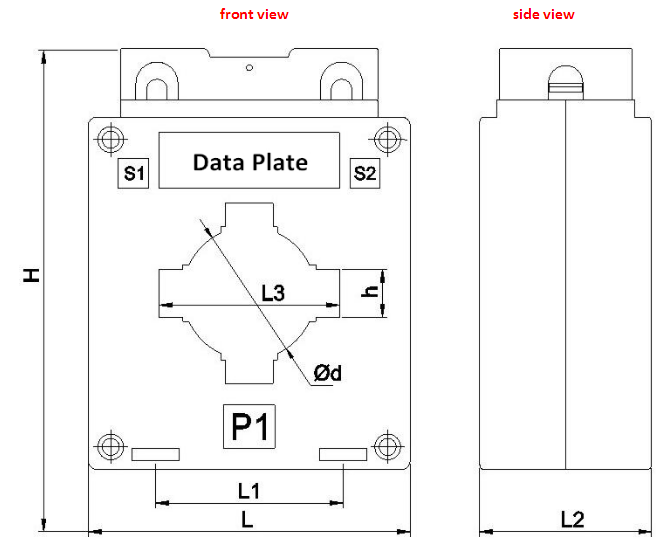

The drawing of install Dimension:

Zhejiang Yomin Electric Co., LTD

Contact person: Nike

Tel: +86 153 5592 5721

Established in 2002, YUEQING YOMIN ELECTRIC CO., LTD(before named Zhengjiang Yomin Electric Co., Ltd , founded in 1996) is a manufacturer and exporter specialized in the research, development and production and service of different kinds of Single-phase and three-phase mechanical watt-hour meter, long-life watt-hour meter and single-phase electronic watt-hour meter, three-phase electronic watt-hour meter and Multi-rate Meter, multi-function Meter, prepaid meters, Power Line Carrier meters, multi-function carrier meters, digital meters, pointer meter, terminals and accessories etc.

Located in Wenzhou City, Zhejiang Province, we are quite close to Shanghai and Ningbo port. Covering an area of 12000 square meters for manufacturing and administration, we now have over 370 employees making their great efforts for YOMIN. Most of our products are supplied by tender and widely used in domestic and overseas electricity power companies in more than 90 countries and regions.

Our well-equipped facilities and excellent quality control throughout all stages of production enables us to guarantee total customer satisfaction. Besides, we are awarded with international certificates such as ISO9001, KEMA, CE RoHS, CB, BV etc as well as China domestic certification like CCC and CMC.

If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to building successful business relationships with new and old clients around the world in the near future!
