LED Lamp Climatic Test Chamber / Rain Test Equipment ASK Color Touch Screen Controller

Categories Climatic Test Chamber
Brand Name: PERFECT
Model Number: PT-2050
Certification: ISO9001
Place of Origin: Dongguan,Guangdong,China
MOQ: 1 set
Price: negotiable
Payment Terms: T/T, L/C, Western Union
Supply Ability: 50 set per month
Delivery Time: 20 work days
Packaging Details: strong wooden case
Time setting range: 0~999h
Pouring water pressure: About 80Kpa/98kpa
Pipe diameter: φ16 mm
Liner materia: SUS304 Stainless steel
size(mm): PT-2050A:800×800×800 Appearance size(mm) 1020×1200×1000
Tube radius: R375mm/500mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

LED Lamp Climatic Test Chamber / Rain Test Equipment ASK Color Touch Screen Controller

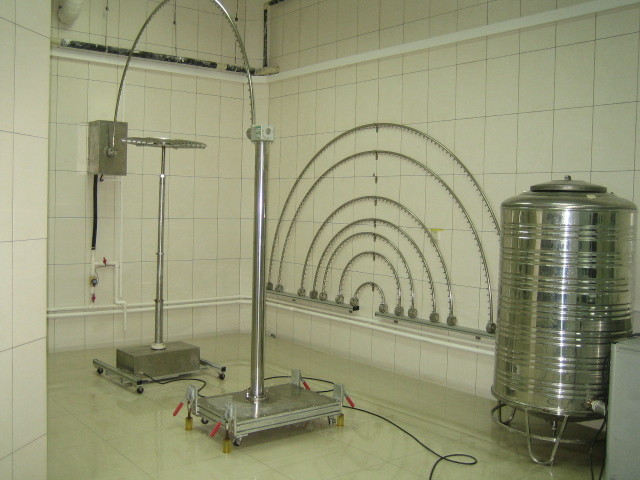

LCD Rain Resistant Test Chamber Climatic IPX3 Rain Tester For LED And Lamp


IPX3 Rain Tester Application :


LCD Rain Resistant Test Chamber Climatic IPX3 Rain Tester For LED And Lamp is suitable for electrical and electronic products, lamps and lanterns, electrical cabinet, electrical components, automobile, motorcycle parts and other products. This chamber is designed to test water-proofing property of automobile and electronic parets. Rain Tester For LED And Lamp adopts large size observation window, which will be much easier for users to check specimen status clearly. Besides, the digital setting makes it more easier for operation and maintenance.


IPX3 Rain Tester Features :


  • 1. The machine drive adopts servo motor, accomplished by programmable controller
  • 2. The whole process of water softening system, multiple filtration, achieve the true 100% circulation water
  • 3. The spacious Windows are effective in the whole process
  • 4.It is easy to direct the input from the Angle of the Angle of the tube, so that it is easy to be adjusted without manual adjustment
  • 5.The effective Angle 10 ° to 320 °

IPX3 Rain Tester Specification :


ItemLCD Rain Resistant Test Chamber Climatic IPX3 Rain Tester For LED And Lamp
Model No.PT-2050APT-2050BPT-2050C
Test Space Size800*800*800mm1000*1000*1000mm1500*1500*1500mm
Out size1020*1200*1000mm1220*1400*2000mm1700*1900*2500mm
Tube radiusR375mm/500mm
Pipe diameterφ16 mm
Pouring water pressureAbout 80Kpa/98kpa
Time sett range0-999h
Liner materialSUS304 Stainless steel
Frequency converterPanasonic frequency converter
Electrical componentsFrench AC contactor
Water pumpHigh pressure water pump
ControllerASK Color touch screen
ReducerRotary table motor (Panasonic motor)

Test:
