WIND-CT-TH4 Commutator Face Turning And Riser Surface Lathe Machine For Starter Armature

Categories Commutator Turning Machine
Brand Name: WIND AUTOMATION
Model Number: WIND-CT-TH4
Certification: CE
Place of Origin: China
MOQ: 1pc
Price: Negotiable
Payment Terms: T/T
Packaging Details: 1 Pallet Weight: about 1,100Kg Machine dimension: 1,100mm x 1100 mm x 1,830mm3
Condition: New
Which part turning: Commutator OD,Riser OD
Working station: One station
Cutter No.: One cutter
3 Axis: 2 axis servo motor
Turning Commutator Roundness: < 0.003mm
HS Code: 84581100
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

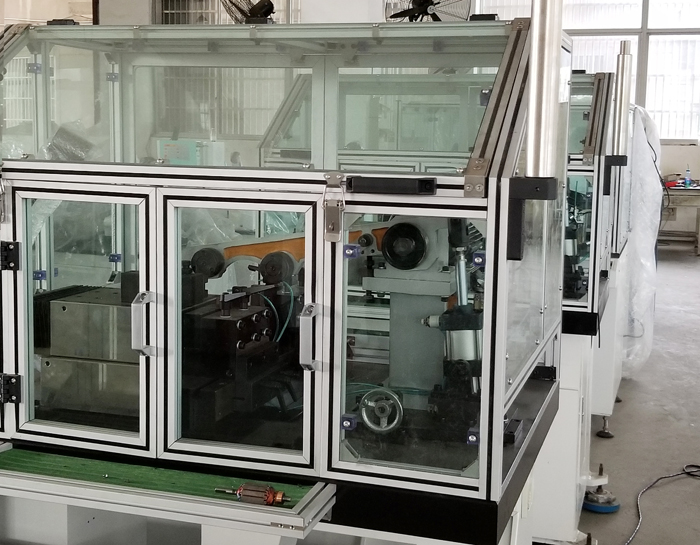

WIND-CT-TH4 Commutator Face Turning And Riser Surface Lathe Machine For Starter Armature

Commutator Face Turning And Riser Surface Lathing Machine For Starter Armature WIND-CT-TH4


(1) Application


The turning machine WIND-CT-TH4 can turn commutator face also Riser raisor surface of starting motor


armture, This finish turning machine is precison device for turning the excircle of commutators.


Adoption of a servo control mode to horizontal/longitudinal feeding, the machine is high effiencicy and


stability, online automated prodution can be achieve in a fully automatic armature production line.


(2) Competitive Advantages


1. Can lathe commutator surface, also starting armature commutator riser surface


2. X axis control the length of turning left right horizontal position


Z Axis control the depth of lathing in vertical position


3. Economic Type, easy opeartion for developing countries' user including India


(3) Specification


Roundness:≦0.003mm
Surface roughness:≦Ra0.40
Rotor outer diameter:Ф20-Ф80mm
Rotor shaft length:32-250mm(Lengthenable customizable)
Rotor shaft diameter:Ф2-Ф18mm(customizable)
Commutator outer diameter:Ф4.3-Ф60mm
Armature ODФ20-Ф90mm
Turning capability:rough turning Max0.20mm diameter
Speed amplitude modulation:0-60Hz
Feeding unit:1μm-0.5mm arbitrary
Cutting length:Max50mm
Feeding speed:Stepless adjustable
Control mode:stepping, automatic
Operation method:Touch screen operation
Air source pressure:5-7kg/cm²
Turning times:1-4 Any setting
Fixture:Diamond V-shaped Frame
Total power:2Kw
Power source:AC220V 50/60Hz

(4) Below information is needed when you send inquiry


Armature drawing or rotor drawing

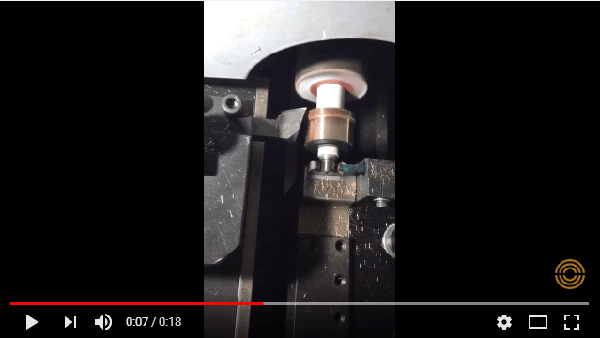

Please click below photo to view the video
