| Categories | Wire Mesh Filter |
|---|---|
| Brand Name: | Yoston |
| Model Number: | Filter Disc |
| Certification: | ISO 9001:2008 / CE / EN / SGS |
| Place of Origin: | China |
| MOQ: | 100 pcs |
| Supply Ability: | 10000 pcs / day |
| Delivery Time: | 5-8 days |
| Packaging Details: | Carton than wooden case |
| Materials: | Stainless Steel |
| Shape: | Round ,Square,Oval, Rectangular |
| Mesh: | 1-635mesh |
| Weaving Pattern: | Plain, Twill, Dutch weave |
| Application: | Extruder filter, Industrial filter |
| Feture: | can customized any size , filter properly |
Stainless steel woven wire mesh screen filter disc for plastic exturder
1. Cloth material: Stainless steel 302, 304, 304L, 316, 316L, copper etc
2. Mesh: 1Mesh-635Mesh
3. Filter diameter: 5mm - 600mm
4. Edge material: Aluminum, stainless steel, copper etc.
5. Weaving type: plain weave, twill weave, dutch weave, reverse
dutch weave etc.
6. Type: round, square, rectangle, oval etc.
7. Layer: single or multi-layers
Performance:
high strain ability, excellent filtration capacity ,precise fitting
filter elements , optimum cost-performance ratio, corrosion
resistance, thermal resistance.
Shapes:
round, rectangle elliptical, other shapes.
Disc filters are provided in different shapes: Single piece or
multiple layered.
Marginal materials for disc filters: stainless steel, aluminum and
nickel-plated copper.
Application:
used in absorption, evaporation and filtration process in
petroleum, chemical, medicine, metallurgy, machinery, ship and
automobiles to delete the mist drop or liquid foam or used as air
filter in cars and trucks.
Our disc filters have excellent resistance against acid , alkali, heat and corrosion, extensive uses in porcessing of oils, chemicals, food , pharmaceuticals, also sorting and screening of solid , liquid and gas in mine, metallurgy, air space, machine making. Etc.
Specification table:
| Mesh Count | Wire Diameter (mm) | Aperture (mm) |
|---|---|---|
| 6 × 6 | 0.900 | 3.31 |
| 10 × 10 | 0.56 | 1.98 |
| 20 × 20 | 0.4 | 0.9 |
| 30 × 30 | 0.28 | 0.57 |
| 40 × 40 | 0.224 | 0.411 |
| 50 × 50 | 0.20 | 0.31 |
| 60 × 60 | 0.16 | 0.263 |
| 80 × 80 | 0.14 | 0.178 |
| 100 × 100 | 0.112 | 0.142 |
| 120 × 120 | 0.09 | 0.122 |
| 150 × 150 | 0.063 | 0.109 |
Packing details:
* Carton--plywood case
* Special packing can customized
How to make your own filter disc? Here are the directions:
1. Choose the material of filter disc.
2. Please specify your filter disc mesh or aperature.
3. Please specify your filter disc diameter.
4. Choose the filter disc type: round, square, rectangle, oval etc.
5. We need to know your quantity, this will determine the best
price!
Weaving Types:

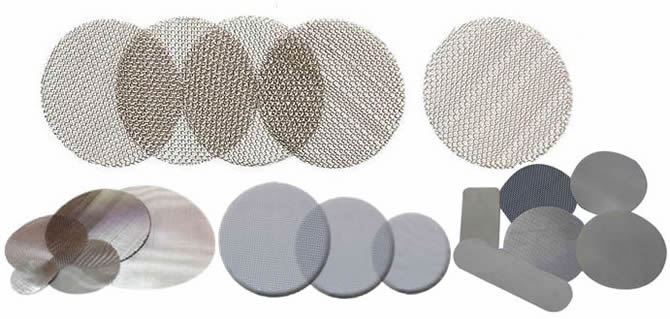

Product photos :
Contect Details :
Anping Yoston Metal Wire Mesh Co.,Ltd.
No.56 Yuhua South Road , Anping Hebei China
Tel / Wechat / Whatsapp: +86 15833839680
Email: yoston@foxmail.com
|
