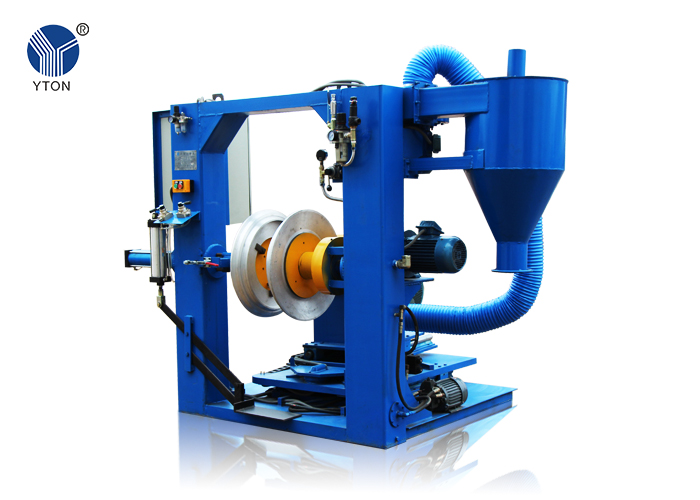

Blue Tire Buffing Machine , Auto Buffing Machine For Buffing Tread Rubber

Buffing Machine For Tire Retreading Machine Buffing Tread Rubber

Standard function description:

1, Buffing radial range: 450~800 mm.

2, Buffing machine have dust collecting system, it can automatically collect rubber powder into bag, smoke through the pipeline to outdoor.

3, Auto air inflation, before the grinding, inflate certain pressure into the tire; remain the tire outline in normal shape.

4, With double pressure protection device can better ensure the safety of the pressure.

5, With portal frame, exact centering, buffing different size of tires, easy to change exclusive chuck.

6, Automatic tire lifting, reduce the labor force.

7, With hydraulic automatic control of grinding surface radian, swinging.

Optional function:

1, Sidewall buffing and brushing arm.

2, Tread circumference measurement.

3, Manual shoulder buffing.

4, Double arc shoulder buffing.

5, Surplus rubber thickness measurement.

Technical description:

Overall: 1600mm*2700mm*1800mm

Gross weight: 1600 KG

Rim diameter range: 14” 15” 16” 20” 22.5”

Air pressure: 0.6 MPA

Voltage & frequency: 380V

Power: 15 KW

Average buffing time: 3 min
