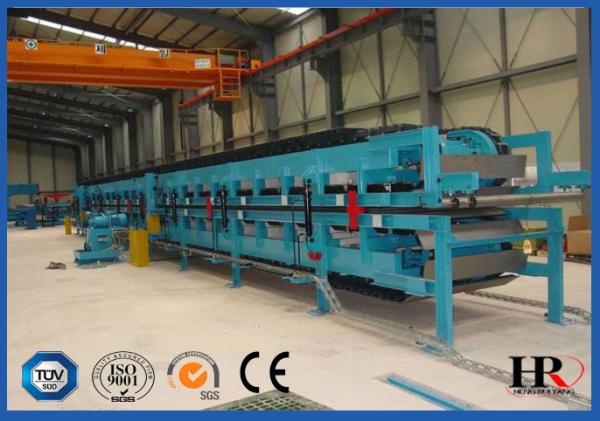

Polyurethane Sandwich Panel Manufacturing Line , Metal Sandwich Panel Equipment

Polyurethane Sandwich Panel Manufacturing Line , Metal Sandwich Panel Equipment

Features:
1) Specialized equipment used for producing color-steel sided sandwich panels with
the middle layer of anti-combustion polyurethane, polyiso-cyanurate or phenolic
foam plastic
2) Thickness of sandwich panel produced: 0 - 10mm
3) Width of sandwich panel produced: 750 - 1,000mm
4) Length of sandwich panel produced: according to clients' requests

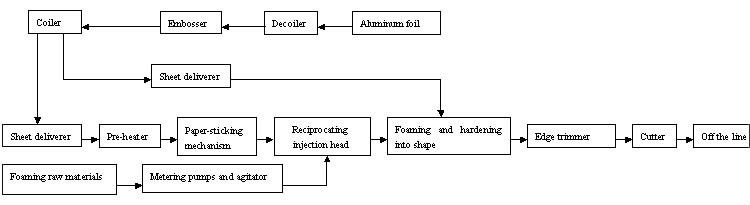

5) Operation process:
a) Rigid polyfoam raw materials, in a certain blending ratio, are delivered into
the mixing head through the metering pump of the injection machine
b) Mixing head agitates raw materials
c) The injection machine uniformly injects mixed materials onto the bottom facing
sheet of the sandwich panel

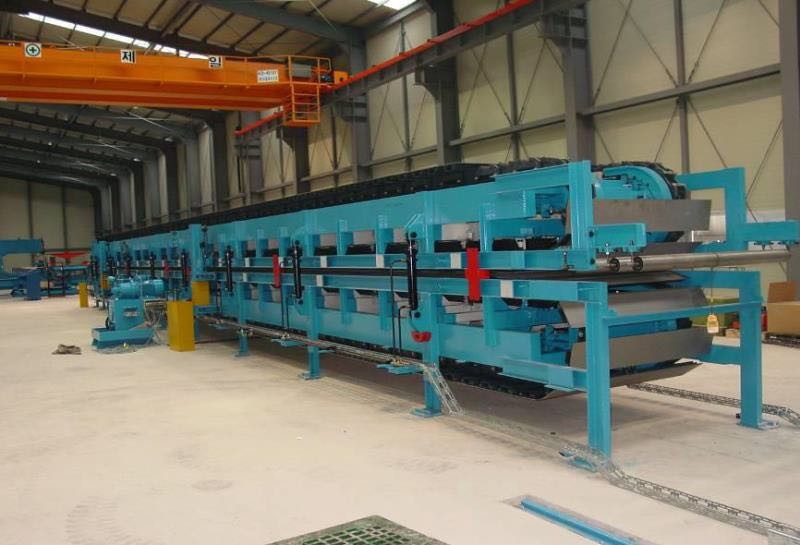

d) When injection is completed, the bottom facing moves toward the double-belt
conveyors together with the top facing sheet
e) Between two conveyors, the injected material is foamed and hardened into
shape
f) At the end of the line, formed sandwich panels are cut into preset lengths
by an automatic tracking

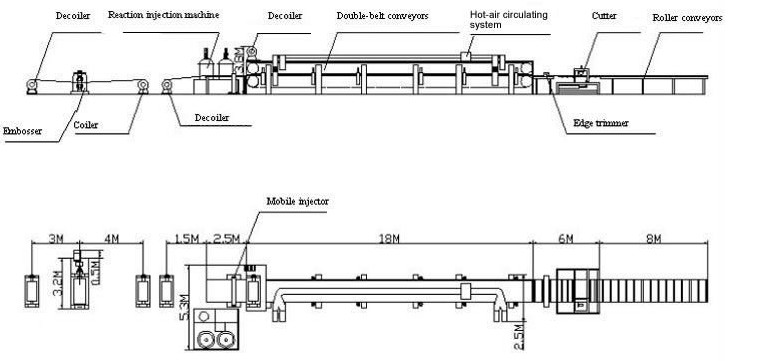

Main technical parameters

Company introduction

We are located in Jiangyin city, Jiangsu province, specializes in manufacturing various types of high speed, high precision roll forming machines, with more than 20 years’ experience. It has gained highly praise by customers from all over the world, due to top quality and competitive price of the products. Company principle: top quality, low price.

We a professional manufacturer of cold forming equipment (especially high difficulty cold formed steel), wins the trust of customers by its honesty, pragmatic operation philosophy, advanced technology, innovative design thinking, excellent quality, superior after sales service, competitive price, etc.

Main products

We mainly produce all kinds of roof/ wall tile roll forming machine, C purlin, Z purlin, C&Z interchangeable purlin roll forming machine, uni channel forming machine, rack shelf roll forming machine, guardrail roll forming machine, cable tray roll forming machine, metal deck roll forming machine, down pipe roll forming machine, rolling shutter door roll forming machine, auto stacker, EPS/PU sandwich panel production line, slitting line, cut to length line, tube mill, etc, mainly in construction use.

After sale service

1). Engineer will give free training lessons to labors in buyer’s factory.

2). The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD100 for engineer per day.

3). During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.

4). We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.
