| Categories | Grip Strut Grating |
|---|---|
| Brand Name: | HUIHAO |
| Model Number: | Perforated Grip Strut Stair Treads |
| Certification: | ISO |
| Place of Origin: | China |
| MOQ: | 100 pieces |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 1000pcs per 26 days |
| Delivery Time: | 10 work days |
| Packaging Details: | wrapped with plastic film then put into wodden cases |
| material: | aluminum, galvanized steel |
| thickness: | 2mm-5mm |
| width: | 13-3/4" |
| length: | less than 6 meter |
| Company Info. |
| Huihao Hardware Mesh Product Limited |
| Verified Supplier |
| View Contact Details |
| Product List |

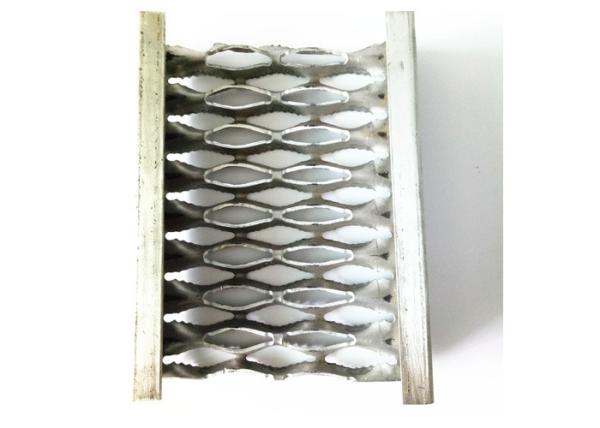

huihao 's Perforated Grip Strut Stair Treads
perforated grip strut stair treads is punching through CNC machine, then formed by processing a special mold. perfroated grip
strut stair treads is regarded as derivative prodcuts of perforated sheet. The fine positioning, precise stamping make the anti
sked perforated plate more professional application in each anti-skid areas. It has many advateges including anti-rust, anti-skid,
anti-corrosion, durable application and beautiful surface, and widely used in sewage treatment, power plant, snow , stair step,
anti-skid pedal, and many other anti-skid areas.
Material: hot-rolled, cold-rolled, galvanized sheet, aluminum, stainless steel sheet and so on. |
Thickness: 2.0mm-5.0mm |
Width: ≤1000mm Length: ≤4000mm |
Surface treatment: electro-galvanized, hot-dip galvanized, polishing and so on. |
Holes: crocodile moth type, round convex type, tear- type, bridge-type hole |
Processing procedure: raw materials- CNC molding -bending-welding-forming-packaging. |
specification of Perforated Grip Strut Stair Treads
3 Diamond / 13-3/4" Width | ||||
Diamond Pattern | Width | Channel Depth | galvanized | Aluminum |
3 diamonds | 13-3/4 | 2 | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080), 10 Ga. (.100) |
13-3/4 | 2-1/2 | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080), 10 Ga. (.100) | |
13-3/4 | 3 | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080), 10 Ga. (.100) | |
13-3/4 | 4 | 11 Ga., 10 Ga., 9Ga. | 12 Ga. (.080), 10 Ga. (.100) | |
Feature and benefits of Perforated Grip Strut Stair Treads
One-piece metal construction.
The high quality material and surface finish make the plank resist
rust and corrosion.
Resilience of walking surface makes it self-cleaning.
Large holes can provide the maximum drainage of waste and snow, and
it provides the enough free air opening to prevent the snowstorm.
Embossed traction buttons provide high slip resistance in all
directions and in all weather conditions because the buttons can
hold any way you move.
Light in weight and easy handle make installation simple and quick.
Most sections are rapidly bolted, clamped or welded into place.
Long life and low maintenance, the higher anti-slip characteristic
makes it lasts a long time than other grating.

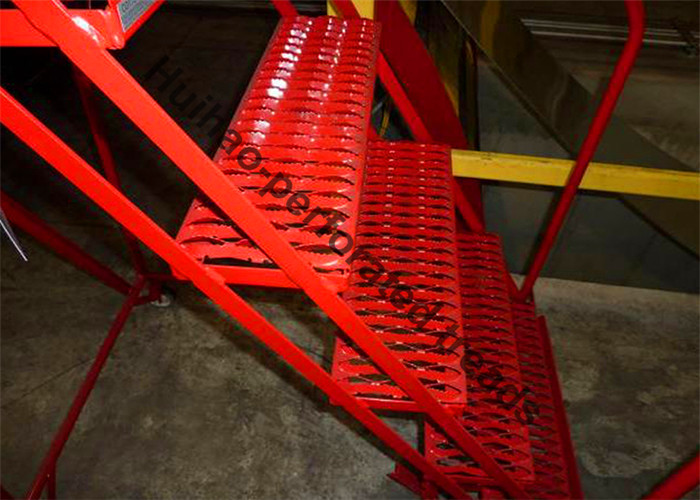

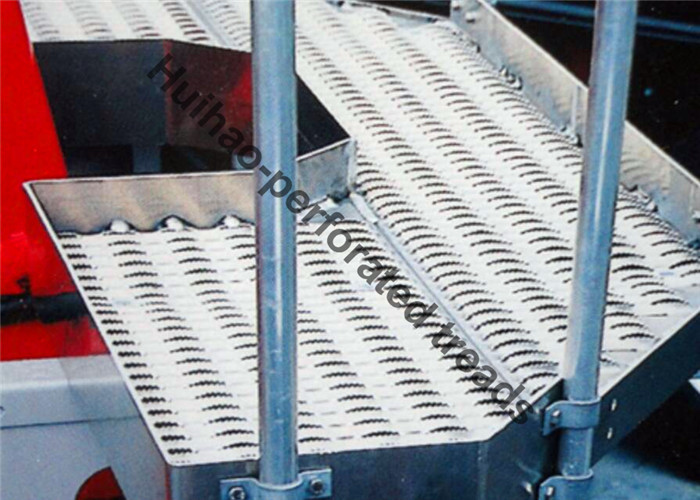

Perforated Grip Strut Stair Treads Application:
Because the plank has high anti-slip and resists rust and corrosion features, it is widely used at the rooftop of the train, industry flooring,
platform of the traffic and offshore drilling, etc.
|
