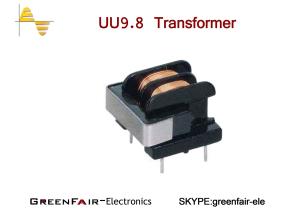

0.6mH Min Customized Power Choke Inductor , UU9.8 Two Winding High Power Inductor

Horizontal UU9.8 UU10.5 filter common mode choke 0.6mH to 104mH MIN Customized specifications are accepted

Function:

1. Suppresses noise in DC circuits for switching regulators.
2. Protects primary AC side form being affected by switching regulators.
3. Filters electors tic noise from power and signal lines.
4. Eliminates contact noise.
5. Filters incoming spike noise for Ics and equipment using microcomputers.
6. Minimizes noise emissions for conforming to FCC,VCCI,FTZ,CISPR,JTTC and VDE.
7. Minimizes noise emissions from inverters.

Parameter:

Operating temperature: -55 to 105°C
Power: 200, 250, 300 and 500W
Voltage: 100V/230, 50Hz
Inductance value is 30mH MIN at 1KHz 1V

PF value: greater than 98%
Tested at 100kHz, 0.1Vrms inductance of 10%uH
DC current at which the inductance drops 10% (type) from itsvalue without current
Electrical characteristics at 25°C
Insulation: class B (130°C), class F (155°C), class H(180°C), class N (200°C) and class R (220°C)
Certifications: UL, CQC and CE
Excellent utilization of electricity, good for environment protection
Customized specifications are accepted

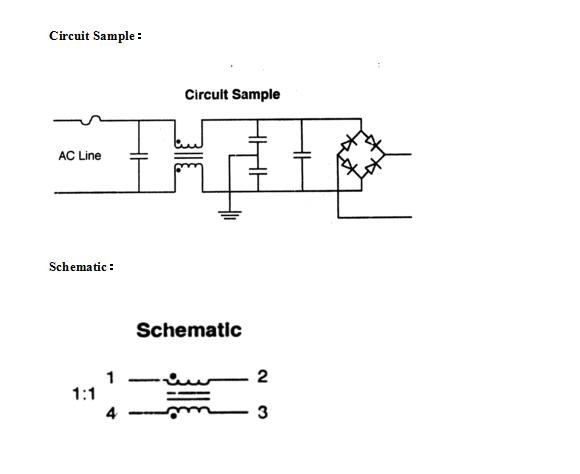

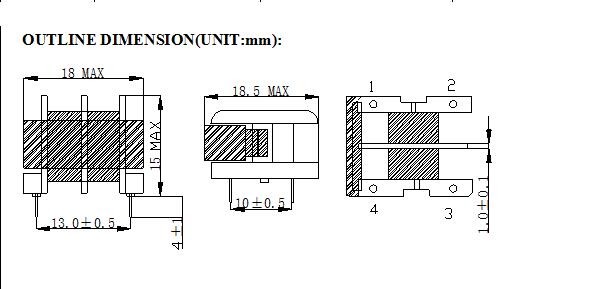

ELECTRICAL CHARACTERISTIC:
NO.	ITEM		MEASURE POINT		TECHNICAL DATA	REMARK
601	INDUCTANCE		L1-2=L4-3		0.6mH MIN	1KHz 0.25V
102	INDUCTANCE		L1-2=L4-3		1.0mH MIN	1KHz 0.25V
172	INDUCTANCE		L1-2=L4-3		1.7mH MIN	1KHz 0.25V
212	INDUCTANCE		L1-2=L4-3		2.1mH MIN	1KHz 0.25V
272	INDUCTANCE		L1-2=L4-3		2.7mH MIN	1KHz 0.25V
402	INDUCTANCE		L1-2=L4-3		4.0mH MIN	1KHz 0.25V
532	INDUCTANCE		L1-2=L4-3		5.3mH MIN	1KHz 0.25V
682	INDUCTANCE		L1-2=L4-3		6.8mH MIN	1KHz 0.25V
103	INDUCTANCE		L1-2=L4-3		10mH MIN	1KHz 0.25V
123	INDUCTANCE		L1-2=L4-3		12mH MIN	1KHz 0.25V
193	INDUCTANCE		L1-2=L4-3		19mH MIN	1KHz 0.25V
263	INDUCTANCE		L1-2=L4-3		26mH MIN	1KHz 0.25V
433	INDUCTANCE		L1-2=L4-3		43mH MIN	1KHz 0.25V
104	INDUCTANCE		L1-2=L4-3		104mH MIN	1KHz 0.25V
ALL	HI-POT		N1--N2		OK	2000V/50Hz/1mA/1S

Notes:
1. Wire:130°C or150°C.
2. The above specifications for the common specifications, customers can request custom design.

General information:
It is recommended that the temperature of the part does not exceed +125°C under worst case conditions.
Storage Temperature: -40°C to 85°C
Operating Temperature: -40°C to 125°C
Test conditions of Electrical Properties: 20°C, 33% RH if not specified differently

* With self-heating
** Maximum wet-bulb temperature 38°C, without dewing
*** Without dewing

Greenfair Electronics is one of the key electric enterprises in Shenzhen., professional in design and manufacture High Frequency Transformer, Power Transformer, Inductors, EMI equipment, SMT Magnetic Components, Network and Telecommunication Transformers, Automotive and Telecommunication Applications, etc., provide PCB design, electric circuit design. Moreover, besides standard products, we also provide an extensive range of customization services in order to cater for your special orders.

We have about 3800M production area with annual output up to 50,000,000pcs. And we have a labor force which has grown to more than 400, and own a professional group more than 30 members who hammer at technology and engineering craft.


We earned international approval from CE, UL, CQC, CSA, VDE and awarded the ISO9001:2000 Quality Management Certificate, Also, our company is well equipped with complete equipment and advanced assembly lines that have a enviable quality control and assurance system. We strongly believe that we could provide high quality produces and the best customer satisfaction service as well as the best competitive price to our customers at any time.

The key of our success is quality and customer service. We have a highly efficient team to deal with inquiries from customers. We are experienced in selling goods to Europe and Asia and enjoy a good reputation among clients.

We are seeking sincere cooperation with all interested companies.
