GWT850 / GWT750 Oven Connection Box Uncover Open Style For Freestanding Oven

Categories Oven Connection Box
Brand Name: TRIGONPOWER
Model Number: CONNECTION BOX_3P-1
Certification: CE, RoHs
Place of Origin: P.R.CHINA
MOQ: 5000
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100K / month
Delivery Time: 45days after order confirmed
Packaging Details: Carton / Pallet
TYPE: oven terminal box
STYLE: UNCOVER OPEN STYLE
CODE: CONNECTION BOX_3P-1
NOMINAL VOLTAGE: AC 400V
GLOW WIRE TEST: IEC60335-1:GWT850 & GWT750
IP CLASS: ip30
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

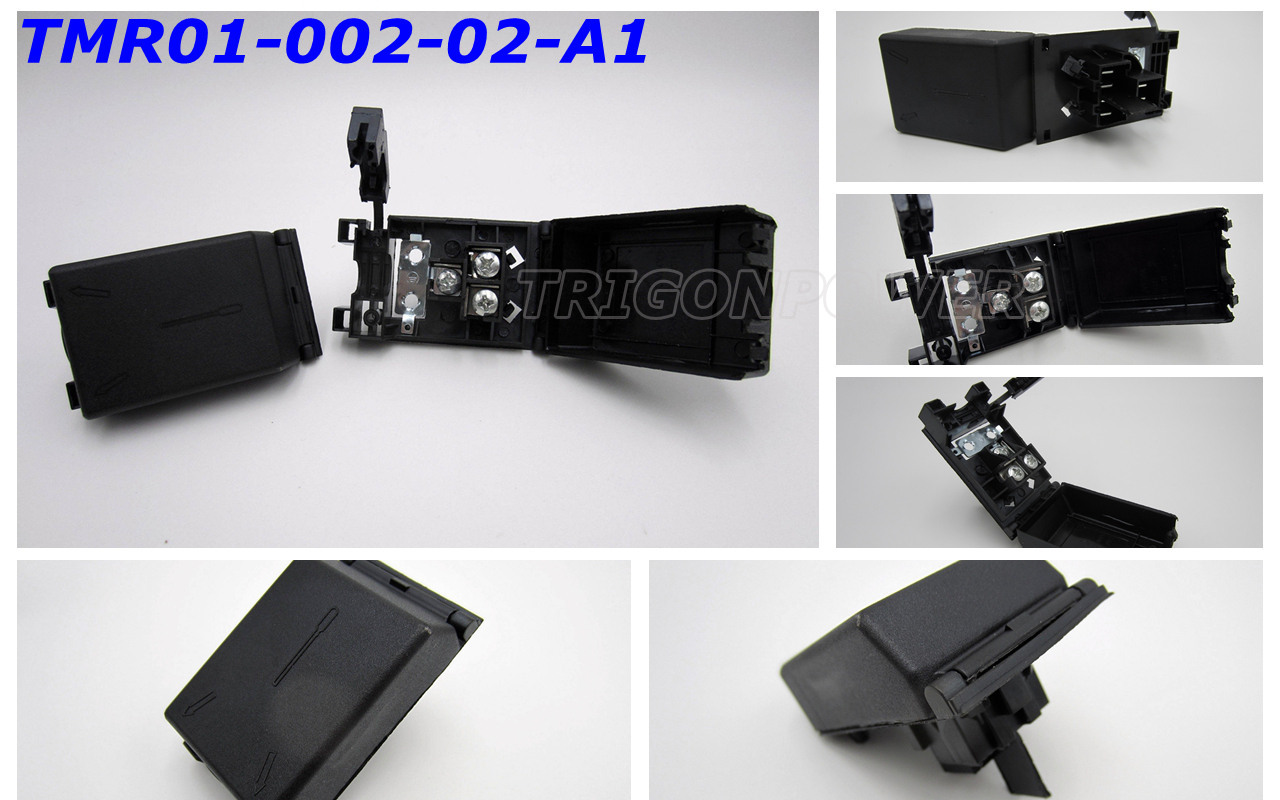

GWT850 / GWT750 Oven Connection Box Uncover Open Style For Freestanding Oven


Description:


The FASTON style terminal design could increase the efficiency and reliability of the wire connection. And the unique FASTON terminal design is not only convenient for wire connection process but also the good protection measure for the wire connection points.


Specifications:


TYPETERMINAL CONNECTION
STYLEFLIP-OPEN COVEROPEN STYLE
CONNECTION QTY6P3P3P
NOMINAL VOLTAGEAC 400V
NOMINAL CURRENTS40A16A
WORKING TEMP.T125 / T200
FLAME CLASSUL94 V0
GLOW WIRE TEST

IEC60335-1:GWT850 &

GWT750(2s extinguish or without flame)

TERMINAL SIZEFASTON 0.8X6.3 / 6 PCS
GROUND CONNECTORYES
CLAMPING RANGE0.75~1.5 MM2 FLEXIBLE WIRE
WIRE SKIN LENGTH9+1 MM
IP CLASSIP 30IP00
HOUSING MATERIALPA 66 / BLACK COLOR
SCREW MATERIALGALVANIZED STEEL M4X6
TERMINAL MATERIALGALVANIZED STEEL

Applications:


1. Freestanding Oven

2. Built-in Oven

3. Mini Oven

4. Microwave Oven

5. Gas Cooker

6. Other Home Appliances


Easy to install, clean, and maintenance


We set a elastic snap joint device on the housing, so you could easily install or remove the connection box on the oven machine. The housing is a sealed box, it could keep things like dust out. And the surface of the product is very smooth, it is convenient for clean and maintenance.


Long working lifetime


All of the metallic parts in the connection box are manufactured by high quality raw material. The high quality surface treatment, such as nickel plating, zinc plating, increase the metallic’s conductivity and anti-corrosion property. So our products could stably and continuously work for long time.
