1.5KGS 120W Flexible PV Solar Panels For Grid - Connected Power Generation System

Categories Flexible PV Solar Panels
Brand Name: SHINE OR OEM
Model Number: SN-H50W
Certification: CE, RoHS, SGS, LVD
Place of Origin: China
MOQ: 1
Price: negiotation
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 10000 pcs per month
Delivery Time: 5-8 days
Packaging Details: 10 pcs per carton and then on pallet.
Size: 1175*540mm
Weight: 1.5KGS
Color: White or Black
Junction box: IP65 with Diodes
Connectors: 90cm with MC4 connectors
Features: Corrosion Resistant, Flexible, Portable
Application: Boat/RV/Vehicle/Home
Warranty: 5 years
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

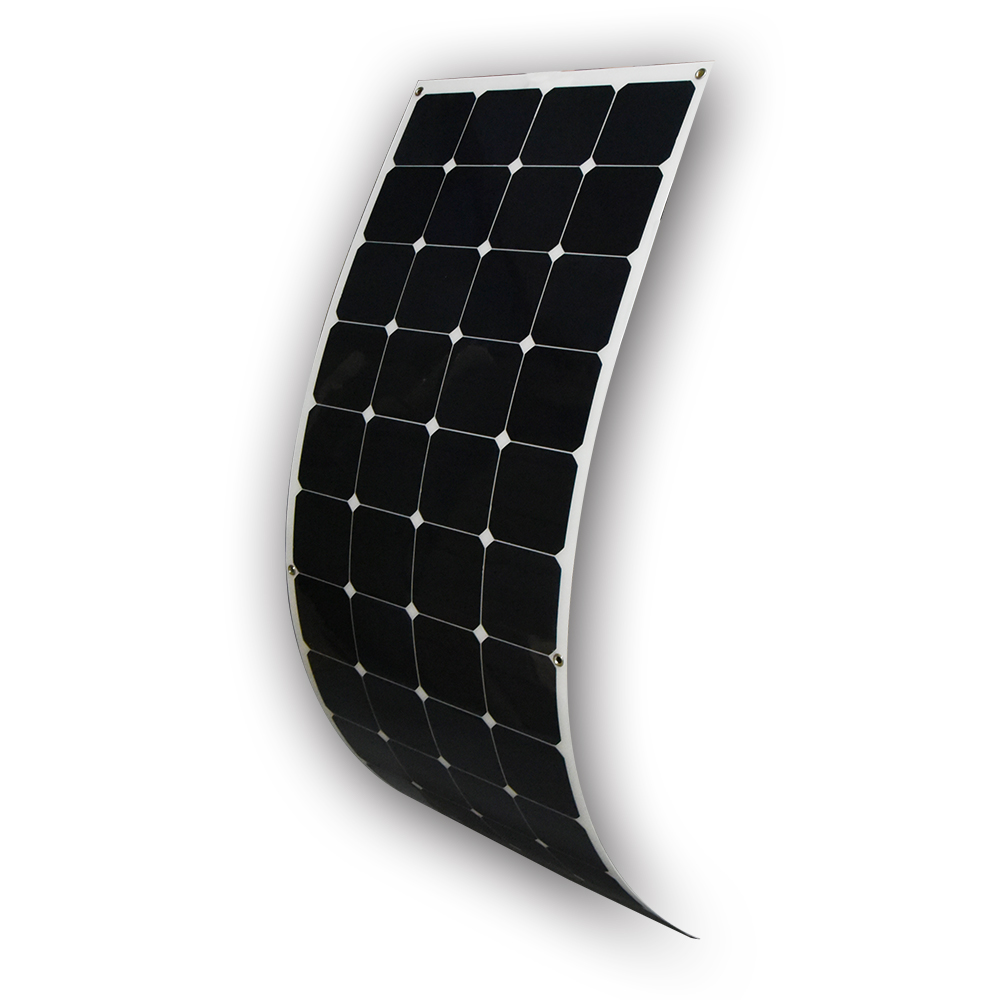

1.5KGS 120W Flexible PV Solar Panels For Grid - Connected Power Generation System

120W Flexible PV Solar Panels for boat, RV, caravan,roof with high quality


Specification Flexible solar panel :

1. Back contact solar panels for off-grid and on-grid systems

2. Sunpower cells from USA sunpower corporation

3. 19%-23% high efficiency.

4. Flexible and light weight


Features Flexible solar panel :

The high efficiency solar PV module adopts the world’s highest efficiency cell with efficiency up to 23%, and efficiency of the module is 25-30% higher than the traditional ones, this cell’s positive pole and the negative pole are on the same side, the cell’s front side can absorb maximum sunlight, so that it can get the maximum power.

Product Description
Sunpower Semi-Flexible Solar Panel
MODELPM/WVOC/VISC/AVMP/VIMP/AN/W(kg)DIMENSION
(mm)
SN-H18W18.0023.701.0319.400.930.32434*277*3
SN-H20W20.0025.001.0520.800.960.36455*277*3
SN-H25W25.0021.601.5018.001.400.45560*277*3
SN-H30W30.0021.201.8317.601.700.54535*378*3
SN-H50W50.0021.203.0517.602.840.90545*535*3
SN-H60W60.0021.003.8417.503.431.08725*535*3
SN-H90W90.0018.506.3015.205.901.60920*540*3
SN-H100W100.0021.605.9717.805.621.801050*540*3
SN-H110W110.0023.705.9119.805.561.981175*540*3
SN-H120W120.0026.405.8722.005.452.161305*540*3
SN-H135W135.0029.505.8224.905.452.431435*540*3
SN-H150W150.0032.005.9027.405.502.701300*660*3
SN-H180W180.0040.006.0033.005.453.241300*800*3
SN-H200W200.0042.006.3035.005.703.601435*800*3
SN-H220W220.0048.305.9039.805.453.961560*800*3
SN-H250W250.0054.006.1045.005.604.501810*800*3
SN-H300W300.0066.006.5055.005.455.401810*920*3
