ASTM A269 Sch5s Large Diameter Stainless Steel Pipe 10 Inch High Tensile Strength

Categories Large Diameter Stainless Steel Pipe
Brand Name: KAYSUNS
Model Number: KS-SMLS
Certification: PED,ISO
Place of Origin: China
MOQ: 500Kgs
Price: USD
Supply Ability: 500Tons per Month
Delivery Time: 30-45days
Packaging Details: Plastic Bags / Plywood Boxes
Material: 304, 304L, 316, 316L, 316Ti, 317L, 321, 321H, 347, 347H, 310S, 310H, 904L, 254SMO, etc.
Standard: ASTM A312, A213,A269
Process: Cold Drawn / Cold Rolled
Size: 1/2” to 60” (DN15 ~DN1500)
Type: Seamless
OD.: up to 1000mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

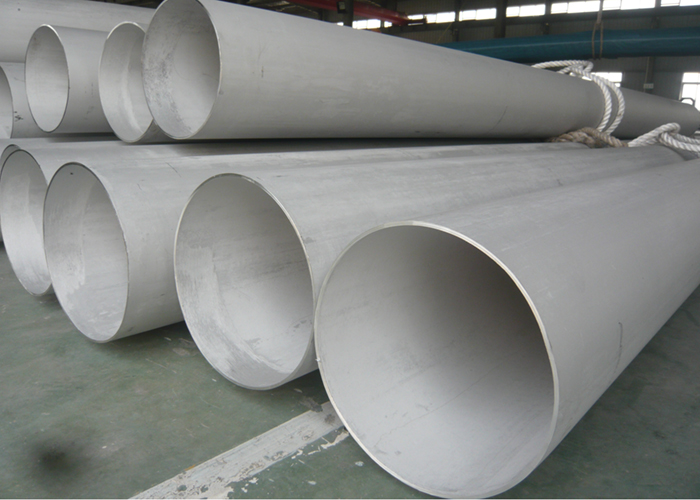

ASTM A269 Sch5s Large Diameter Stainless Steel Pipe 10 Inch High Tensile Strength

15 Inch Sch5s ASTM A790 / ASME SA790 TP316 Large Diameter Stainless Steel Pipe Austenitic


Steel pipes are found in a variety of places. Since they are strong, they are used underground for
transporting water and gas throughout cities and towns. They are also employed in construction to protect
electrical wires. While steel pipes are strong, they can also be lightweight. This makes them perfect for use
in bicycle frame manufacture.Other places they find utility is in automobiles,refrigeration units, heating and
plumbing systems, flagpoles, street lamps, and medicine to name a few.


Cold Rolling & Cold Drawing


Cold Rolling is a preferred production process for high precision seamless tube. Most of our heat exchanger tubing and mechanical tube are made by cold rolling. This technique provides a high forming rate, narrow tolerances and good turnouts. Now the biggest diameter we can get is 168.3mm for this process.

Cold Drawing is the general process for our tube and pipe. Pipe&tubes from this process can be got a a very narrow tolerance ranges, and keep the chemical element well. Additionally, the cold drawing process is the perfect choice for situations which place high requirements on the quality of the surface structure.


DNNPS(Inch)D(mm)SCH5SSCH10SSCH40SSTDSCH40SCH80XSSCH80SSCH160XXS
61/810.30-1.241.731.731.732.412.412.41--
81/413.70-1.652.242.242.243.023.023.02--
103/817.10-1.652.312.312.313.203.203.20--
151/221.301.652.112.772.772.773.733.733.734.787.47
203/426.701.652.112.872.872.873.913.913.915.567.82
25133.401.652.773.383.383.384.554.554.556.359.09
321 1/442.201.652.773.563.563.564.854.854.856.359.70
401 1/248.301.652.773.683.683.685.085.085.087.1410.15
50260.301.652.773.913.913.915.545.545.548.7411.07
652 1/273.002.113.055.165.165.167.017.017.019.5314.02
80388.902.113.055.495.495.497.627.627.6211.1315.24
903 1/2101.602.113.055.745.745.748.088.088.08--
1004114.302.113.056.026.026.028.568.568.5613.4917.12
1255141.302.773.406.556.556.559.539.539.5315.8819.05
1506168.302.773.407.117.117.1110.9710.9710.9718.2621.95
2008219.102.773.768.188.188.1812.7012.7012.7023.0122.23
25010273.103.404.199.279.279.2715.0912.7012.7028.5825.40



Composition:


Elements316L (wt%) S31603316 (wt%) S31600
(C) Carbon, max0.0350.08
(Mn) Manganese, max22
(P) Phosphorus, max0.0450.045
(S) Sulfur, max0.030.03
(Si) Silicon, max11
(Ni) Nickel10.0 - 14.010.0 - 14.0
(Cr) Chromium16.0 - 18.016.0 - 18.0
(Mo) Molybdenum2.0 - 3.02.0 - 3.0
(Fe) IronBal.Bal.
(Cu) CopperN/AN/A
(N) NitrogenN/A

N/A


C(max)Si(max)Mn(max)P(max)S(max)CrNiMoTi
TP304/1.43010.0801.002.000.0450.03018.0-20.08.0-10.5
TP304L/1.43070.0351.002.000.0450.03018.0-20.08.0-12.0
TP304H/1.49480.04-0.101.002.000.0450.03018.0-20.08.0-12.0
TP316/1.44010.0801.002.000.0450.03016.0-18.011.0-14.02.0-3.0
TP316L/1.44040.0351.002.000.0450.03016.0-18.010.0-14.02.0-3.0
TP316Ti/1.45710.0801.002.000.0450.03016.0-18.010.0-14.02.0-3.00.7>5x(C+N)
TP321/1.45410.0801.002.000.0450.03017.0-19.09.0-12.00.7>5x(C+N)
TP317L/1.44490.0801.002.000.0450.03018.0-20.011.0-14.03.0-4.0
TP347H/1.49120.04-0.101.002.000.0450.03017.0-19.09.0-13.0
TP309S/1.48330.0801.002.000.0450.03022.0-24.012.0-15.00.75
TP310S/1.48450.0801.002.000.0450.03024.0-26.019.0-22.00.75

Size:1/2” to 60” (DN15 ~DN1500), outer diameter up to 1500mm
Rate:SCH5S to SCHXXS
Standard:

ASTM A312, A213, A268,A269, A249, A270, A376,A511;
ASTM A789, A790;
ASTM B163, B165, B167, B407, B423, B444, B622, B677, B729;
EN10216-5, EN/DIN17455,EN/DIN17456, EN/DIN17458DIN2462 etc.

Material:

Stainless: TP304,304L,304H,316,316L,316H,316Ti,317,317L,309S,310S,310H,347,347H,321,321H, 904L, S31254
(mat.1.4301,1.4307,1.4948,1.4401,1.4404,1.4571,1.4438,1.4438, 1.4833,1.4841,1.4845,1.4845,1.4450,1.4541,1.4878,1.4539, 1.4547/254SMO) etc.


Duplex: UNS S31803 , S32205, S32750,S32760,S32304 (Mat.1.4462,1.4410,1.4501,1.4362)etc.


Alloy: Monel 400, Inconel 600, Inconel 625, Incoloy 800, Incoloy 800H, Incoloy 825, Hastelloy B2, Hastelloy C-22, Hastelloy C-276, 15-5PH, 17-7PH,Cu70Ni30(C71500/B30), Cu90Ni10(C70600/B10)etc.


4 Inch Sch5s ASTM A790 ASME SA790 TP316 Austenitic Stainless Steel Pipes Seamless
Our factory is a leading manufacturer and supplier for qualified Large Diameter Stainless Steel Pipes, includes ASME/ASTM, EN/DIN, JIS series stainless steel pipes, and a wide range for material grades.


For more information, please contact us.
