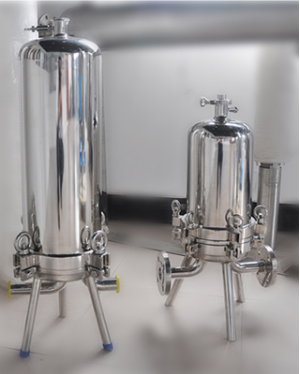

Small flow multi-cartridges industrial Filter Housing ,Stainless Steel 304 and 316L
Features:
● Clean-in-Place (CIP)/Steam-in-Place(SIP) Design
● Housings Accommodate From One(1) to Many 10”,20”,30” or 40” Cartridges
Suitable for small to large batch sizes and flow rates
● Mirror surface Finish Complete Stainless Steel Construction
Reduces bacterial/particle adhesion and no dead space
Excellent corrosion resistance
● Easy To Install Design With Sanitary Connections, Easy to Clean
Available in tri-clamp, flanged and thread connections
Requires minimum floor space and quickly dismantle for easy cleaning
Typical applications:
● Food and Beverage, Wine, Beer, Dairy, Mineral Water
● Paints, Inks Plating Solutions
● Process Chemicals and Electronics Industry
● Water Treatment, RO system
● Pharmaceuticals, API, Biologics
Technical Specifications:
| Material | Housing | Stainless Steel 304 and 316L for Choice | |
| O-Ring | Silicone, EPDM, Viton,etc | ||
| Surface Finish | Interior/Exterior | Electro polished, Ra≤0.2um | |
| Connections | Inlet/Outlet | Tri Clamp | 1” to 10” Or as your request |
| Flange | |||
| Thread | |||
| Vent | 1/4”female | ||
| Drain | 1” male or as your request | ||
| Lid/Cover Type | Swing Bolts OR Tri Clamp (only for single round ) | ||
| Designed Pressure | 10bar(145psi) with in 30mins | ||
| Operating Pressure | Max.7.2bar(108psi) | ||
| Temperature | Max.105℃(Design 140℃) | ||
| Cartridge Type | DOE(220), 222, 226, etc | ||
| Cartridge Capacity | 1, 3, 5, 7, .....30, 36, 45 round | ||
Cartridge Specifications:
| Cartridges | Body Closure | Dimensions(mm) | |||||
| Nos | Length | D(outlet/inlet) | D | B | H1 | H | |
| 1 | 5” | Ferrule Clamp | 1inch | 102 | 180 | 120 | 570 |
| 10” | 690 | ||||||
| 20” | 940 | ||||||
| 30” | 1190 | ||||||
| 3 | 10” | Stud Bolts | 1 1/4 inch | 184 | 240 | 280 | 720 |
| 20” | 980 | ||||||
| 30” | 1210 | ||||||
| 5 | 10” | Stud Bolts | 1.5inch | 219 | 280 | 200 | 130 |
| 20” | 990 | ||||||
| 30” | 1220 | ||||||
| 40” | 1460 | ||||||
| 7 | 20” | Stud Bolts | 1 3/4 inch | 273 | 420 | 210 | 1060 |
| 30” | 1290 | ||||||
| 40” | 1530 | ||||||
| ............ | |||||||
FAQ:
Q: Are you trading company or manufacturer ?
A: Yes, we are the manufacturer with continuous and improved R & D,
production, sales and service supply.
Q: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. or it is
15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge if the value is
not big, but the courier charge will be on your side.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30%
T/T in advance ,balance before shipment. ( Mainly accept Paypal,
West Union and T/T)
