Name: Natural Hydrophobicity Pleated Filter Cartridge 045 10um Micron Rating
Brand: DAITTO
Price: 1 USD

Product Details
Company Profile

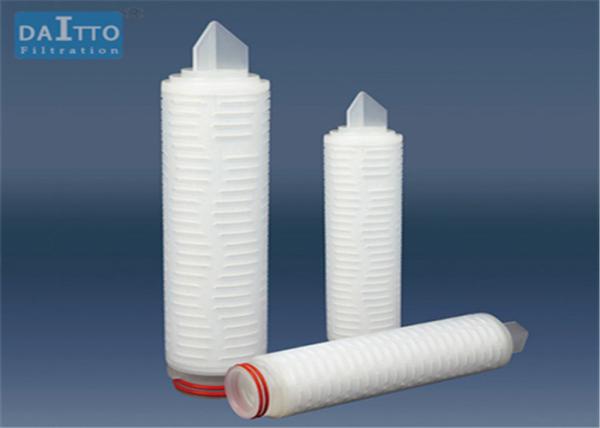

Natural Hydrophobicity Pleated Filter Cartridge 0.45 1.0um Micron Rating

PVDF Filter Membrane Pleated Filter Cartridge,Natural hydrophobicity
PVDF filter membrane is adopted in the product as filter media. The product is produced through overall sweat welding. The filter element completely passes through strict integration testing, thereby ensuring product performance.

Features:
● Natural hydrophobicity
● High temperature resistance and oxidation resistance
● Low initial pressure difference, high flux and long service life;
● 0.2 ~ 1.0um in liquid and 0.01 ~ 0.1um in gas;

Typical applications:
● Filtration of air in storage tank, mixing tank, etc.;
● Filtration of sterile gas in fermentation tank, etc.;
● Filtration of compressed gas and clean gas;
● Filtration of organic solvents

Integrity test:

Aperture(um)	0.2	0.45	1
Bubbling point in 100% isopropanpl(MPa)	≥0.05	≥0.05	≥0.01

Main application technical indicators:

Under the conditions of continuous use at the maximum operating temperature	90℃ 0.15MPa
Maximum operating pressure difference	0.42MPa/25℃
Maximum reverse pressure difference	0.21MPa/25℃
Effective filtration area(10 inches)	≥0.6㎡
Gas flow	≥0.6㎡/min 0.13MPa△P0.01MPa
Sterilization mode	stenilization by sterilization cabinet or online steam(121℃ or 135℃)sterilization

Ordering Information

Filter membrane	Rating(um)	Length(in)	End Cap Style	O-Rings/Gaskets	Center Core
PVDF	0.2	5	A=222/Fin	S=Silicone	P=PP
	0.45	10	B=226/Fin	V=Viton	ZP=strength PP
	1	20	C=Falt Gasket	E=EPDM	S=304SS
		30	D=222/Falt	B=Buna	SL=316SS
		40	E=226/Falt	F= encapsulated Viton
			F=226/Fin/SS insert
			G=222/Fin/SS insert
			Z=Custom

FAQ:
Q: Are you trading company or manufacturer ?
A: Yes, we are the manufacturer with continuous and improved R & D, production, sales and service supply.
Q: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge if the value is not big, but the courier charge will be on your side.
Q: What is your terms of payment ?
A: Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance ,balance before shipment. ( Mainly accept Paypal, West Union and T/T)
Shanghai Daitto Filtration now has quite a few products in stock in its factory. Also dealing with customized service, we warmly welcome you to buy or wholesale discount and cheap products at low price with us.

Product Tags:


*From:	Your email address is incorrect!
*To:	Daitto Filtration Group Company
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Pleated Filter Cartridge
Brand Name:	DAITTO
Model Number:	Pleated Filter Cartridge
Certification:	ISO
Place of Origin:	China
MOQ:	Negotiable
Price:	Negotiable
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	5000 pcs per month
Delivery Time:	within 15 days
Packaging Details:	standard export package
Type:	Pleated Filter Cartridge
Filter Media:	PVDF
Micron Rating:	0.2,0.45,1.0 um
Support Layers:	Polypropylene
O-Rings:	Nitrile, EPDM,Viton, ,Silicone
Length:	5",10" ,20",30",40"
