| Categories | Hybrid Stepping Motor |
|---|---|
| Brand Name: | AdamPower |
| Model Number: | 14HS24 |
| Certification: | ISO,CE,ROHS,CCC |
| Place of Origin: | China |
| MOQ: | 1 |
| Price: | 10-20USD/PC |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 100000PCS |
| Delivery Time: | 2-7 Days |
| Packaging Details: | Carton |
| Step Accuracy: | ±5% |
| Resistance Accuracy: | ±10% |
| Inductance Accuracy: | ±20% |
| Temperature Rise: | 80°C MAX |
| Ambient Temperature Range: | -20°C~ +50°C |
| Storage Temperature Range: | -30°C~ +60°C |
| Insulation Resistance: | 100M Ω MIN. 500V DC |
| Dielectric Strength: | 500V AC 1min |
| Radial Play: | 0.02mm MAX. (450g Load) |
| End Play: | 0.08mm MAX. (450g Load) |
| Max. radial force: | 28N |
| Max. axial force: | 10N |
| Company Info. |
| Shenzhen Adam Technology Co.,Ltd |
| View Contact Details |
| Product List |

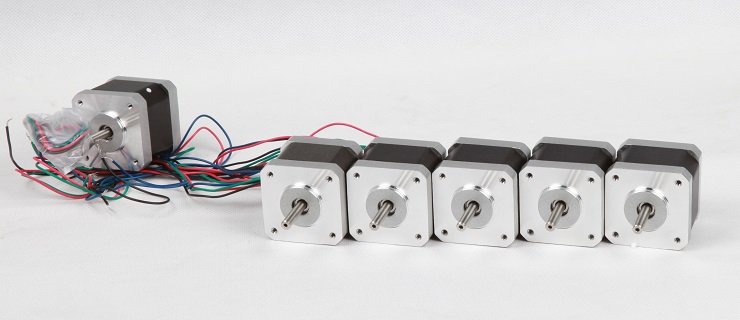

2phase NEMA14 Stepper motor
Electrical Specifications:
| Series | Step | Motor | Rated | Rated | Phase | Phase | Holding | Detent | Rotor | Lead | Motor |
| Mode | Angleº | Length | voltage | Current | Resistance | Indutance | Torque(MIN) | Toruue(MAX) | Torque | Wire | Weight |
| mm | v | A | Ω | Mh | N.cm | N.cm | g.cm2 | G | |||
| 14HS1404 | 1.8 | 20 | 10.8 | 0.4 | 27 | 17 | 6.5 | 0.5 | 8 | 4 | 100 |
| 14HS1604 | 1.8 | 20 | 11.3 | 0.45 | 25 | 9 | 5 | 0.5 | 8 | 6 | 100 |
| 14HS1407 | 1.8 | 20 | 6.57 | 0.73 | 9 | 4 | 6 | 0.5 | 8 | 4 | 100 |
| 14HS2604 | 1.8 | 28 | 12 | 0.4 | 30 | 11 | 9 | 0.8 | 11 | 6 | 120 |
| 14HS2405 | 1.8 | 28 | 10 | 0.5 | 20 | 14 | 10 | 0.8 | 11 | 4 | 140 |
| 14HS2406 | 1.8 | 28 | 4 | 0.8 | 5 | 5 | 12 | 0.8 | 11 | 4 | 120 |
| 14HS3604 | 1.8 | 33 | 12 | 0.4 | 30 | 22 | 12 | 1 | 13 | 6 | 160 |
| 14HS3605 | 1.8 | 33 | 11 | 0.5 | 22 | 12 | 10 | 1 | 13 | 6 | 170 |
| 14HS3408 | 1.8 | 33 | 5.2 | 0.8 | 6.5 | 9.8 | 18 | 1 | 13 | 4 | 160 |
Mechanical Dimensions and Wiring Diagram:
Double Shaft Type stepper motor for CLOSED loop working.
Shaft Mode can be customized as the requirement.
Lead Wire Mode Options:
Note: The Stepping Motors Can be integrated with driver or controller as above.
|
