BDS400 100X dry objectiev Optical Inverted Metallurgical Microscope

Categories Inverted Metallurgical Microscope
Brand Name: NO
Model Number: MDS400
Certification: ISO9001, ISO14001, ISO13485, CE, RoHs
Place of Origin: China
MOQ: 1 unit
Price: Discuss
Payment Terms: T/T
Supply Ability: 2000 Units per year
Delivery Time: 10-20 work days
Packaging Details: Carton
Darkfield: 5X, 10X, 20X, 50X,80X objective
Eyepiece: 10X-22mm (adjustable)
100X Objective: Dry
C-mount: 1X, 0.5X
Illumination: 12V50W
Input Voltage: 100V-240V
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

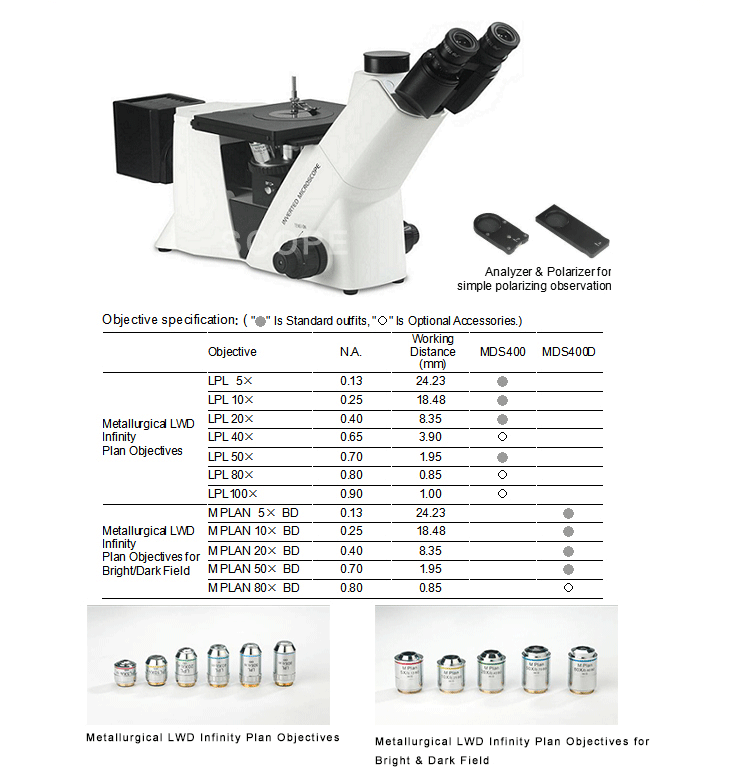

BDS400 100X dry objectiev Optical Inverted Metallurgical Microscope

100X Dry Objective Laboratory Biological Microscope Polarizing Infinity Darkfield BDS400 Optical Inverted Metallurgical Microscope/Inverted metallographic microscope


BDS400 Inverted Metallurgical Microscope is a kind of metallurgical microscope whose objectives are under the wprking mechanical stage. The special design is for observing and operating specimen more convenient, especially for specimen of height. BDS400 inverted Metallographic microscope is used for material surface observation and mechanical state detection.



ItemSpecificationMDS400MDS400D
EyepieceWF10×/22mm(adjustable)
WF10×/22mm(adjustable,reticule 0.1mm)

Metallurgical LWD Infinity

Plan Objectives

LPL 5×/0.13W.D=16.04mm
LPL 10×/0.25W.D.= 18.48mm
LPL 20×/0.40W.D.= 8.35mm
LPL 50×/0.70W.D.= 1.95mm
LPL 80×/0.80W.D.= 0.85mm
LPL 100×/0.90(Dry)W.D.= 1.10mm

Metallurgical LWD Infinity

Plan Objectives for Bright & Dark Field

M PLAN 5×/0.13 BDW.D=16.04mm
M PLAN 10×/0.25 BDW.D.= 18.48mm
M PLAN 20×/0.40 BDW.D.= 8.35mm
M PLAN 50×/0.70 BDW.D.= 1.95mm
Seidentopf Trinocular Head

Inclined 30°, interpupilary distance: 48-76mm

Light distribution (both):100: 0(100% for eyepiece)

80:20(80% for trinocular head,and 20% for eyepiece)

NosepieceQuintuple
Quadplex (specially for bright /dark field objectives)
Mechanical StageStage size: 210 mm×180mm, Moving range:50×50mm , Scale : 0.1mm
Coaxial Coarse and Fine Focusing unit

Coarse stroke: 10mm,

Fine stroke per rotation: 0.2mm, fine division 2 μm.

Polarizing UnitPolarizer /Analyzer
llumination12V/50W Halogen(Input voltage:100V~240V)
FilterBlue

Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.
