Science Research Binocular Compound Microscope For Criminal Investigation Fields

Categories Polarized Light Microscopy
Brand Name: NO
Model Number: BK-POLF
Certification: ISO9001, ISO14001, ISO13485, CE, RoHs
Place of Origin: China
MOQ: 1 unit
Price: Discuss
Payment Terms: T/T
Supply Ability: 1000 units per year
Delivery Time: 10-20 work days
Packaging Details: Carton
Illumination: Reflecting
System: Infinity
Objective: Non-stress
Nosepiece: Quintuple (center adjustable)
Stage: Rotatable 360°, center adjustable
Swing-out Condenser: N.A.0.9/0.13
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

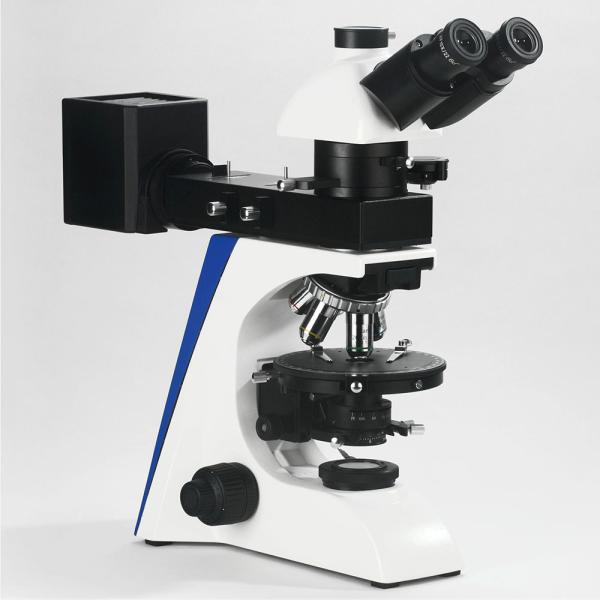

Science Research Binocular Compound Microscope For Criminal Investigation Fields

BK-POLF Polarizing Science Research Geologic Infinity Industrial Microscope


Also named mineralogical microscope, is necessary for researching double refraction sample, which is widely used in geology, mineral, chemical industry, medical, drug, criminal investigation fields etc.

● Professional binocular head can keep the cross in the right-hand eyepiece always same when the eyepiece tubes turned.

● Analyzer unit : 360° rotatable analyzer with division, can be locked and moved out of the light path.

● Centering nosepiece, non-stress infinity plan objective.

● Rotatable 360° stage , division 1°, vernier division 6’, adjustable center which can be locked.

● Polarizing unit: rotatable 360°, scaled, can be locked.


ObjectiveN.A.

Working distance

(mm)

BK-POL

(T)

BK-POLF

(R)

BK-POLR

(T&R)

Non-stress Infinity Plan Objective

(Transmitting)

PLAN 4X0.1012.10
PLAN 10X0.254.64
PLAN 20X (S)0.402.41
PLAN 40X (S)0.660.65
PLAN 60X (S)0.800.33

Non-stress

LWD Infinity

Plan Objective

(Reflecting)


LPL 5X0.1324.23
LPL 10X0.2518.48
LPL 20X0.408.35
LPL 50X (S)0.701.95

Objective Specification:("●" is standard outfits, "○" is optional accessories.)
