10X-20mm Eyepiece Trinocular Research Microscope , Trinocular Metallurgical Microscope

Categories Trinocular Biological Microscope
Brand Name: NO
Model Number: BK5000
Certification: ISO9001, ISO14001, ISO13485, CE, RoHs
Place of Origin: China
MOQ: 1 unit
Price: Discuss
Payment Terms: T/T
Supply Ability: 8000 units per year
Delivery Time: 10-20 work days
Packaging Details: Carton
Head: Trinocular
Optical: Infinity
Objective: Infinity Plan
C-mount: 1X, 0.5X
Illumination: LED or Halogen
Eyepiece: 10X-20mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

10X-20mm Eyepiece Trinocular Research Microscope , Trinocular Metallurgical Microscope

BK5000 Laboratory Infinity LED Halogen Illumination Trinocular Biological Microscope

10X-20mm Eyepiece Trinocular Research Microscope , Trinocular Metallurgical Microscope

Product Details


This LED trinocular compound microscope includes a 30° inclined 360° swiveling trinocular sliding viewing head, two pairs of widefield eyepieces, four infinity Plan achromatic objectives, stain-resistant double layer mechanical stage with scales, coarse & fine focusing, NA 1.25 Abbe condenser, variable intensity LED transmitted illumination. It offers six levels of magnification power: 40X-100X-200X-400X-1000X.

Product Parameter


EyepieceWF10×/22mm (adjustable)
Infinity Plan Objectives

PLAN 4×/0.10,PLAN 10×/0.25,PLAN 20×/0.40(S),PLAN 40×/0.66(S),

PLAN 100×/1.25(S, Oil)

Seidentopf Trinocular HeadInclined 30°, rotatable 360°, Interpupilary distance:48mm-76mm
Light distribution (both): 100: 0 & 80:20
NosepieceQuintuple
Mechanical StageIntegrated Stage size: 182 mm×140mm,Travel range: 77mm×52mm
Swing Out CondenserN.A. 0.9/0.13, Swing out with iris diaphragm.
Koehler Illumination6V/30W Halogen Lamp
Wide voltage input: 100V~240V

Field diaphragm , center adjustable

C-mount0.5× C-Mount (focus adjustable)

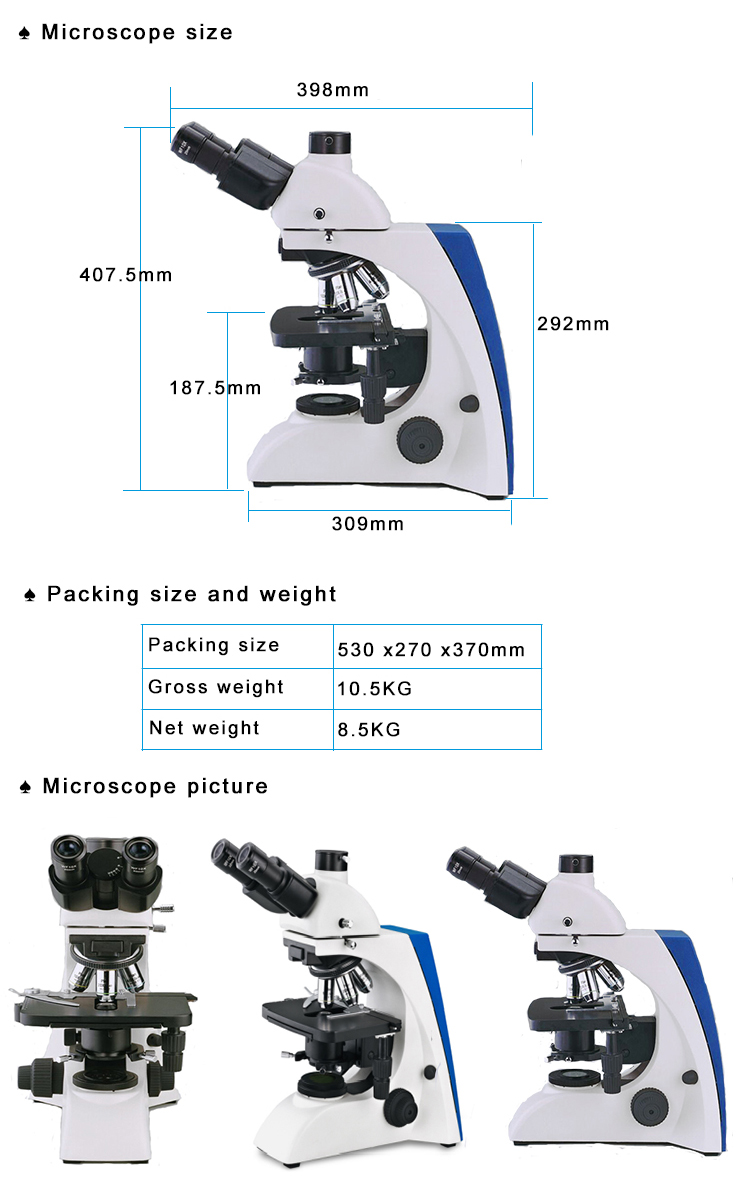

Product Display


Product Certification
