High Dimensional Accuracy Steel Tire Cord 2x2x0.28 With Excellent Surface Coating

Categories	Tyre Steel Wire
Brand Name:	FUXING
Model Number:	2x2x0.28
Certification:	ISO9001, CE, Lloyd's, ISO14001, OHSAS18001
Place of Origin:	CHINA
MOQ:	1 TONS
Price:	Negotiable
Payment Terms:	T/T, L/C
Supply Ability:	15000 Tons per month
Delivery Time:	10-15days
Packaging Details:	Pakcked in B40, B60 or B80 Steel Spool
Raw Material:	72A
HS Code:	73121000
Usage:	Used For Metal Carcass Material
Standard:	ASTM, BS, DIN, GB, JIS
Wire Gauge:	0.15-0.35mm
Surface treatment:	Brass or copper coated
Lay Direction:	Z or S type
Tension Grade:	HT,NT,ST,PST,HE,HI,UT

Contact Now

Add to Cart

Company Info.

HUBEI FUXING NEW MATERIAL TECHNOLOGY CO.,LTD

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

High Dimensional Accuracy Steel Tire Cord 2x2x0.28 With Excellent Surface Coating

Description:

Steel cord is the fine steel wire strand or rope for special purposes, which are made of superior high-carbon steel and whose surface is plated with brass.

It is mainly applied in car tyres, light truck tyres, cargo truck tyres, heavy equipment tyres and plane tyres and other rubber framework materials.

The radial tyre that uses steel cords as the reinforcing material demonstrates the merits of long service life, fast driving speed, puncture-resistant, high f lexibility, being safe
and comfortable and fuel-saving, etc. Steel cord is a steel radial tire reinforcement product that stablizes tires during long hours of extreme driving long hours of extreme driving conditions.

Performance Comparison

SPECIFICATIONS OF STEEL CORD FOR RADIAL TYRES
SPECIFICATION	LAY DIRECTION	LAY LENGTH mm± 5%	DIAMETER mm	LINEAR DENSITY g/m	BREAKING FORCE N
3+9+15— 0.175+0.15	S/S/Z/S	5/10/16/3.5	1.34± 0.06	5.42± 0.190	1680
3+9+15— 0.22+0.15	S/S/Z/S	6.3/12.5/18/3.5	1.62± 0.08	8.5± 0.300	2600
340.22HE	S/S	3.0/6.3	1.14± 0.07	3.96± 0.200	945
3* 7*0.20HE	S/S	3.9/6.3	1.14± 0.07	5.770± 0.230	1325
3+9*0.22+0.15HT	S/S/Z	6.3/12.5/3.5	1.17± 0.06	3.85± 0.19	1410
3*0.20+6— 0.35HT	S/Z	10.0/18.0	1.12± 0.06	5.34± 0.27	1850
3+8*0.33HT	S/S	10.0/18.0	1.36± 0.07	7.84± 0.37	2650

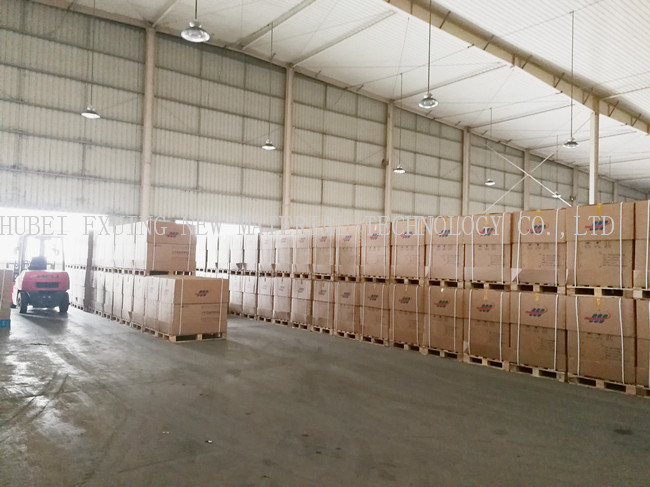

WAREHOUSE PHOTO
