| Categories | Through Bore Slip Ring |
|---|---|
| Brand Name: | JARCH |
| Model Number: | JSR-WR012-6P05-FL |
| Certification: | CE,FCC |
| Place of Origin: | Guangdong, China (Mainland) |
| MOQ: | 1 pcs |
| Price: | USD$500/PCS |
| Payment Terms: | L/C, D/P, T/T, Western Union, MoneyGram,PAYPAL |
| Supply Ability: | 500PCS/WEEK |
| Delivery Time: | 10 WORKING DAYS |
| Packaging Details: | Standard Export Package |
| Material: | Stainless steel housing material |
| Application: | underwater operation and waterproof work |
| Protection grade: | IP68 |
| Underwater operation depth: | 10 meters |
| Circuits No: | 6 Circuits |
| Current power: | 5A |
| Body dimension: | 12mm |
Mainly applied production equipments such as beer machine,liquid filling machine
Static sealing with O-ring and dynamic sealing of rotation position with abrasion resistant & anti-corrosion Glyd ring for longer life
| |||||||||||||||||||||||||||||||||||||||||||||||||||
Waterproof Slip rings are designed specifically for underwater operarion equipment, on board equipment and waterproof work.
Advantages of waterproof slip ring:
1. Industrial grade products:IP65.IP68 protection grade;
2. Gold to gold contact: adopting imported seals and military grade plating treatment;
3. Multi-point contacts: outgoing line uses waterproof gran circle and cable.

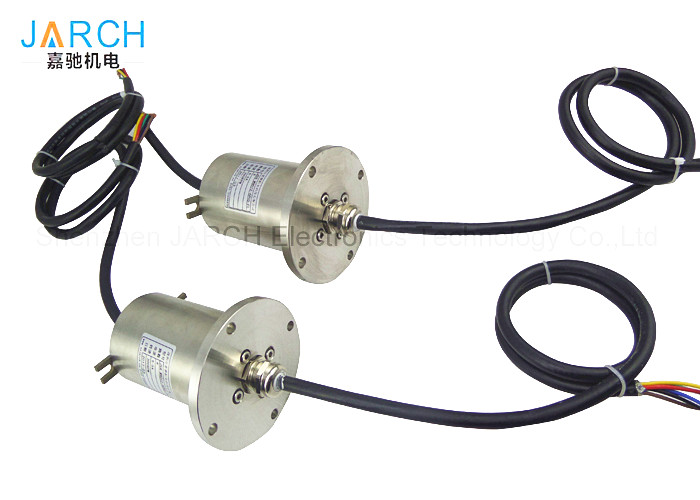

JARCH S136L Stainless steel housing material 2 circuits 5A of IP68 Waterproof slip ring
Related Products
1. Fiber optic rotary joint series
2. Through bore slip ring series
3. Electro optical slip ring series
5. Pneumatic rotary joint series
6. Hydraulic rotary union series
9. High current slip ring seriels
10.High speed slip ring series
11.Thermocouple slip ring series
13.Wind turbine slip ring series
15.Explosion proof slip ring series
JARCH is a professional Slip Ring & Routry Joint manufacturer in Shenzhen, China. JARCH has become one of the best-known Chinese brands in the world for high quality slip rings and first-rate services. Since we were founded in 1998, we have been committed to innovating, developing and manufacturing high quality slip rings and providing perfect rotation solutions for customers around the world.
| Packaging Details: | Standard Export carton Package |
| Delivery Detail: | Sample 3 days / Order depends on quantity Shipping:BY DHL, FedEx, UPS or TNT...... |
FAQ
A:
If you want to costomize the special slip ring model, you need provide details as below:
a. Operatring speed(RPM)
b. The type of installation
c. Outline size
d. Channels(the No. of single wire besides cable)
e. Rated voltage & current for power rings and signal rings
f. The signal type and related parameters(very important)
g. Operating temperature h.IP(sealing requirements)
2.How long is your production lead time?
A: It needs 7 to 15 days for standard products, 10 to 20 days for
simple customized products,
15 to 40 days for complex customized porducts.
If you have any questions, pls contact us without any hesitation.
|
