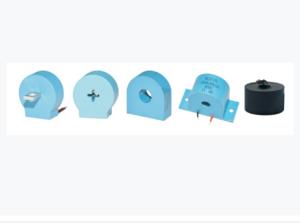

T Series Current Transformer For Energy Meter Anti Burning ABS Housing

T Series Current Transformer For Energy Meter Anti Burning ABS Housing

Features

1. Adopted high permeability core, high accuracy, and excellent linearity performance.

2. Fully enclosed case, with high function of current isolation and nice outline.

3. Mini size, little weight and easy to install.

4. Linear output with high accuracy current.

5.DC Immunity function.

Application:

Single and multi-phase electronic energy meters.

DESCRIPTION:

1.Electrical Parameters

1. Housing material: Anti-burning ABS.

2. Encapsulation: Anti-burning epoxy resin.

3. Ambient temperature: -40℃ ~ +75℃.

4. Insulation resistance: ≥500MΩ(DC500V).

5. Dielectric strength : 4000VAC 1mA 60S.

Specification:

Dimension

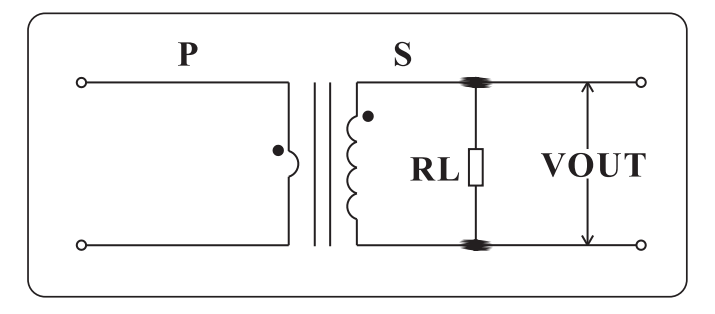

Circuit Diagram

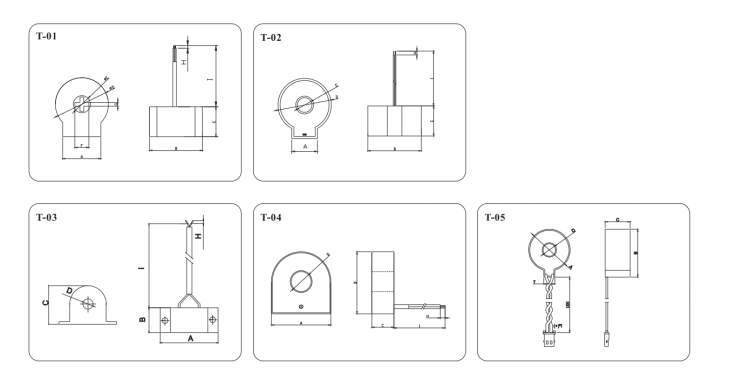

Outline Drawing:
