Chuangyin 12kV MV CT Current Transformer for Air Insulation Switchgear

Type test report Proved 12kV MV CT Current Transformer for Air Insulation Switchgear

We are manufacturer for instrument transformer

CE Proved 12kV MV Current Transformer for Air Insulation Switchgear

12kV indoor single phase epoxy resin type

1. Product Introduction:

Chuangyin type LZZBJ9-12/150b/2, LZZBJ9-12/150b/4 current transformer.

Epoxy resin casting insulation and fully enclosed support construction, encloses the primary & secondary windings and annular core in the epoxy resin casting body.

The product has the feature of light weight, omni-directional installation, withstanding nastiness and dampness.

It is widely used for measuring current, electric energy and protective relaying in the electrical system with the rated frequency 50Hz or 60Hz and highest voltage for equipment 12kV.

2. Technical Data:

1). Rated insulation voltage: 12/28/75kV.

2). Rated frequency: 50/60hz

3). Installation Site: Indoor

4). Standards: IEC60044-1(IEC61869-1&2) Part 1: Instrument transformers-Part1: Current transformers

3. Specification:

Single ratio--Chuangyin type LZZBJ9-12/150b/2

Rated current ratio (A)	Accuracy classes combination	Rated output (VA)			FS	ALF	Rated short-time thermal current (kA/S)	Rated dynamic current ( kA)
		Measuring		Protective
		0.2(S)	0.5	10P
10-200/5	0.2(S)/0.2(S) 0.2(S)/0.5 0.2(S)/10P 0.5/10P 0.2S/0.5/10P 0.2/0.5/10P	10 15	15	15	5 (10)	10 15 20	100I1n	250I1n
300/5							31.5	80
400/5							31.5	80
500/5							40	100
600/5							50	125
800/5				20			63	125
1000/5							80	160
1200,1250/5							100	160

Double ratio:Chuangyin type LZZBJ9-12/150b/4

Rated current ratio (A)	Accuracy classes combination	Rated output (VA)			FS	ALF	Rated short-time thermal current (kA/S)	Rated dynamic current ( kA)
		Measuring		Protective
		0.2(S)	0.5	10P
10-20/5	0.2(S)/0.2(S) 0.2(S)/0.5 0.2(S)/10P 0.5/10P	10 15	15	15 20	5 (10)	10 15 20	1.5	3.75
20-40/5							3	7.5
50-100/5							8	20
100-200/5							15	37.5
200-400/5							30	75
400-800/5							63	130
500-1000/5							63	130
600-1200/5							80	160

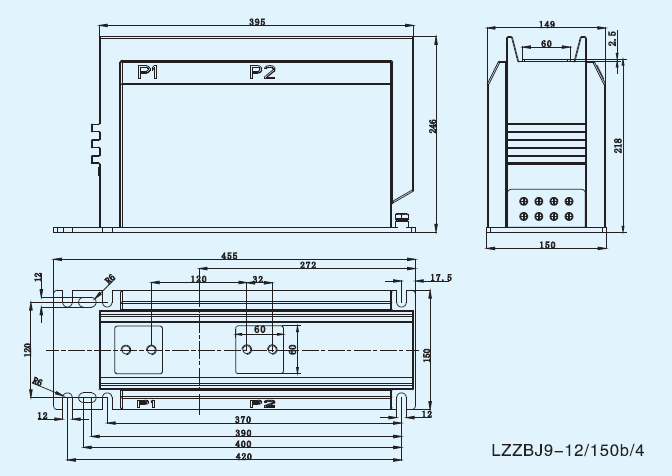

4. Outline Drawing:

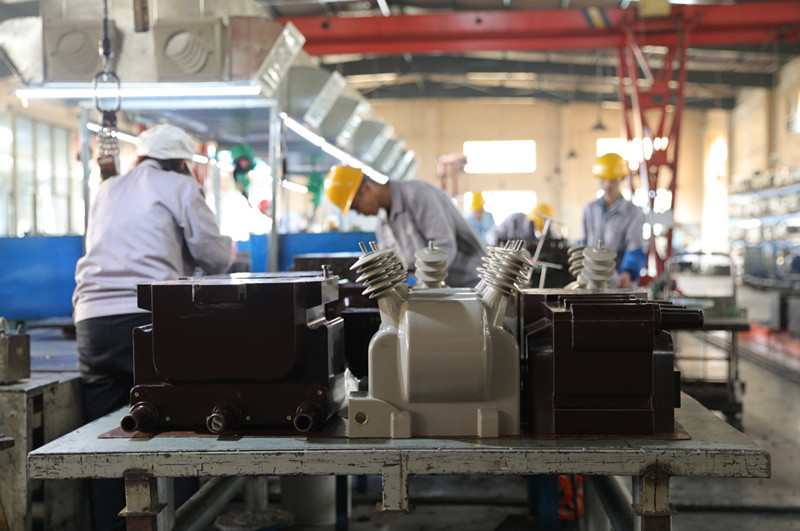

5.Photos:

Remarks:
Upon request we are glad to offer current transformer, voltage transformer, separable connector, cold shrink termination & joint according to other standards or with non-standard technical specs.
The quality is assurance, the reasonable price, welcome to order, ordering or the proxy.
Thank you very much!
