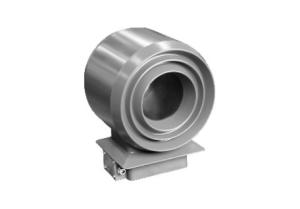

Outdoor Single Phase Epoxy Resin MV Current Transformer Easy Installation

17.5(24)kV Medium Current Transformer Outdoor Single-Phase Epoxy Resin KEMA Proved Protection Type Easy Installation​

1. Product Introduction:

Current transformer, is widely used for measuring current, electric energy and protective relaying in the electrical system with rated frequency 50Hz or 60Hz and highest voltage for equipment 24kV.
The product has three secondary windings (one measuring winding & two protective windings or two measuring windings &one protective winding). Rated primary current is 400-10000A and
rated secondary current is 5A.

Technical Data

1. Rated insulation level: 24/50/125 kV
2, Rated frequency:50/60Hz
3, Installation site:Outdoor
4, Technical standard:IEC 60044-1
(IEC 61869-1&2)

Specification:

Remarks: Upon request we are glad to offer transformers according to other standards or with non-standard technical specs.

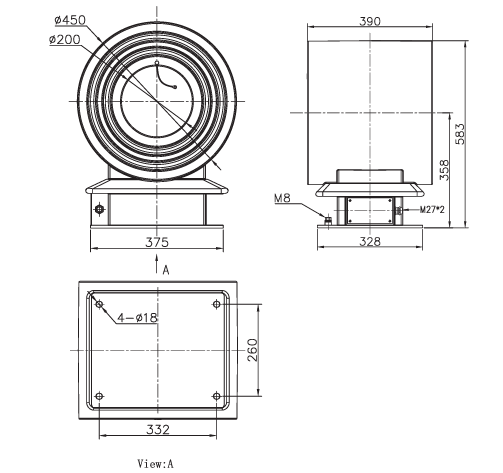

Outline drawing

Company information:

Shenzhen Chuangyin Co., Ltd has three manufacturing bases ,they are Jiangxi Chuangyin Co.,Ltd, Zhuhai Chuangyin Co.,Ltd and Joint-Venture Adex-Chuangyin Electric Co.,Ltd(Bangladesh); with 40,000 square meters of modern standard workshop and a number of first-class production line and test equipments, by many years’ experience for three dedicated engineering teams, the annual output of medium &low current transformer and voltage transformer is more than 36000 sets and CT, relay is more than 25 million pcs.

Since established in 2002,Chuanyin has been operating international management system and viewing quality as our life, the pass rate of products is always 99.9999%.we also have established a strict quality control system from material to whole process control. Factories and products have passed ISO9001:2015, ISO 14001：2015， ISO 45001:2018 UL, CQC, CE, KEMA CNAS certificates.

ISO 9001-2015 COMPLETA.pdf

Chuangyin’s product is well known with high accuracy, good stability, high efficiency, reasonable price and on-time delivery. With strong R&D strength and first-class product, good reputation has been gotten from domestic and oversea market. Customers are throughout more than 30 countries in the word. Chuangyin has become the one of largest and professional manufacturer of CT,PT and relay in China.
