| Categories | Coal Mining Lights |
|---|---|
| Brand Name: | Green Lighting |
| Model Number: | GL12-A |
| Certification: | CE, ATEX,ROHS |
| Place of Origin: | Shenzhen China |
| MOQ: | 1piece available |
| Price: | can be negotiable |
| Payment Terms: | L/C, T/T, Western Union for 100% Payment Before Shipping |
| Supply Ability: | 10000 pieces per month |
| Delivery Time: | sample order for 3-7 working days, bulk order within 10-25 working days |
| Packaging Details: | 1 lamp and 2A charger in colorful gift box; can be customized as your request |
| Type: | Headlamps |
| Waterproof grade: | IP68 |
| Brightness: | 25000lux |
| Power of main light: | 3W |
| Charger: | 2A charger (fast charging) |
| Lighting cup material: | Aluminum |
| Lighting Levels: | Normal-strong-auxiliary-sos |
| Color: | Yellow and black (can be customized) |
| Usage: | Industrial and emergency |
| Service: | OEM ODM available |
25000 Lux Waterproof High Power Coal Mining Lights , Underground Industrial Miner Cap Lamp
Function of GL12-A 25000Lux mining lamp:
1. Advocate the lamp two levels of light. (ML and AL)
2. Low power Warning Function.
3. SOS mode.
4. Support 2A charger.
5. Drop resistance: Military engineering plastic shell.
6. Usage with Hazardous area.
Waterproof, explosion proof and compact resistant and flame retardant.
7. aluminum led light cup, good heat dissipation effect.
Main Features for Model GL12-A mining headlamp with cable:
1. Brightness: 25000lux high beam headlamp with cable.
2. Portable: lightweight 490g and big battery capacity 10.4Ah.
3. Fast charging: 2A charger, charging time less than 8hours
4. Better lighting spot: adopt aluminum lighting cup.
5. SOS for low power warning function for safety headlamp.
6. Good Appearance and High quality material.
7. Enviromental: Lithium battery with short circuit protection, over charging protection and over discharging, free mataince long battery life span.
8. OEM and ODM available. Write the request to cap lamps, such as clients company name, LOGO, seriey No and user name.
9. Optical Design: According to LED Luminous Flux, Light cup curve and current to design the Light Beam.
Main parameter of rechargeable led headlamp:
| Specification | GL12-A | ||||||
| Light sources | One main light and two auxiliary lights | ||||||
| Rated voltage | 3.7V | ||||||
| Battery capacity | 10.4Ah | ||||||
| Main light current(strong light) | 850mA | ||||||
| Main light current (working light) | 450mA | ||||||
| Power of the main light(strong light) | 3W | ||||||
| Power of the main light(working light) | 1.8W | ||||||
| luminous(strong light) | 348Lum | ||||||
| luminous(working light) | 240Lum | ||||||
| Brightness of the main light(strong light) | 25,000Lux | ||||||
| Brightness of the main light(strong light) | 15,000Lux | ||||||
| LED lifespan | 10,000hours | ||||||
| Battery cycles | 1200cycles | ||||||
| Working time | 13-15hours | ||||||
| Cable length | 1.2m or 1.6m can be customized | ||||||
| Weight | 490g | ||||||
| Water-proof grade | IP68 | ||||||
| Light switch | Microswitch | ||||||
| Certified | CE&ATEX, ROHS |

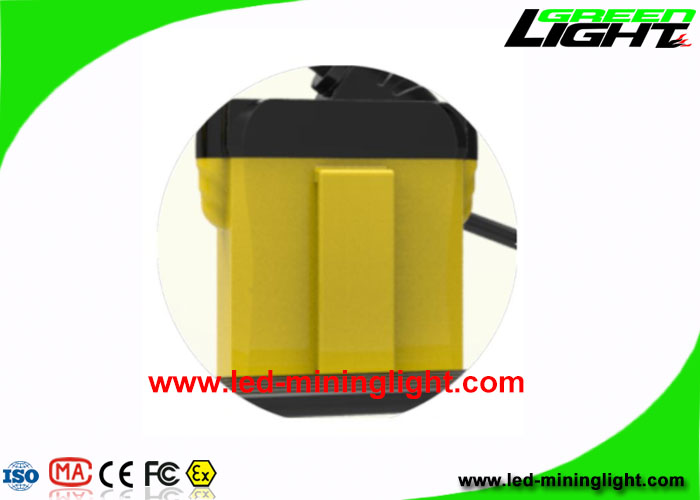

Detailed Pictures shown as following:
Usage of led miners caplamps
Suitable for explosive gas environment zone1,zone2 locations.
Suitable for combustible dust environment 20 zone,21zoneand22zone places.
Suitable for A,II B,IIC explosive gas environment.
Suitable for:indoor,outdoor 1.8-3.5 meters in height.
Industrial Applications of led miners caplamp
Widely used in petrochemical,chenical,nuclear power ,military automobile shipbuilding industries suitable for oil pipelines,cable interlayer,platform channel,pump house. Tunnel Project,Mountian climbing,hiking,Patrolling,Ovehauling and Emergency in electrical power company,Mine,Military Police,Fire Fighting,Dockyard and other hazardous locations ect.
