Manufacturer | Cisco |

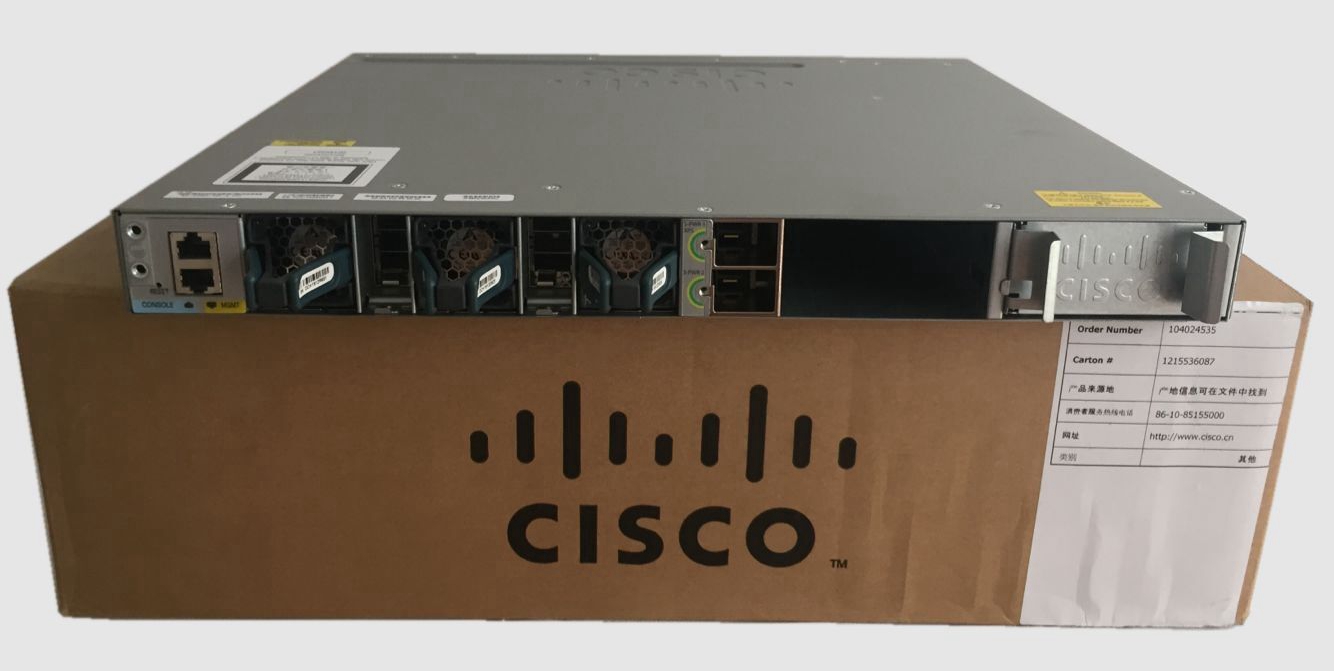

Product Description | Cisco Catalyst 3850-48F-L - switch - 48 ports - managed - desktop,
rack-mountable |
Device Type | Switch - 48 ports - managed - stackable |
Enclosure Type | Desktop, rack-mountable 1U |
Performance | Switching capacity : 176 Gbps ¦ Stacking bandwidth : 480 Gbps |
Capacity | IPv4 routes : 24000 ¦ NetFlow entries : 48000 ¦ Switched virtual
interfaces (SVIs) : 1000 |
MAC Address Table Size | 32000 entries |
Remote Management Protocol | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, SSH, CLI |
Power | AC 120/230 V ( 50/60 Hz ) |
Dimensions (WxDxH) | 17.5 in x 18.9 in x 1.8 in |
Weight | 30 lbs |
Technical Specifications |
Ports | 48 x 10/100/1000 (PoE+) |
RAM | 4 GB |
Flash Memory | 2 GB |
Features | Auto-negotiation, ARP support, trunking, VLAN support, auto-uplink
(auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support,
Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree
Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol
(DTP) support, Port Aggregation Protocol (PAgP) support, Trivial
File Transfer Protocol (TFTP) support, Access Control List (ACL)
support, Quality of Service (QoS), RADIUS support, Virtual Route
Forwarding-Lite (VRF-Lite), MLD snooping, Dynamic ARP Inspection
(DAI), PoE+, STP Root Guard, Uni-Directional Link Detection (UDLD),
Rapid Per-VLAN Spanning Tree Plus (PVRST+), IPv4 support, Shaped
Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote
Switch Port Analyzer (RSPAN), layer 3 load balancing, Energy
Efficient Ethernet, Cisco StackWise-480 technology, Cisco
StackPower technology, Flexible NetFlow (FNF) |
Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q,
IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad
(LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at |
