NR60CP CR-10 Alterantive Color Matching Spectrophotometer 0. 4s Measurement Time

Categories Spectrophotometer For Printing
Brand Name: 3nh
Model Number: NR60CP
Certification: CE / ROHS / TUV / ISO9001:2015
Place of Origin: P.R.China
MOQ: 1pc
Price: Negotiable
Payment Terms: T/T, L/C, Paypal,, Western Union
Supply Ability: 1000pcs per month
Delivery Time: 1 working day
Packaging Details: Packed in Alumimum box firstly, and then reinforced with carton box for outer packing
Illuminating/Viewing Geometry: 8° / d; CI E No. 15,GB/ T 3978
Light Source: LED sources
Sensor: Silicon photodiode array
Measuring Aperture: Φ8mm large area end-face; Φ4mm small area concave-convex end-face
Color Space: CI E L AB,XYZ,LCh,CI E RGB,CI E LUV
Observer: CI E 10°
Measurement Time: 0. 4s
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

NR60CP CR-10 Alterantive Color Matching Spectrophotometer 0. 4s Measurement Time


Product Description

1. Brief Introduction of Color Matching Spectrophotometer NR60CP

1) NR60CP cost-effective colorimeter has the advantages of high accuracy, powerful function and precise measurement which are warmly welcomed by customers.Color Measurement Is So Easy.

2) Advantages of Color Matching Spectrophotomter NR60CP

1. Switchable 8mm and 4mm measuring apertures, easy to measure concave surface.
2. Higher measurement stability and accuracy, Delta E ab<0.03.
3. More color spaces, various color indexes, extensive applicability.
4. Double locating: illuminating locating and cross locating
5. Configured with high-capacity rechargeable Li-ion battery
6. Built-in white plate parameters and physical white calibration board, easy to operate;
7. New integrating sphere optical path design, more stable measurement;
8. Measurement data can pass national metrology authentication.

3) Application for Color Matching Spectrophotomter NR60CP

Grating spectrophotometer can easily achieve color transferring , and be used as a precision instrument for color matching system. It's widely used in plastics, electronics, painting, ink, textile and garment, printing and dyeing, printing paper, automotive, medical, cosmetics and food industries, scientific research institutes, schools and laboratories.

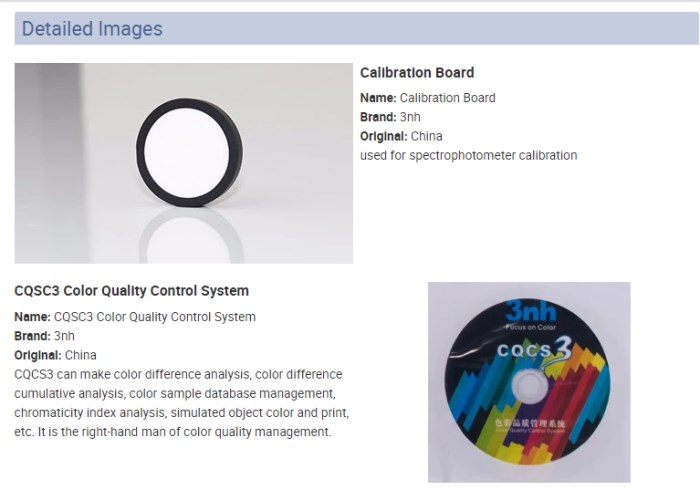

4. More pictures for Color Matching Spectrophotomter NR60CP


5.Specifications for Color Matching Spectrophotomter NR60CP

ModelNR60CP
Illuminating/Viewing Geometry8° / d; CI E No. 15,GB/ T 3978
Light SourceLED sources
SensorSilicon photodiode array
Measuring ApertureΦ8mm large area end-face; Φ4mm small area concave-convex end-face
Color SpaceCI E L AB,XYZ,LCh,CI E RGB,CI E LUV
Other Chromaticity DataWI ( E313,CI E, AATCC,Hunt er ),YI ( D1925, 313),Color Fastness, Staining Fastness, J PC79,BFD( 1. 5: 1),FMCI I
ObserverCI E 10°
IlluminantD65,A,C,D50,F2,F6,F7,F8,F10,F11,F12
Display DataColorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset,
Measurement Time0. 4s
RepeatabilityΔE* ab 0. 03(Average of 30 measurement of standard white plate within 5s)
Errors between each instrumentwithin Delta E*ab 0.2
Dimension(L*W*H)205*67*80mm
Weight500g
Batteryrechargeable lithium-ion battery 3. 7V @ 3200mAh
Lamp Life5 years, more than 1.6 million measurements
Display ScreenTFT 2.8 inch(16: 9)
InterfaceUSB/RS-232
Data Memory100 Standards, 20000 Samples
Operating Temperature0~40℃(32~104°F)
Storage temperature-20~50℃(-4~122°F)

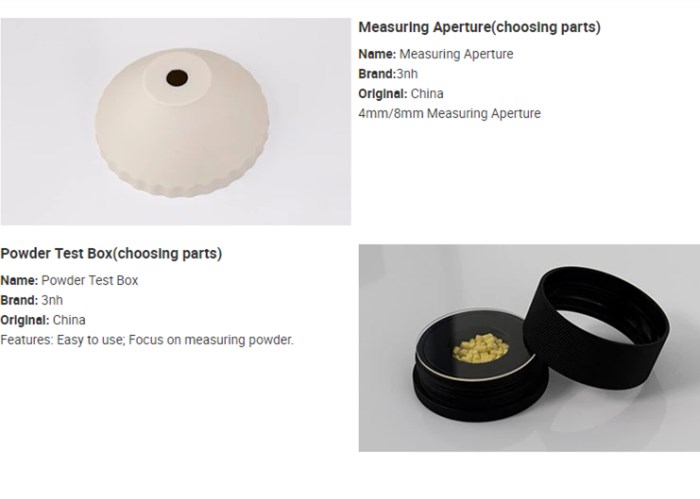

Optional Accessoryminiature thermal printer, powder test box

6. Certification for our Color Matching Spectrophotomter NR60CP


Packaging & Shipping
Packing Material : Alumimum box with carton box
Packing Size
45*23*38CM
Packing Weight:3KG
Delivery time: Within 3 working days after payment received.


Contact name: Ms. Suzie Xia

Tel: 0086-755-27198826 Ext: 601
Fax: 0086-755-27190609
Mobile: 0086-13510878132
Email: y@3nh.com
Skype: y@3nh.com
Wechat:15019429968
Website: www.3nh.com/en

FAQ
1: Q: Is your company accept customization?
A: We accept OEM/ ODM. Any color and any logo is welcome if placed at least 10pcs.
2: Q:Does your products have warranty?
A: YES, We offer 1 year warranty. Our policy: Is there any quality problem, First, send the defective machine to us and you bear the freight. Second, we send back to you free after fixed.
3: Q: After an order placed, when to deliver?
A: It depends on whether we are in stock or not. If we are, generally we can arrange shipment in 1 days after payment. If not, it will be decided by factory production.

4: Q: How to place an order?
A: a: send us an inquiry.
b: confirm your wanted products
c: confirm the price and freight and other details
d: finish the payment
e: we arrange the shipment
f: you got your products

Warranty

All color spectrophotometer and colorimeters have one year warranty from the purchase date. If it has something wrong during warranty, you can send it back to us. The buyer pays for the returning shipping cost and we will pay for the sending shipping cost.
