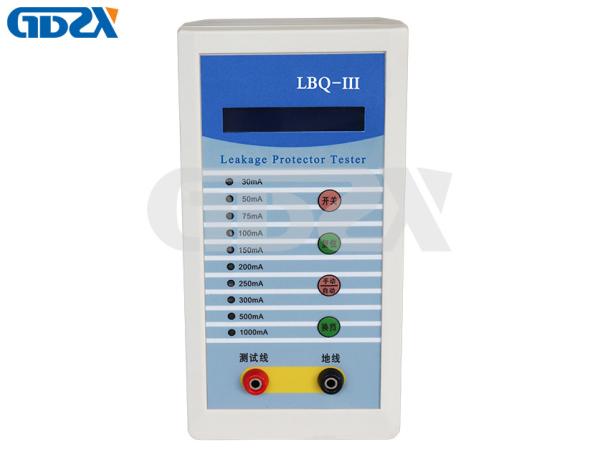

LBQ-III 1000mA Portable Leakage Current Test Equipment , ELCB Operation Testing Equipment

1000mA Portable Residual Current Device Test Equipment ELCB Tester

Introduction:

Leakage Protection switch Tester is well designed and manufactured for online measuring the leakage operating current, leakage non-operating current, leakage operating time of the leakage protector; adopt 16 bits blue screen, it is convenient and intuitive. High accuracy, small size, light weight, exquisite appearance, easy to carry, is an ideal tool for a variety of leakage protector in site or in laboratory testing.

Features:

1. Hand held type, small and easy to operate

2. Can measure single phase or three phase all kinds of leakage switches

3. Auto test leakage operating current

4. Directly test leakage operating time

5. LCD display, intuitive reading

Technique Parameter:

1.Rated voltage: AC220V,380V

2.Limited test voltage: below AC250V

3.Leakage current range: 30,50,75,100,150,200,250,300,500,1000mA

4.Leakage operating time range: 0-799ms

5.Leakage current accuracy: 1

6.Operating time display accuracy: 0.5%(±2d)

7.Working environment temperature: 0℃-40℃

8.Working environment relative humidity: ＜85%

9.Outside dimension: 195 length×101 width×42 height
