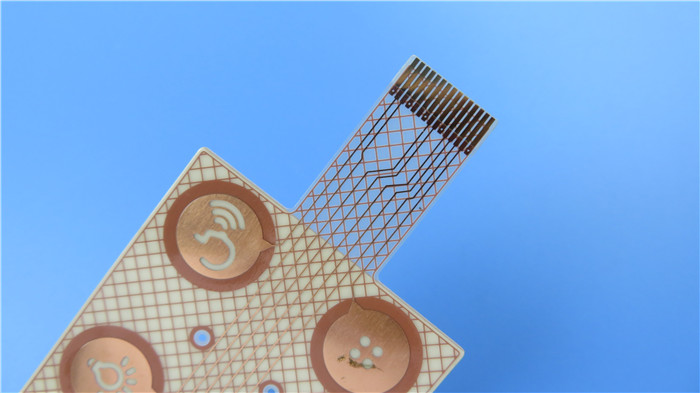

Flexible PCB Built on Transparent PET with Immersion Gold for Access Control Systems

(Flexible printed circuits are custom-made products, the picture and parameters shown are just for reference)

Specifications

PCB SIZE	134 x 50mm=1PCS
Base Material:	PET
Number of Layers	Double sided PCB
SMT	YES
Through Hole Components	no
LAYER STACKUP	Copper ------- 35um(1oz)
	Adhesive
	PET
	Adhesive
	Copper ------- 35um(1oz)
Minimum Trace and Space:	4mil/10mil
Minimum / Maximum Holes:	0.3mm/ 1.5mm
Final foil external:	1oz
Final foil internal:	0oz
Final height of PCB:	0.15mm ±0.05
Surface Finish	OSP + ENIG
Solder Mask Apply To:	TOP
Solder Mask Color:	Transparent Coverlay
CONTOUR/CUTTING	Punching
Side of Component Legend	NO
Colour of Component Legend	NO
VIA	None Plated Through Hole(NPTH)
FLAMIBILITY RATING	UL 94-V0 Approval MIN.
TEST	100% Electrical Test prior shipment
TYPE OF ARTWORK TO BE SUPPLIED	email file, Gerber RS-274-X, PCBDOC etc
SERVICE AREA	Worldwide, Globally.

FPC Capabilities 2021

No.	Specifications	Capabilities
1	Board Type	Single layer, Doulbe layer, Multilayer, Rigid-Flex
2	Base Material	PI, PET
3	Copper Weight	0.5oz, 1oz, 2oz
4	LED Maximum Size	250 x 5000mm
5	General Maximum Size	250 x 2000mm
6	Board Thickness	0.03mm-3.0mm
7	Thickness Tolerance	±0.03mm
8	Mininum Drill Hole	0.05mm
9	Maximum Drill Hole	6.5mm
10	Tolerance of Drill Hole	±0.025mm
11	Thickness of Hole Wall	≧ 8 um
12	Minimum Track/Gap of Single Layer Board	0.025/0.03mm
13	Minimum Track/Gap of Double Layer and Multilayer Board	0.03/0.040mm
14	Etching Tolerance	±0.02mm
15	Minimum Width of Silk Legend	≧ 0.125mm
16	Minimum Heigh of Silk Legend	≧0.75mm
17	Distance from Legend to Pad	≧0.15mm
18	Distance from Opening Solder Mask of Drill Coverlay to Track	≧0.03mm
19	Distance from Opening Solder Mask of Punching Coverlay to Track	≧0.03mm
20	Thickness of Immersion Nickel	100-300u"
21	Thickness of Immersion Gold	1-3u"
22	Thicnkess of Immersion Tin	150-400u"
23	Minimum Electrical Testing Pad	0.2mm
24	Minimum Tolerance of Outline(Normal Steel Mould Punch)	±0.1mm
25	Minimum Tolerance of Outline (Precision Steel Mould Punch)	±0.05mm
26	Mininum Radius of Bevel Angle (Outline)	0.2mm
27	Stiffner Material	PI, FR-4, 3M Adhesive, PET, Steel Sheet
28	RoHs	Yes
29	Solder Mask Colour	Yellow, White, Black, Green
