| Categories | Lithium Polymer Battery |
|---|---|
| Brand Name: | HZM |
| Model Number: | 501240 |
| Certification: | MSDS UN38.3 UL |
| Place of Origin: | China |
| MOQ: | 100 pieces |
| Price: | $0.42/piece |
| Payment Terms: | T/T, Western Union,PayPal,Credit card |
| Supply Ability: | 100000 pieces/ week |
| Delivery Time: | 2 work days |
| Packaging Details: | 100 pieces/ box |
| Weight: | 4.8g |
| Cycle life: | >500 Times |
| Dimension: | 5.0*12*40mm |
| OEM&ODM: | YES |
| Material: | Lithium Polymer |
| Company Info. |
| H.Z.M Electronics Co., Ltd |
| View Contact Details |
| Product List |

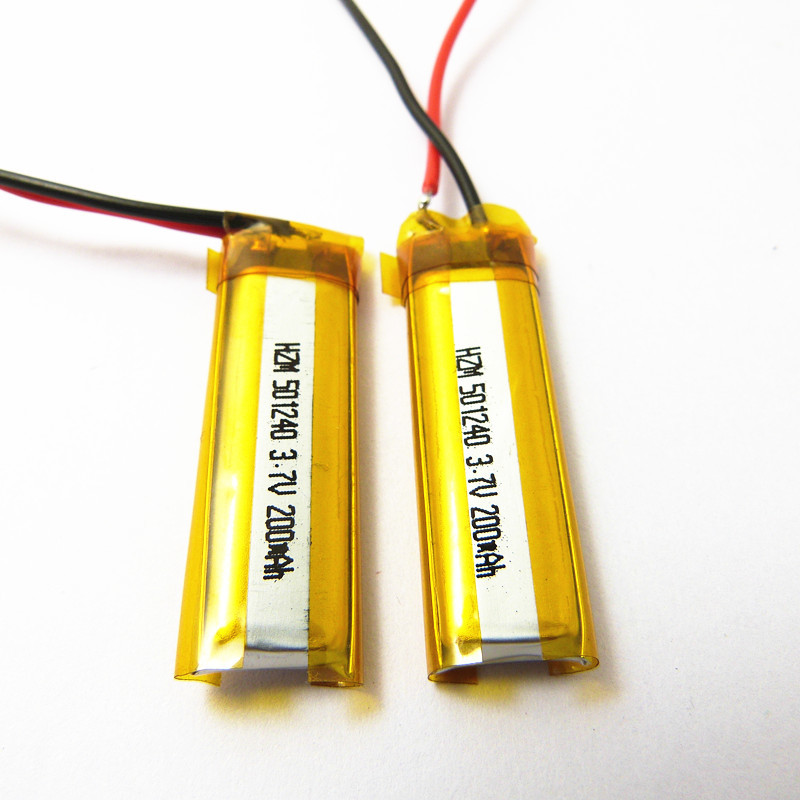

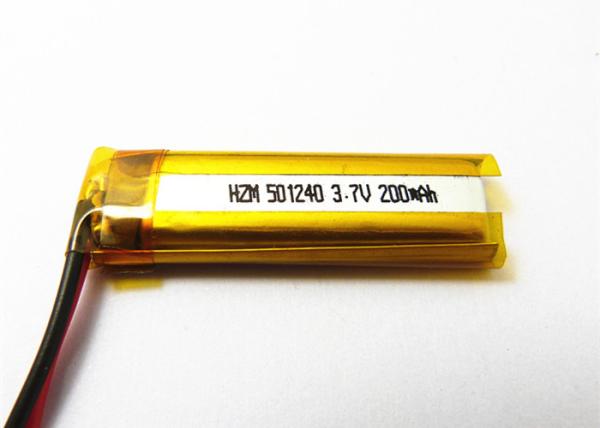

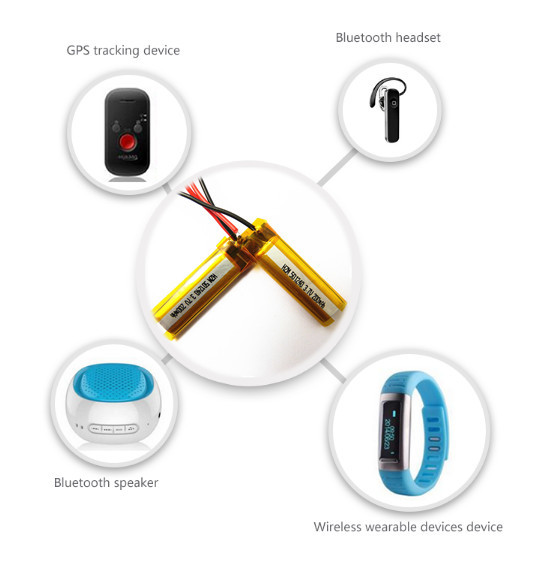

HZM Rechargeable 3.7v 200mah 501240 LiPo Battery For Wireless Wearable Devices
| No. | Item | Specifications |
| 1 | Model | 501240 |
| 2 | Size | 5.0*12*36mm (thickness*width*length) |
| 3 | Charge voltage | 4.2V |
| 4 | Nominal voltage | 3.7V |
| 5 | Nominal capacity | 200mAh |
| 6 | Charge current | Standard Charging:0.5C Rapid charge:1.0C |
| 7 | Standard Charging method | 0.5C(constant current)charge to 4.2V,then CV(constant voltage 4.2V)charge till charge current decline to≤0.05C |
| 8 | Charging time | Standard Charging:3.0hours(Ref.) Rapid charge:2hours(Ref.) |
| 9 | Max.charge current | 1C |
| 10 | Max.discharge current | constant current1C ,transient peak current 2C |
| 11 | Discharge cut-off voltage | 2.45V or 3.0V |
| 12 | Operating temperature | -20℃ to 60℃ |
| 13 | Storage temperature | 25℃ |
FAQ:
Q1. Can I have a sample order for battery?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 2 weeks for order quantity more than.
Q3. Do you have any MOQ limit for battery order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for battery?
A: Firstly let us know your requirements. Secondly We quote according to your requirements or our suggestions. Thirdly customer confirms the samples and places deposit for formal order. Fourthly, we arrange the production.
Q6. Is it OK to print my logo on battery product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, our products are produced in strict quality control system and the defective rate will be less than 0.2%. Secondly, during the guarantee period, we will send new battery with new order for small quantity. For defective batch products, we will change them and send new products to you or we can discuss the solution including re-call according to real situation.
|
