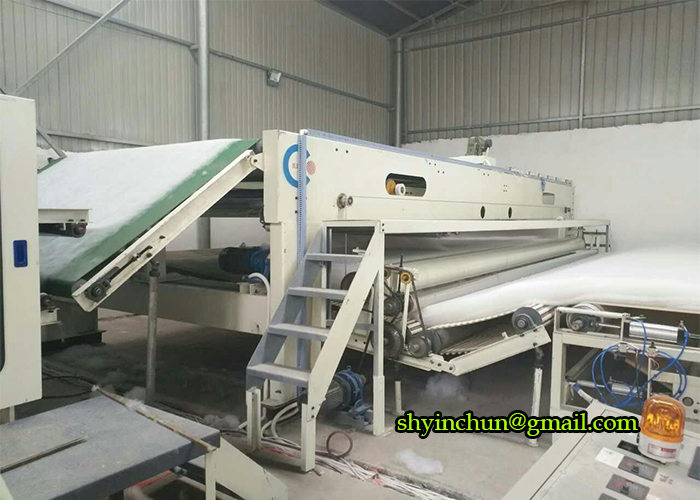

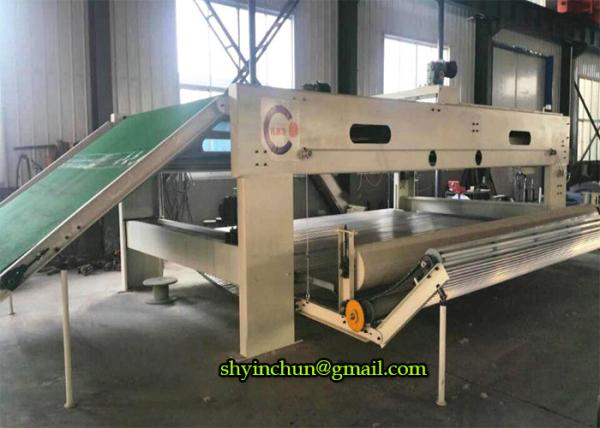

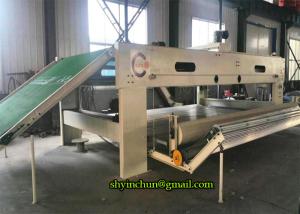

NON-WOVEN CROSS LAPPER MACHINE SUPPLIER FOR SALE

WE ARE A PROFESSIONAL NON-WOVEN LAPPER MACHINE SUPPLIER.

Usage:

Increase The Thickness And Width And Density Of Fiber Web, Change The Distribution Orientation And Improve Its Tension Ration Crosswise And Lengthways.

Technical Parameters:

Input Lattice Width: 1800-2800mm

Output Lattice Width: 2000-8000mm

Production Speed: 1-12m/Min

Input Lattice Speed: 0-40m/Min

Web GSM To Lap: 80-1000g/㎡

Output Speed: 0.4-8m/Min

Motor For Inclined Lattice: 1.5kw

Motor For Reciprocating Lattice: 2.2kw

Motor For Base Lattice: 1.5kw

Structure Features:

1. The Machine Is Of Heavy Structure With Super-Grade Steel Sheets At Two Sides And Profiled Steel Bar In The Middle As Support;

2. The Lapping Process Is Accurately Controlled By Frequency System;

3. Base Lattice Is Made Of Plastic, And Others Are Wooden-Make;

4. To Reduce Grease Spill And Noise, The Transmission Chain Is Placed And Running In Oil Channel;

Qingdao Drde Machinery Technology Co., Ltd  was established in 2002, for the past 10 years, we have made huge progress in the production of water jet loom of different models. Up to now, we have sold nearly 40,000 sets water jet loom in domestic market, enoying great reputation; in foreign market, we have exported our machine to India and Russia, good feedback too. We strongly believe that only quality machine will help our users to win their competition, so CNC machining center and phosphating process have been introduced to guarantee the precision of spare parts and rust-resistant. We supply high speed water jet loom with plain shedding at different width. You are welcomed to contact us for more information.
