High Performance RCD Loop Tester Multimeter USB Interface High Accuracy

RCD Loop Resistance Tester Multimeter With USB Interface for GFCI

English User Manual:https://drive.google.com/open?id=1sf9LsOu_x0tWCr9Yo0qIbZqYqJNVH2i4

Features of RCD Loop Resistance Tester

• Trip-out current measurement
• Trip-out time measurement
• Contact voltage measurement
• Loop resistance measurement
• AC voltage measurement :0V ---- 440V
• Frequency measurement: DC 45Hz----65Hz

Product Description of RCD Loop Resistance Tester

PM5910 is widely used in Electricity, Aarchitect, Electrical Installation area etc. It complys with IEC/EN 61010-1 1000V CAT II, 600V CAT III safety standards. Max common mode voltage: 600V AC RMS. High speed Microprocess ICs to make sure its reliability . stability and accuracy.It is the ideal tool for electrical inspection and repair. The RCD Tester brings the latest technology into an instrument which is compact, firm, durable, simple to use and convenient to carry. It can measure trip-out current, trip-out time, loop resistance, and online voltage, frequency measurement etc.

• Multiplying power of measurement current : 0.5, 1, 5.
• Standar/Selective type current measurement level :10 30 100 300 500mA
• 1000 groups of test results can be stored
• Data stored in the host machine can be transmitted to a PC via a USB 2.0 interface
• Comply with IEC/EN 61010-1 1000V CAT Ⅱ, 600V CAT Ⅲ Safety Standards
• Maximum common mode voltage: 600V AC RMS
• Display method: it is displayed on the LCD with maximum value at 6000
• Measuring range selection: auto/manual measuring range
• Frequency detection: auto

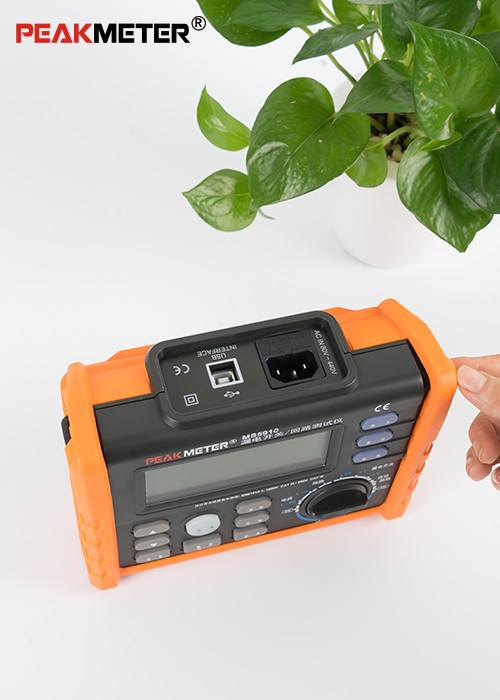

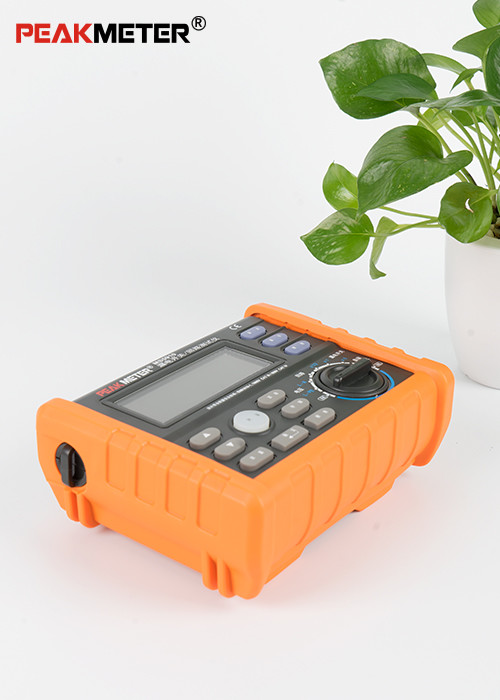

Detailed Images of RCD Loop Resistance Tester
