| Categories | GPON ONU Router |
|---|---|
| Brand Name: | NATYWISH |
| Model Number: | NTW-G17400HW |
| Certification: | CE, FCC, ROHS |
| Place of Origin: | China |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 8000pcs |
| Delivery Time: | 5- 15 working days |
| Packaging Details: | 1pcs / box. 50pcs / carton |
| Device: | GPON ONU / GPON ONT |
| Access network: | FTTH, FTTB, FTTC, FTTO |
| Fiber Type: | singlemode |
| Wavelength: | 1310nm / 1490nm |
| PON Connector: | SC / PC |
| Material: | plastic |

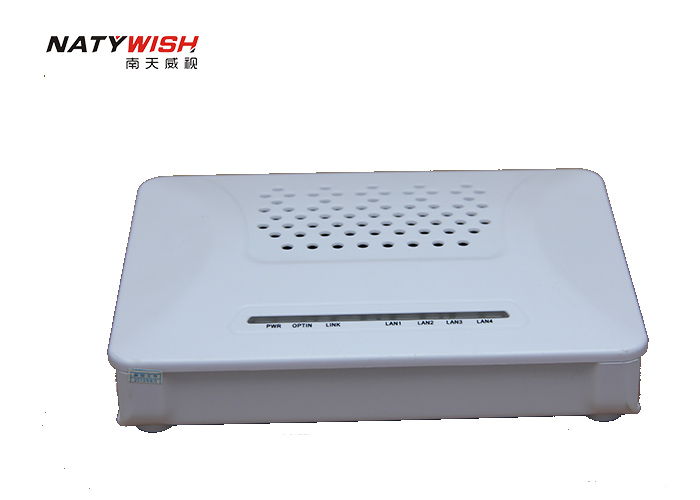

4FE+ WIFI GPON ONU with one GPON port , 4* 10/100M RJ45 LAN Ports+ WIFI FTTX router device
--NTW-G17400HW
Product Overview
NTW-G17400HW ONU series is designed by NATYWISH, it provides 1 GPON port, 4*10/100BASE-T ports and support WIFI function, which faces to FTTH/FTTO user broadband access.PON port supports 1000 Base-PX10/PX20 standard,splitting ratio:1:64,transmission distance 20km.It meets ITU - G.984 GPON standard, adopts mature,stable and cost-effective gigabit GPON technology,and integrates Gigabit Ethernet switching, WDM and HFC optical receiving technology,with the feature of high reliable ,easy to manage and QoS guarantee.
Product Feature
1. Meet ITU - G.984 GPON standard.
2. Transmission distance:20km.
3. Support data encryption, multicast, VLAN etc.
4. Support DBA.
5. Support automatic discovery / link detection / remote upgrade.
8. VLAN partitioning of ports and protocols.
7. Support broadcast storm suppression .
8. Different data ports are isolated from each other.
9. Support ACL,flexible manage different types of access data.
10. SNMP protocol,EMS unified network management, easy installation and maintenance.
11. provide alarm function,easy fault diagnosis.
Technical Parameter
Specification | Description |
Uplink port | 1 GPON port,SC,single mode,single fiber, uplink port 1.25Gbps, downlink port 2.5Gbps, uplink snf down unsymmetrical. |
Wavelength | Tx 1310nmRx1490nm. |
Optical connector | SC |
Downlink data port | 4*10/100Mbps self-adaption LAN ports. |
| Indicator light | 7 indicator lights, use to indicate the situation of power supply,PON port and network port. |
| Power supply | ＋15V/1.5A,external AC-DC power adapter. |
Power | ≤10W. |
| Working environment | Working temperature:-5～+55℃,working humidity:10～90%(non-condensing). |
| Storage environment | Storage temperature:-30～+60℃,storage humidity:10～90%(non-condensing). |
Size | 185mm×122mm×33mm. |
Weight | 0.3Kg. |
WIFI Service
| Wifi Parameter | ||
| Model | Working mode | Routing and bridge mode. |
| Performance index | Speed rate | IEEE 802.11b: 11Mbps . |
Frequency range | 2.412 ~ 2.472 GHz. | |
| Channel | 13 channels.Can be configured to the United States, Canada, Europe, Japan, China and other regional norms. | |
| Modulation mode | DSSS , CCK and OFDM. | |
| Coding scheme | BPSK, QPSK, 16QAM and 64QAM. | |
| RF Receiving sensitivity | 802.11b: | |
| RF maximum output power | 802.11b: | |
| Encryption mode | 802.11i security: WEP-64/128, TKIP (WPA-PSK) and AES (WPA2-PSK) | |
Order information
Model | Description |
NTW-E174E1W | 4+WIFI EPON ONU |
|
